Reznor ACUB Parts Manuals - Manual (Page 15)

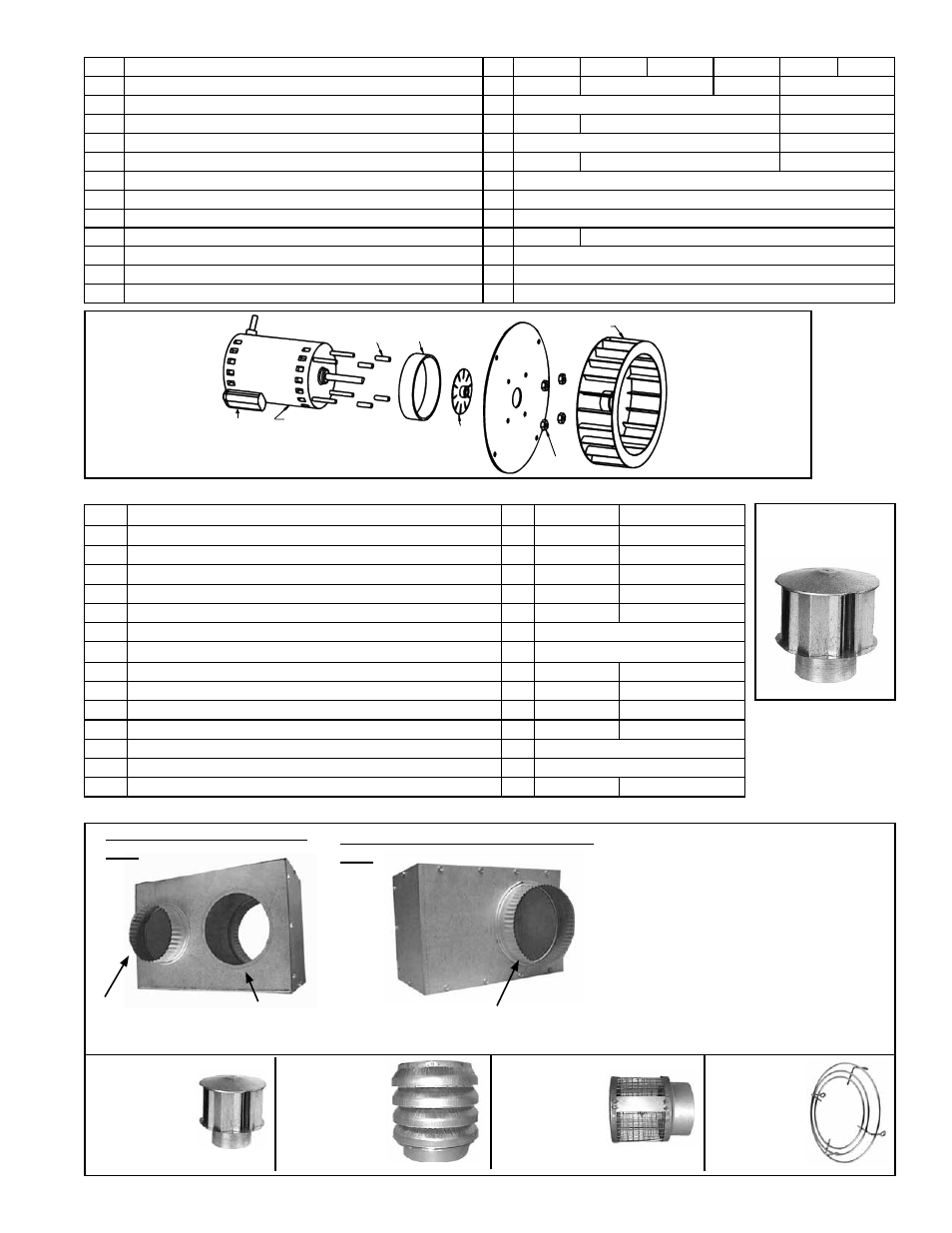

Form P-CAUA, P/N 271166 R2, Page 15
*115D
115A
*115E
115F
115H
115G
115C
(Centered with hub
away from motor)
115B
CODE 115 -
Venter Motor
and Wheel
Assembly
Vent Cap and Vent/Combustion Air Kits (for separated combustion installation)
CODE 120 -
Vent Cap
CODES 121 and 122 - Concentric Adapter Assembly for Separated-Combustion
CODE 121B -
Exhaust Cap
for Vertical
Separated-
Combustion
CODE 121C -
Inlet Air Cap
for Vertical
Separated-
Combustion
CODE 122B -
Exhaust Cap
for Horizontal
Separated-
Combustion
CODE 122C -
Inlet Air
Guard for
Horizontal
Separated-
Combustion
Collar for attaching
the combustion air
pipe from the heater
Opening for vent pipe from
the heater. The vent pipe
extends through the box.
Important NOTE: Concentric adapter
boxes manufactured prior to 2/01 had a
collar on the “heater connection side” to
attach the vent pipe. There was a factory-
installed length of vent pipe through the
box. If replacing a concentric adapter box
manufactured prior to 2/01, the field-sup-
plied vent pipe must be extended through
the new box. Seal the opening around the
vent pipe as it extends into the box.
Collar for attaching the outside portion of the combustion
air pipe (the vent pipe runs concentric through the
outside portion of the combustion air pipe)
View of Heater Connection
Side
View of Vent Terminal Connection
Side
Code Description Qty 150,200 250,300,350,400
120 Vent Cap (same as Option CC1) 1 111849, 5” 111850, 6”
121 Vertical Vent/Combustion Air Kit (same as Option CC2) 1 205895 205896
121A Concentric Adapter Assembly 1 205884 205885
121B Exhaust Cap Assembly 1 110051, 4” 110052, 5”
121C Inlet Air Cap Assembly 1 155635, 6” 53330, 8”
121D Concentric Adapter Bracket 2 207232
121E Clear Sealant, 3 oz tube, D.C. #732 1 53335
122 Horizontal Vent/Combustion Air Kit (same as Option CC6) 1 205882 205883
122A Concentric Adapter Assembly 1 205884 205885
122B Exhaust Cap Assembly 1 155096 53316
122C Inlet Guard Assembly 1 151755 124940
122D #10-16 x 1/2” TEKS (self-drilling screws for attaching 122C) 4 37661
122E Concentric Adapter Bracket 2 207232
122F Clear Sealant, 3 oz tube, D.C. #732 1 53335 53335
Code Description Qty 150 200 250 300 350 400
113 Venter Housing Assy (housing, collar, and static pressure tap) 1 164539 164540 164541 164697
114 Venter Gasket (not illustrated) 1 155650 155649
115 Venter Motor and Wheel Assy (includes 1154A-H) 1 174010 162895 164542
115A Venter Motor, Magnetek, with capacitor, P/N 101917 1 161416, #JE1F025N 205748, #JE1J014
115B Venter Motor Capacitor ONLY 1 163894 101917 not available
115C Fan, PM Motor Co., 2.25” dia x 3/8” bore 1 141570
115D Spirol Spacer, #3 x 3/4” long 4 97721 (*discontinued use as of 10/07)
115E Venter Motor Support Ring 1 125346 (*width dimension changed as of 10/07)
115F Venter Motor Plate 1 151515 160930
115G Kep Nut, #8-32 4 31522
115H Wheel, 2” x 6-1/4” dia, 3/8” bore 1 195666
116 Venter Motor Plate Gasket 1 155652
* See notes above.
