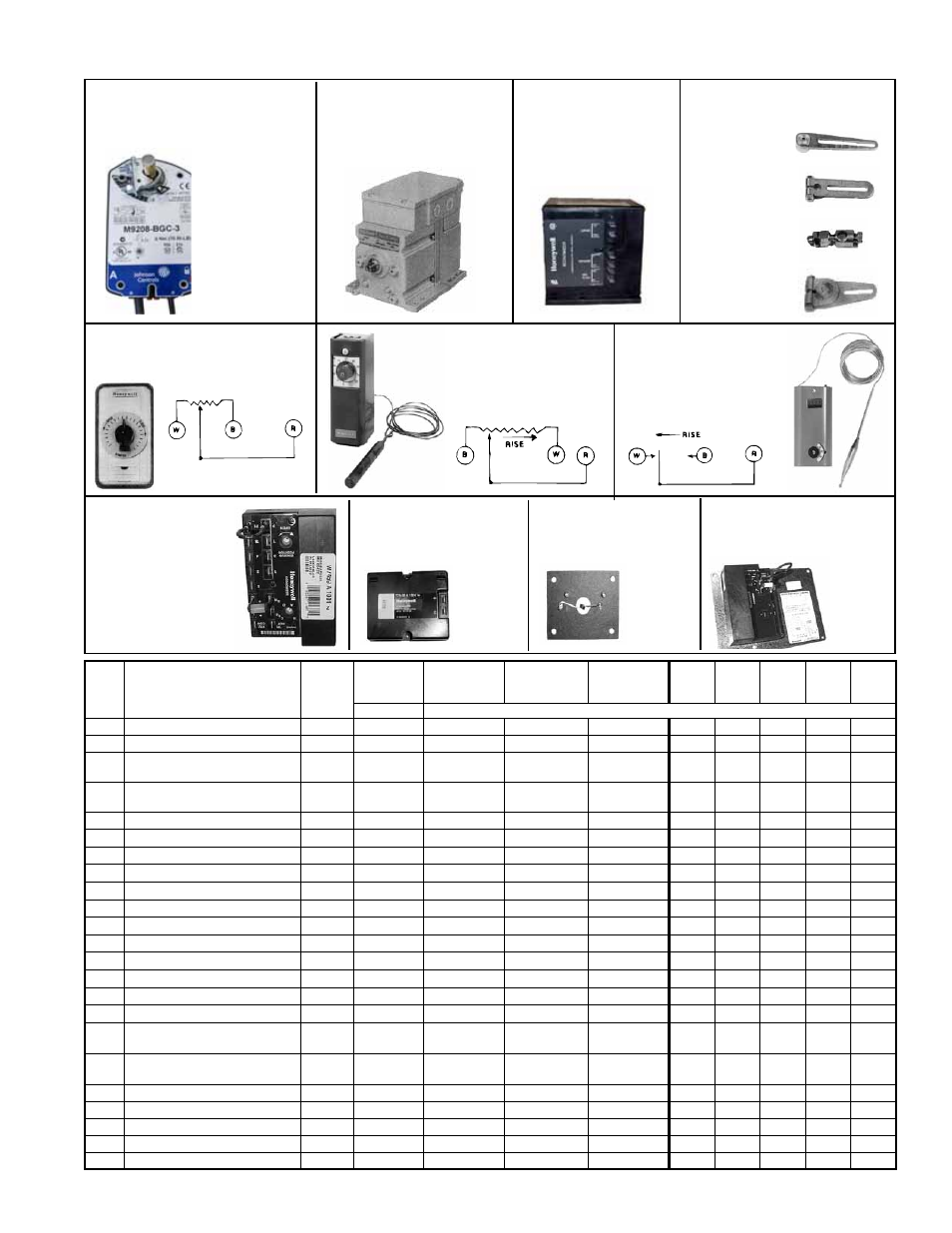

Form P-CAUA, P/N 271166 R2, Page 19
CODE 200 - Potentiometer,
M/H 112894FA, P/N 16110
CODE 201 - Mixed
Air Controller,
M/H T991-1004,
P/N 16109
CODE 202 - Outside
Air Controller,
J/C#A19AAF-120,
P/N 126170
Mixing Box Damper Controls - See controls by option code (bottom of page). Transformer is on page 3.
CODE 204 - Logic
Module, M/H
#W7459A 1001,
P/N 196289
CODE 205 - Enthalpy
Sensor, M/H C7400A
1004, P/N 196290
CODE 206 - Mixed Air
Sensor, M/H C7150B
1004 P/N 196291
CODE 207 - Electronic
Enthalpy Control, M/H
H705A1003, P/N 177230
CODE 193A - Damper Motor
for 2-Position Damper (open/
closed), P/N 209351
CODE 193B - Modulating
Damper Motor, M/H
M9185AE1019 with two
end switches, P/N 115682
Damper Linkage
CODE 197,
P/N12636
CODE 198,
P/N 116209
If replacing
previously
used motor
P/N 66376,
order
Replacement
Kit,
P/N 209423.
CODE 193C -
Modulating Damper
Motor,
M/H #M7415A-1006,
P/N 196302
CODE 195,
P/N 12635
CODE 196,
P/N 66277
Code Description P/N
GB2 GB2 GB3 GB4
GC1A
and
GC1B
GC3A
GC3B
with
GB4
GC3C
with
GB2
GC4
with
GB2
with GA1-3 with GA4-9
191 Electrical Enclosure 171770 X X X X
192 Enclosure Cover 171771 X X X X
193A 2-Position Damper Motor, J/C
M9206-BGB-201
209351 X X
193B Modulating Damper Motor,
#M9175D1014 (2 end switches) 115682
X
193C Modulating Damper Motor 196302 X
194A Damper Rod, 1/4 x 9-1/2” Lg 114467 X (GA4,5,6,7) X (GA4,5,6,7)
194B Damper Rod, 1/4 x 11” Lg 14226 X (GA1) X (GA4,5,6,7)
194C Damper Rod, 1/4 x 19” Lg 171773 X (GA4,6,8,9) X (GA4,6,8,9)
194D Damper Rod, 1/4 x 22” Lg 26299 X (GA2,3) X (GA4,6,8,9) X (GA5,7,8,9) X (GA5,7,8,9)
194E Damper Rod, 1/4 x 24” Lg 171774 X (GA5,7,8,9)
195 Damper Arm, #26026 12635 (3) X (3) X
196 Crank Arm, W/R #135-0002 66277 X X
197 Ball and Socket, M/H #27518 12636 (2) X (4) X (4) X (4) X
198 Crank Arm M/H #221455A 116209 X X
199 Damper Arm Adjustment Plate 115687 X X X
200 Potentiometer, M/H #112894FA 16110 X
201 Mixed Air Controller, M/H
#T991A-1004
16109 X
202 Outdoor Air Controller, J/C
#A19AAF-120
126170 X
203 Bulb holder 171772 X X
204 Logic Module 196289 X
205 Enthalpy Sensor 196290 X
206 Mixed Air Sensor 196291 X X
207 Electronic Enthalpy Control 177230 X
(in
Option
GC3C)
(in
Option
GC3C)
(in
Option
GC3B)
(in Option GC3B)
