Form P-CAUA, P/N 271166 R2, Page 14
103
104
161 - Tube Clamp Support (See page 17.)
108
102
110
109
100
101
113
107
Heat
Exchanger
Assy
Burner Box
Blower Mount
Blower
Blower Electrical
Box
(direct drive
blower motor)
Control
Panel

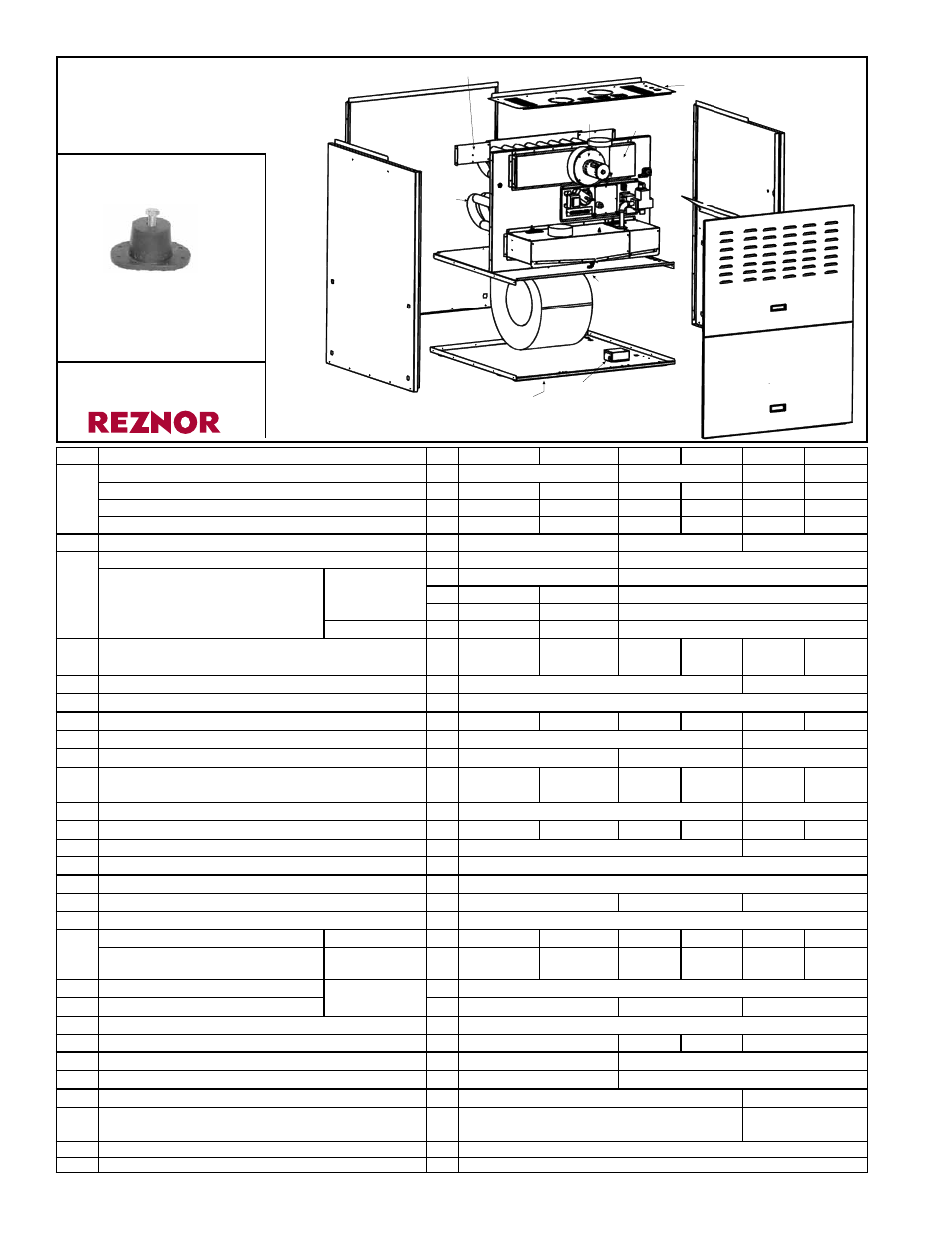

CAUA Cabinet Parts
(white gloss finish) and
Venter Assembly
®
CODE 112A, Reznor
Label, P/N 196690
CODE 111A - Vibration
Isolator Pad
CODE 111, Vibration
Isolator Kit, same as
Option PC4, includes 4
pads.
Code Description Qty 150 200 250 300 350 400
100
Bottom Panel 1 160133 160134 -- --
Bottom Panel - Front Half 1 -- -- -- -- 170198
Bottom Panel - Rear Half (unit without inlet base) 1 -- -- -- -- 170199 170199
Bottom Panel - Rear Half (unit with inlet base) 1 -- -- -- -- 176361 176361
100A Insulation for Bottom Panel, CODE 100 1 177624 177627 177628
101
Cabinet Supports (legs) - with direct drive motor 2 161155 161156
Cabinet Supports (legs) - with belt
drive motor
1/3 - 1.5HP
1 161155 161156
1 195177-frnt 195179-frnt 195247-front
1 195178-rear 195180-rear 195248-rear
2-5HP 3 -- -- 161156
102 Left Side Panel Assy (includes panel, insulation, hole
plug, and air deflector)
1 163183 163184 163451 163452 163453 164516
102A Left Side Panel only 1 160125 160126
102B 5/8” Hole Plug, Heyco #DP625 1 111096
102C Air Deflector 1 164701 164700 164701 165017 164701 164700
102D Insulation in Left Side Panel Assy 1 177622 177626
103 Rear Panel Assy (includes panel and insulation) 1 163170 163171 163172
104 Right Side Panel Assy (includes panel, insulation,
bushing, hole plug, and air deflector)
1 175274 175275 175276 175277 175278 175279
104A Right Side Panel only 1 160123 160124
104B Air Deflector 1 164701 164700 164701 165017 164701 164700
104C Insulation in Right Side Panel Assy 1 ea 177622 / 160896 177626 / 163173
104D 1/2” Bushing 1 29871
104E 5/8” Hole Plug, Heyco #DP625 1 111096
105 Tube for Limit Control Capillary (not illustrated) 1 165030, 51” lg 165031, 55-1/2” lg 165032, 62-5/8” lg
106 Limit Bracket (See limit control, CODE 28.) 1 141676
107
Flue Wrapper Assy including gaskets Aluminized 1 160186 160187 160188 160189 160190 160191
Flue Wrapper Assy including gaskets
and condensate drain connection
409SS
(Opt AD4) 1
258960 258961 258962 258963 258964 258965
107A Top/Bottom Gaskets for Code 107 Select match to
Code 107 material
2 147651 for Aluminized Code 107; 258994 for 409SS Code 107
107B Side Gasket for Code 107 2 161160 Alum;258995 SS 161161A;258996SS 161162A;258997SS
107C Hose Barb on Code 107 SS Flue Wrapper Assy 1 258998, Brass, 1/4” x 1/4” NPT male
108 Top Panel 1 160130 160131 160194 160132
109 Btm Access Door Assy (insulated door w/handle) 1 165046 165047
110 Top Access Door Assy (door panel with handle) 1 165048 165049
111 Vibration Isolator Kit (same as Option PC4) 1 166769 166770
111A Vibration Isolator (black isolator pad for under each
corner), Kinetics Model RCB
4 166720 #120 (orange marking)
166721, #220
(green marking)
112A Reznor Label 1 196690
112B Cabinet Touchup Paint 1 201805, 11 oz spray can, white
