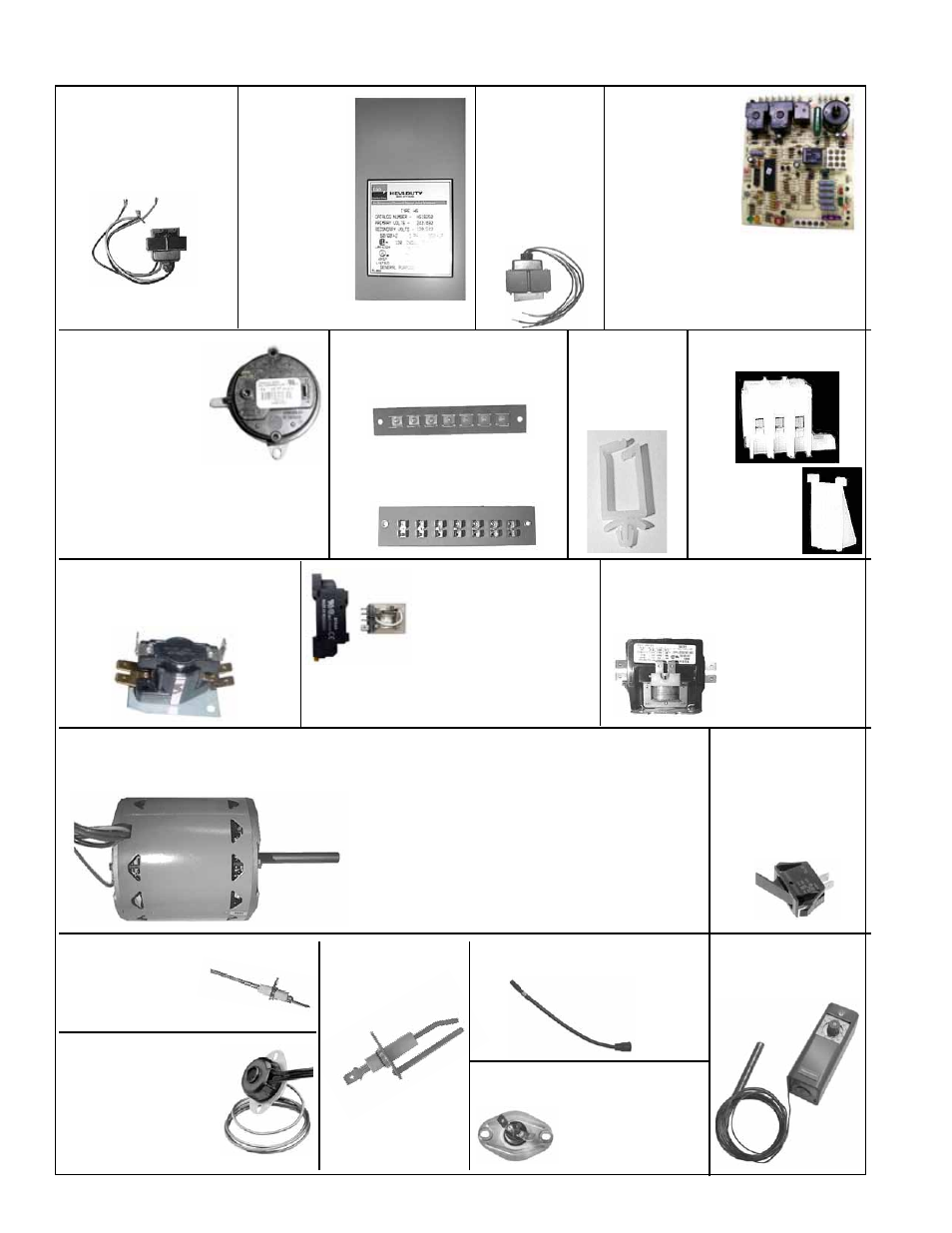

Form P-CAUA, P/N 271166 R2, Page 4
CODE 18 - 1 phase Contactor,
Products Unlimited #3100-20V380,
20 amp, 2 pole, 1 phase, P/N 164791
CODE 26 - Door
Interlock Switch,
Honeywell Micro
Switch #1DM18,
P/N 116023
CODE 1 - Transformer,
Products Unlimited
#400-09V28CH80,
40VA, 208/230V to 24V,
P/N 164328
CODE 2 -
Transformer,
Hevi-Duty
#HS1B250,
480/240,
P/N 166740
CODE 3 -
Transformer,
Hevi-Duty
#HS10B250,
575/240,
P/N 113556
Transformer Bracket,
P/N 164518
CODE 5 -
Ignition Board,
230V, UTEC
1097-211, P/N
195573
CODE 6 -
Pressure Switch,
.75”w.c., Red
Label P/N 203933
(replaces 164327
and 173317)
CODE 7 - Pressure Switch for
High Altitude, .70”w.c., Pink Label,
P/N 205446
(replaces 164793, 173318, 207171)
CODE 9 - 7 Pole Unit Terminal
Strip Control Panel, P/N 164544
CODE 8 - Thermostat Terminal
Strip, Doran #5959-7,
P/N 164545
CODE 4 -
Transformer,
208/240V to
24V, 40 VA,
BE21539001,
(used in Optional
Mixing Box),
P/N 103497
CODE 10 -
Locking Wire
Saddle, LWS-
A-3-01,
P/N 123606
CODE 11 - Terminal
Block, KT3, P/N 144972
CODE 12 -
End Mounting
Adapter, KAD,
P/N 144973
CODE 23 - Capacitor Clamp, P/N 204002
CODE 24 - Capacitor Clamp Felt, AO Smith
#166A729H01, P/N 171529
CODE 25 - Capacitor Boot, Syntex # M-78,
P/N 103182
CODE 22 - Blower Motor with Capacitor,
Direct Drive, 1 HP, 3 speed, A.O.Smith
#98AC006 , P/N 164329
3 phase,
Contactor,
Hartland HCC-
3XUO1CY,
P/N 119627
When replacing a RAM 3MC4-06
(Serial No. Code 76) or J/C G822KCC-
5401D (Serial No. Code 77) on a
unit manufactured before 3/09, order
replacement kit, P/N 258251.
NOTE: For optional belt-drive motors and
starters, see pages 6-8.
CODE 22A - Replacement Capacitor only,
P/N 205150
CODE 15 - Time Delay Relay,
P/N 136758 (used with belt
drive to delay motor start)
CODE 16 - Relay, DPDT,
P/N 211411 and Relay
Socket, P/N 211415
Electrical Components (cont’d)
CODE 28 - Manual
Reset Limit Control,
Thermodisc #10H11,
P/N 148588 (60”
capillary, 270 o F) and
P/N 164792 (54”
capillary, 300 o F)
CODE 29 - Spark
Electrode, Channel
Products #1659-
92, P/N 147166
CODE 31 - Ignition Cable, RAM
#HV96009, 18”, P/N 148085
CODE 32 - Flame Rollout Switch,
TOD #35TX46
CODE 30 - Spark
Electrode Boot,
P/N 156032
225 o F, P/N 121275
275 o F, P/N 112752
CODE 27 - Flame
Sensor, Channel
Products 1259-
85, P/N 147165
CODE 33 -
Ductstat,
P/N 41700
To replace relay P/N 14747 or 103317,
order Replacement Kit P/N 263527
