Form P-CAUA, P/N 271166 R2, Page 20

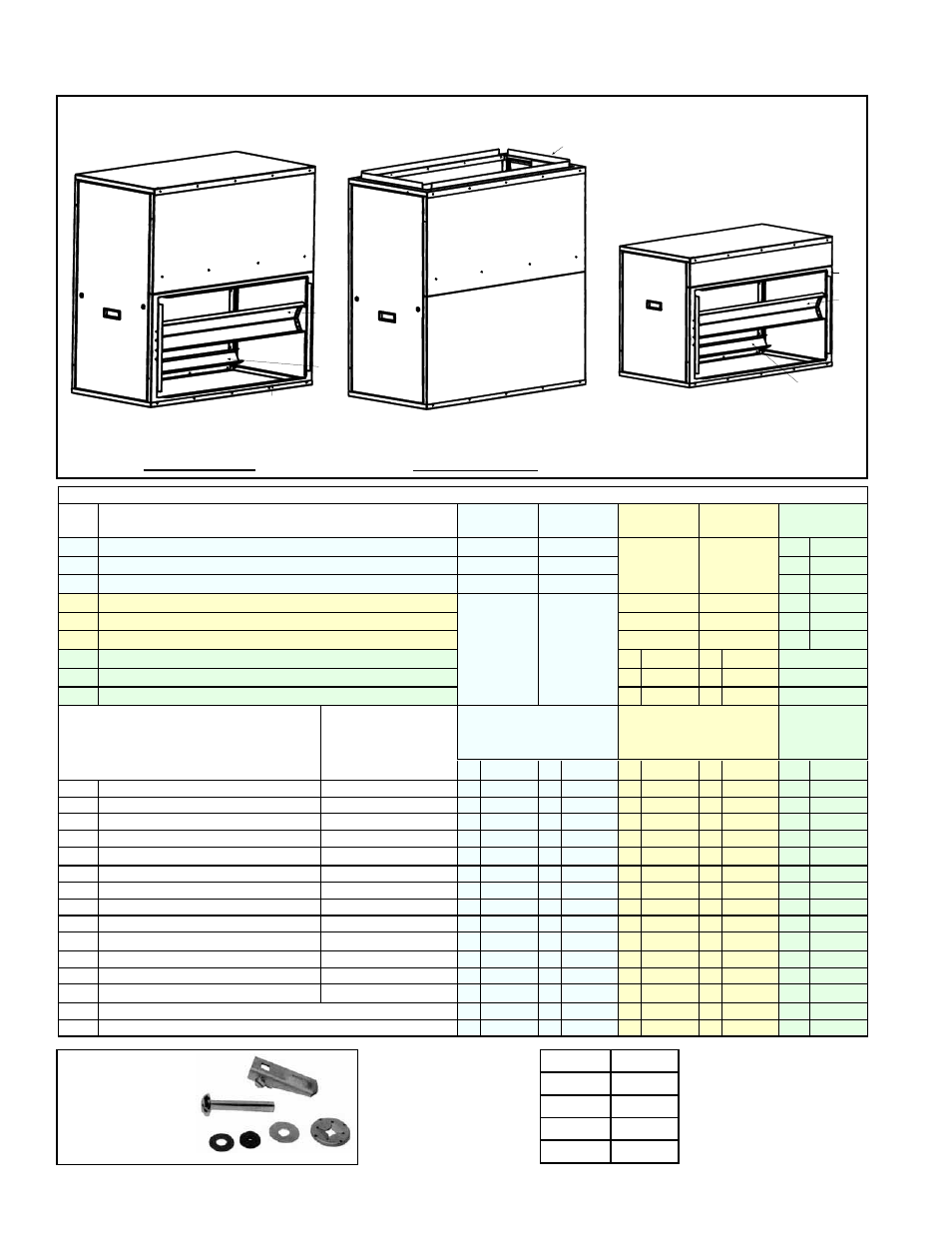

Side and Rear Return Air Filter Cabinets
If a complete cabinet package is ordered, cabinet is shipped unassembled. Assembly is required.
224
222
223
219
220
227
226
221
223
222
221
224
222
224
220
219
221
227
226
CODES 210 - 215
Options CW4, CW5, CW6, CW7, CW11, and CW12
CODES 216 - 218
Options CW8, CW9, and CW10
Filter Cabinet Options CW 4, 5,
6, 7, 12, and 11 assembled with
a Horizontal Inlet
Filter Cabinet Options CW 4, 5,
6, 7, 12, and 11 assembled with
a Vertical (up) Inlet
Filter Cabinet Options
CW 8, 9, and 10 may
only be assembled
with a Horizontal Inlet
*Filter
Dimensions
Code 234 -
Replacement
Door Latch Kit,
P/N 112974
Filter Cabinet Packages and Components by Option (order parts by P/N; not Option No.)
Code
Side and Rear Filter Cabinets for Model CAUA
150/200/
250/300
350/400 150/200
250/300/
350/400
150/200
210 Option CW4 (with 2” pleated filters) - Pkg P/N 166153 166156
211 Option CW5 (with 2” permanent filters) - Pkg P/N 166154 166157
212 Option CW6 (for field-supplied 2” filters) - Pkg P/N 166155 166158
213 Option CW7 (with 2” pleated filters) - Pkg P/N 166153 166156
214 Option CW12 (with 2” permanent filters) - Pkg P/N 166154 166157
215 Option CW11 (for field-supplied 2” filters) - Pkg P/N 166155 166158
216 Option CW8 (with 2” pleated filters) - Pkg P/N 166159
217 Option CW9 (with 2” permanent filters) - Pkg P/N 166160
218 Option CW10 (for field-supplied 2” filters) - Pkg P/N 166161
Components
Component Usage
by Filter Cabinet Inlet
Location (CW 8, 9, 10
is horizontal only)
Filter Cabinet Attaches to
Side of Heater - Horizontal or
Vertical Inlet
Filter Cabinet Attaches to
Rear of Heater - Horizontal or
Vertical Inlet
Attaches to
Side or Rear -
Horizontal Inlet
Only
Qty P/N Qty P/N Qty P/N Qty P/N Qty P/N
219 Bottom Panel Vertical & Horizontal 1 160925 1 160926 1 160925 1 160926 1 164537
220 Side Panel Vertical & Horizontal 1 160634 1 160634 1 160634 1 160634 1 164536
221 Rear or Top Inlet Panel (w/duct flange) Vertical & Horizontal 1 160927 1 164520 1 160927 1 164520 1 164533
222 Top Panel or Bottom Rear Panel Vertical & Horizontal 1 160630 1 160631 1 160630 1 160631 1 164537
223 Top Rear Panel Vertical & Horizontal 1 160632 1 160633 1 160632 1 160633 --
224 Door Panel Assy (w/handle and latch) Vertical & Horizontal 1 165033 1 165033 1 165033 1 165033 1 166148
225 Door Channel Vertical & Horizontal 2 160635 2 160635 2 160635 2 160635 1 164535
226 Filter Support Horizontal Inlet only 2 160636 2 165018 2 160636 2 165018 2 164704
227 Filter Support Channel Horizontal Inlet only 2 160923 2 160924 2 160923 2 160924 2 164532
228 Filter Support Vertical Inlet Only 2 164524 2 164525 2 164524 2 164525 --
229 Filter Channel Assy Vertical & Horizontal 1 165035 1 165036 1 165035 1 165036 1 166147
230 Sheetmetal Screws #10-32 x 1/2” long Vertical & Horizontal 54 113275 54 113275 54 113275 54 113275 20 113275
231 Corner Braces for CW 4, 5, 6, 7, 12, 11 Vertical & Horizontal 2 166151 2 166151 2 166151 2 166151 --
232 2” Permanent Filters* in Options CW5, CW12, and CW9 4 104103 6 104103 4 104103 6 104103 4 114325
233 2” Pleated Filters* in Options CW4, CW7, and CW8 4 104109 6 104109 4 104109 6 104109 2 114324
P/N Size
104103 16 x 16
114325 12 x 16
104109 16 x 16
114324 12 x 32
