Unconditioned Spaces
All duct work passing through unconditioned space must
be properly insulated to minimize duct losses and prevent
condensation. Use insulation with an outer vapor barrier.
Refer to local codes for insulation material requirements.
Acoustical Duct Work
Certain installations may require the use of acoustical
lining inside the supply duct work.
• Acoustical insulation must be in accordance with the
current revision of the Sheet Metal and Air Conditioning
Contractors National Association (SMACNA) application
standard for duct liners.
• Duct lining must be UL classified batts or blankets with
a fire hazard classification of FHC-25/50 or less.
• Fiber duct work may be used in place of internal duct
liners if the fiber duct work is in accordance with the
current revision of the SMACNA construction standard
on fibrous glass ducts. Fibrous duct work and internal
acoustical lining must be NFPA Class 1 air ducts when
tested per UL Standard 181 for Class 1 ducts.
uNIt INStallatIoN
Packaging Removal
1. Remove top crate brackets and wooden cap assembly
from top of unit (Figure 2).
2. Remove lower crate brackets, four side skids, and
two end skids from each side of unit. NotE: DO NOT
remove base rails from unit.
3. Remove crate brackets (Figure 3) securing four bottom
boards to underside of unit. NotE: Some screws are
located in fork slots.
4. Remove bottom boards from beneath unit.
5. Inspect unit thoroughly for shipping damage.
6. Carefully lower and position unit to it’s permanent
location.
Rigging & Hoisting
WaRNING:
To avoid the risk of property damage, personal
injury, or death, it is the rigger’s responsibility
to ensure that whatever means are used to hoist
the unit are safe and adequate:
• The lifting equipment must be adequate for the
load. Refer to Table 3 (page 25) for unit weights.
• The unit must be lifted from the holes in the
base rails using cables or chains.
• Spreader bars are required to protect the unit
and ensure even loading. See Figure 4.
• Keep the unit in an upright position at all times.
The rigging must be located outside the units
center of gravity. Refer to Figure 12 (page 24)
for locating the center of gravity.
• All panels must be securely in place during
rigging and hoisting.

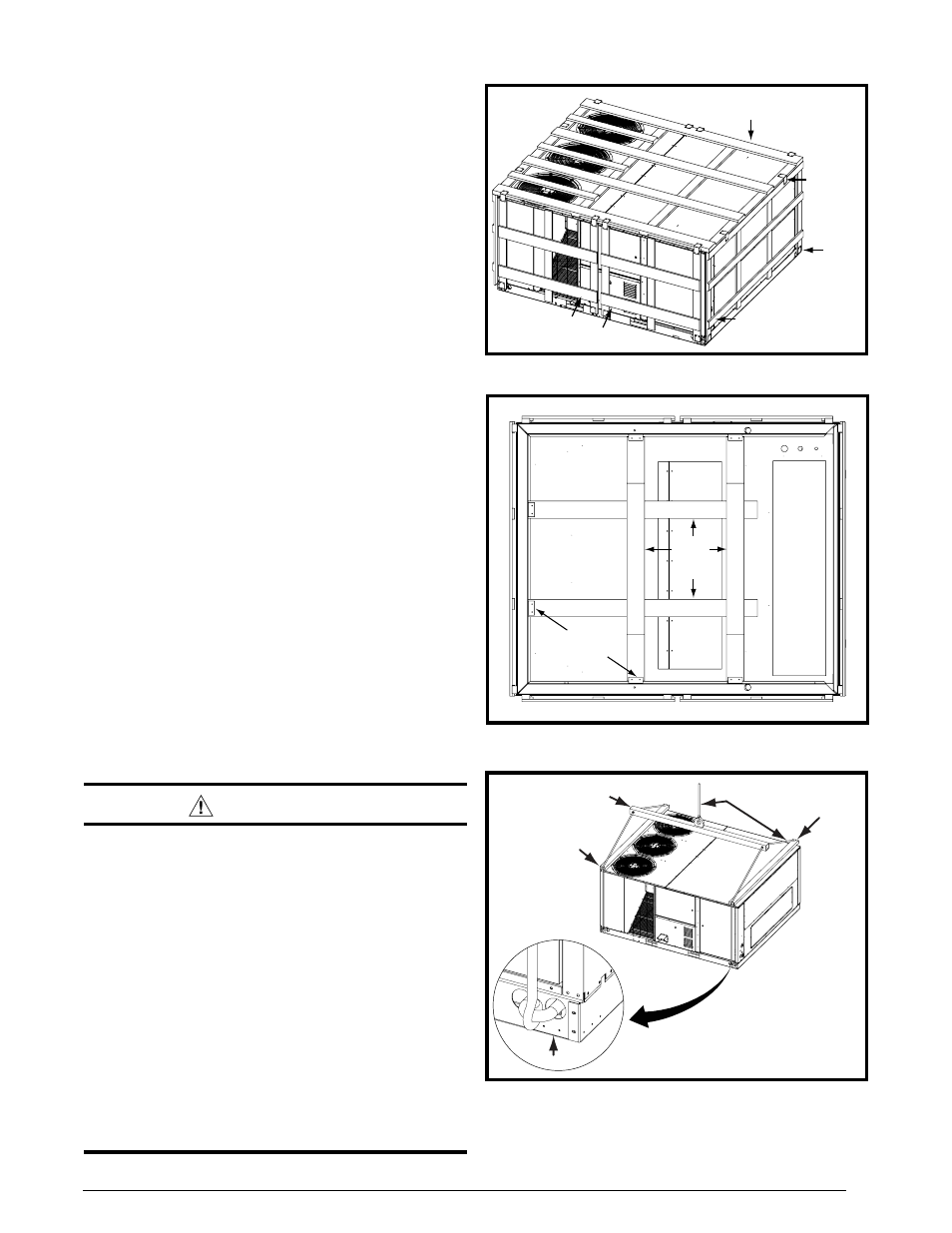

Figure 2. Side View
Wood Cap
Assembly
Top Crate
Brackets
Lower
Crate
Brackets
End Skid Side Skids
Figure 4. Rigging & Hoisting
LIFTING
BEAM
CABLE OR
CHAIN
SPREADER
BAR
SPREADER
BAR
BASE RAIL
Figure 3. Bottom View
Crate
Brackets
(x6)
Bottom
Boards
(x4)
No
Fo
rk
slots this end
Unit F
ront End
Unit Right Side
Unit Left Side
