4.6.3 Inverted Roll Sensor Mounting
If desired, the Roll sensor may be mounted
inverted, so long as the connector exits
towards the right-hand boom. Inverted
mounting may be used to optimize the
mounting criteria.

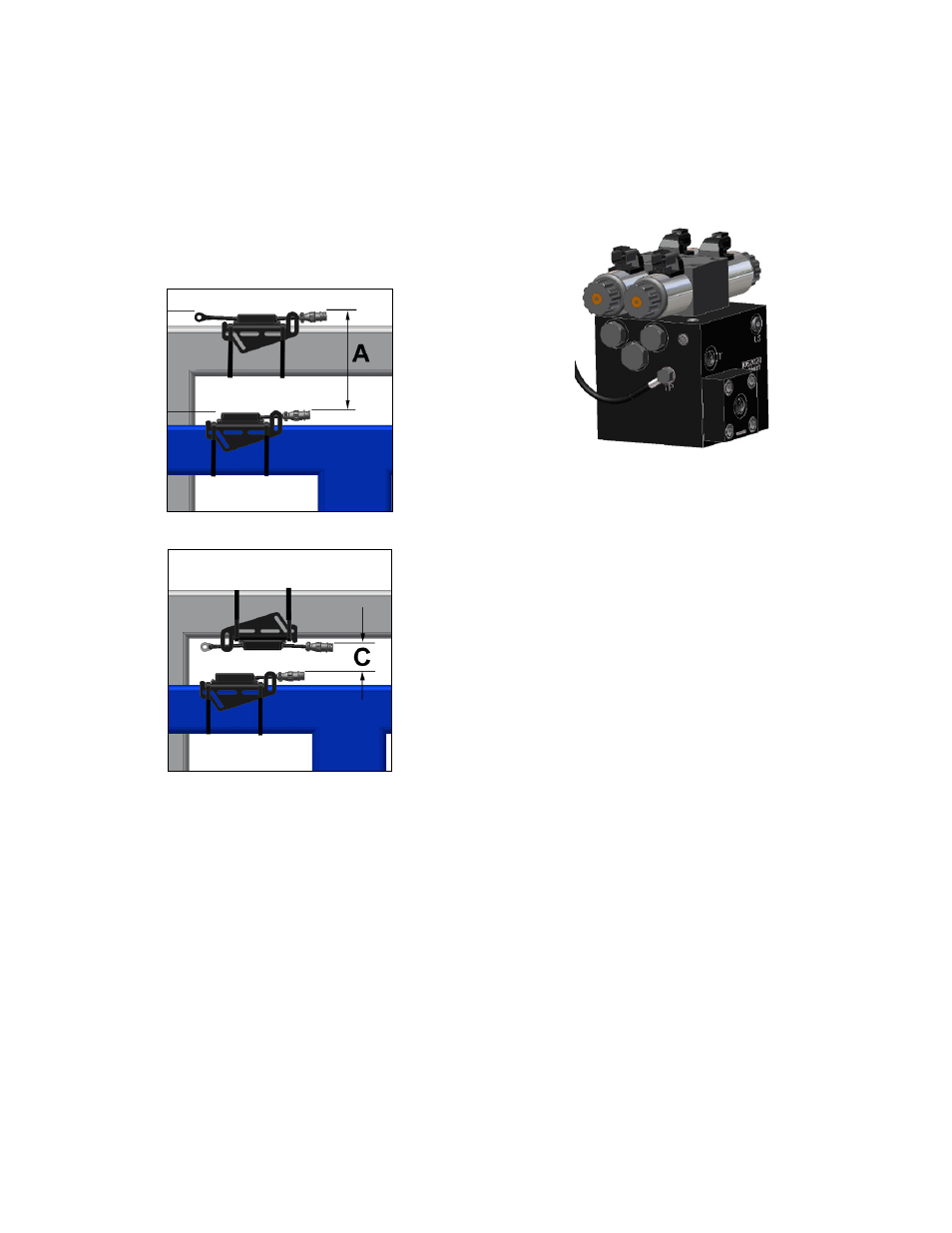

Figure 24: Inverted roll sensor

mounting may be applicable in order

for optimal performance

4.6.4 Temperature Probe
Fasten the temperature probe (E03) to the
UC4 valve block using the included 3/8x1/2”
bolt as illustrated in Figure 25.

Figure 25: UC4+ Valve Block with

Temperature Probe Installed
