18
4.6.1 Trapeze Style Roll Sensor Installation
This section is only for trapeze
style booms (booms that hang
from link arms. If your sprayer
has a center pivot boom proceed
to Section 4.6.2.
When mounting the roll sensors, use the
following guidelines and refer to Figure 19.
a) The smaller the distance between A and
B in Figure 19, the better the
performance will be.
b) Ensure the roll sensors are sitting
relatively level when the sprayer chassis
and booms are level.
c) Both roll sensors must be mounted with
the circular AMP connector facing
towards the Right-Hand Wing (when
looking from the rear of the sprayer).

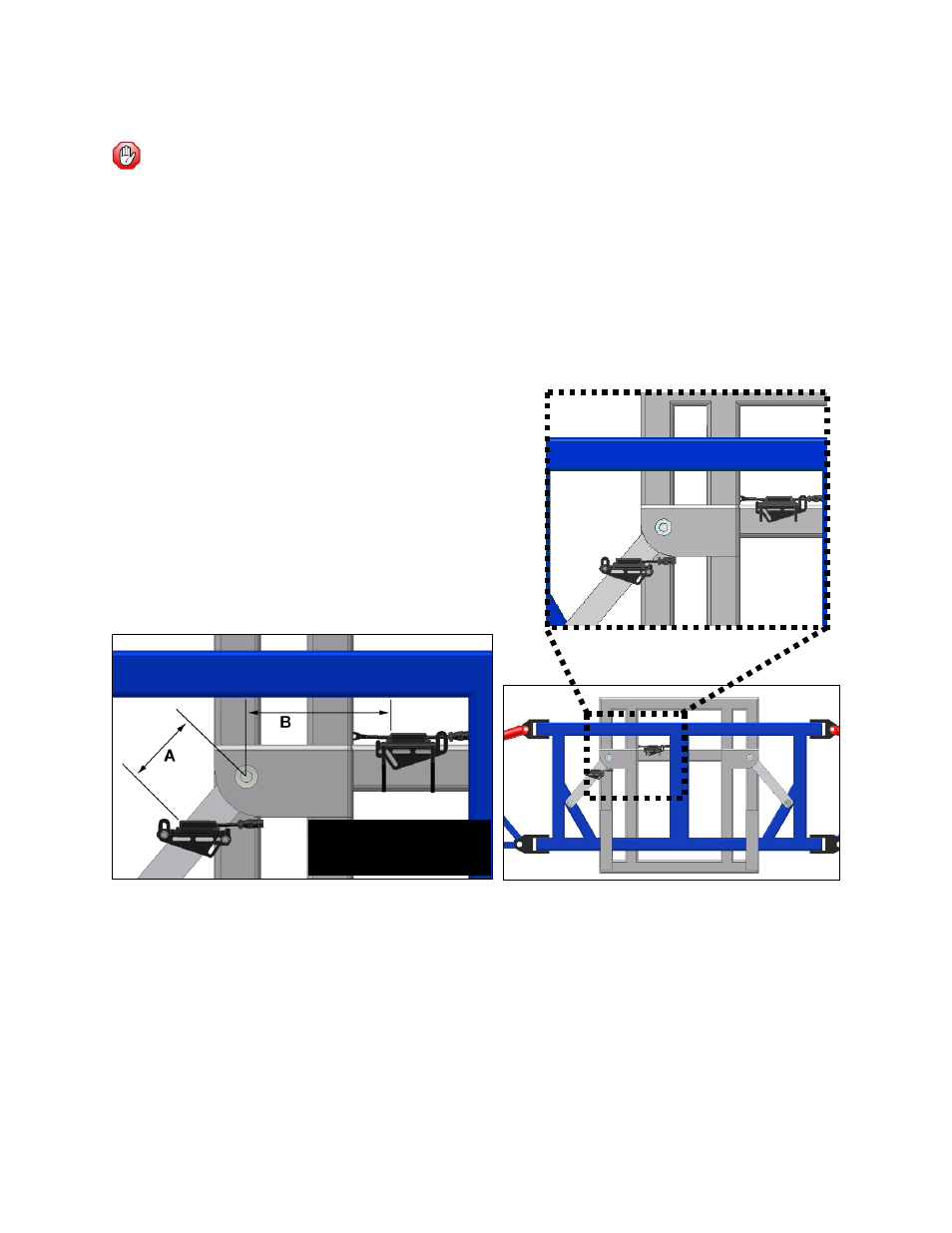

Figure 19: General Roll Sensor Mounting Location on a Trapeze Style Boom
Connectors towards
Right-hand Wing 
