19
4.6.1.1 Boom Frame Roll Sensor
Mounting
1. Use the supplied hardware to mount
the boom frame roll sensor (E04) as
shown in Figure 20.
When mounting the boom frame roll
sensor follow these guidelines:
a) To prevent bending the bracket, ensure
bolts are placed as close together as
possible (minimize C in Figure 20).
b) Be sure to use the roll sensor without
the temperature probe (E04).
c) When the boom is centered (not rolled
over) the roll sensor should be level
with respect to the sprayer chassis.
d) It is best to mount the roll sensor to
the left hand trapeze link (when looking
from the rear of the sprayer).
e) The roll sensor AMP (circular)
connector MUST exit towards the
right hand wing (when looking from
the rear of the sprayer).
2. Cable-tie the sensor connector to the
frame with enough slack to allow the
link to rotate.
Make sure the bracket does not
collide with any parts of the
sprayer when the boom rotates.
Also ensure there is enough slack
to allow the roll sensor to rotate.

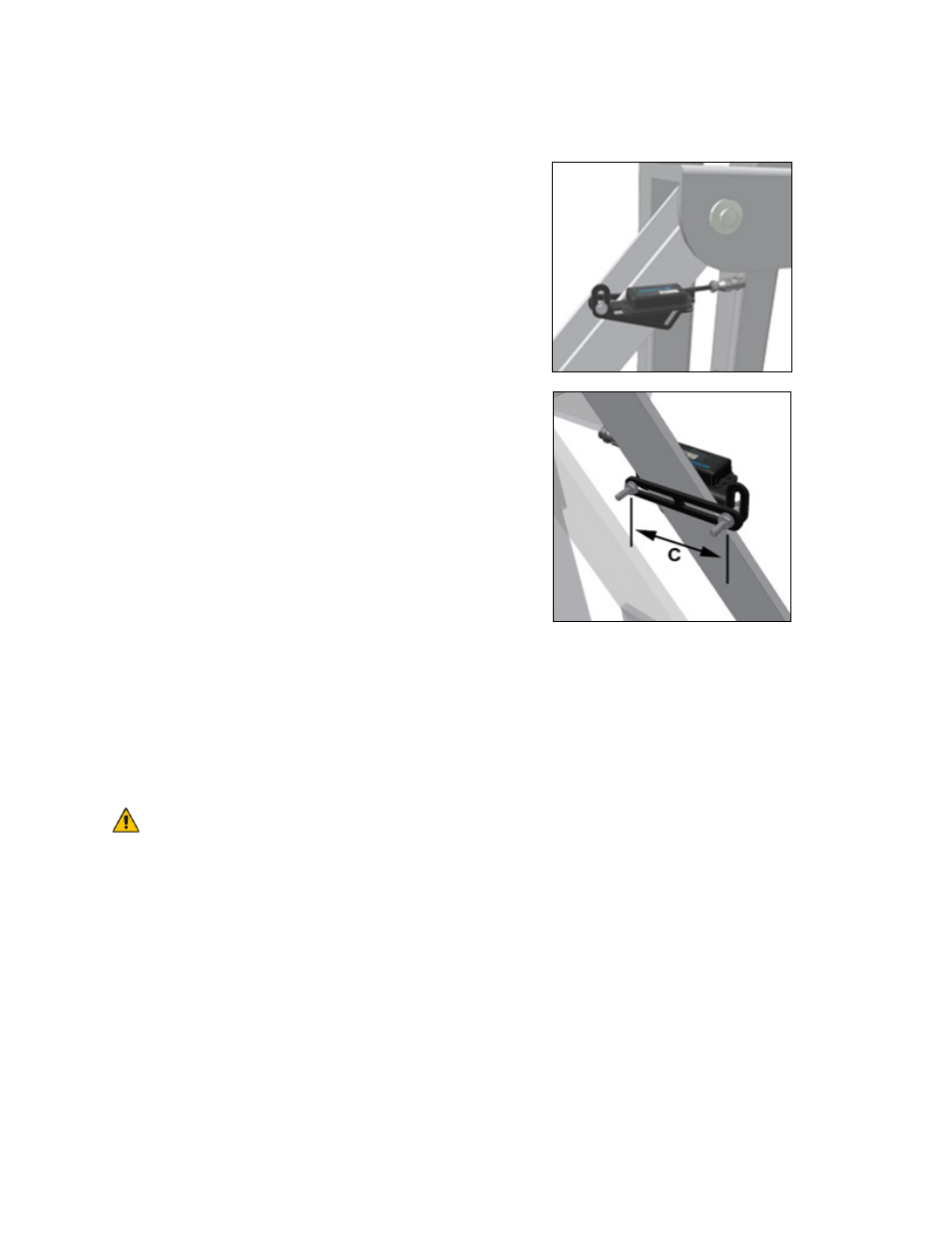

Figure 20: Boom Frame Roll Sensor
Mounted to a Trapeze Link
