4.6.2 Center Pivot Style boom Roll
Sensor Installation
This section is only for center
pivot booms (booms that pivot
on a pin). If your sprayer is a
trapeze style boom use Section
4.6.1.
When mounting the roll sensors use the
following guidelines and refer to Figure 22.
a) The smaller the distance between A and
B in Figure 22, the better the
performance will be.
Distance A cannot be more than
12”.
b) The roll sensors must not be mounted
below the pivot point.
c) Ensure the roll sensors are sitting
relatively level when the sprayer chassis
and boom are level.
d) Both roll sensors must be mounted with
the circular AMP connector facing
towards the Right-Hand Wing (when
looking from the rear of the sprayer).

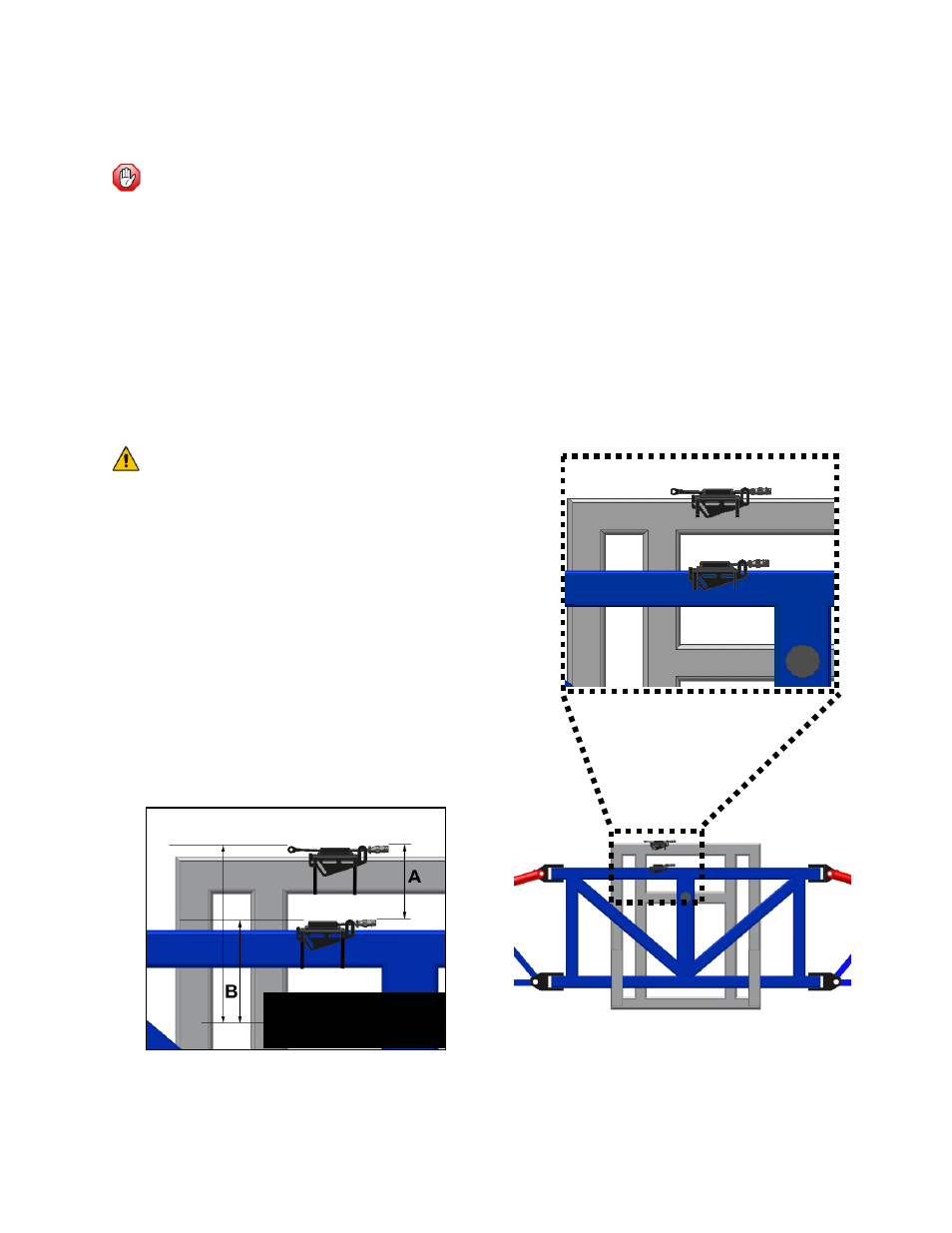

Figure 22: Mounting Guidelines for Center Pivot Sprayers
Connectors towards
Right-hand Wing 
