MAX78630+PPM Evaluation Kit User Manual

Rev 0

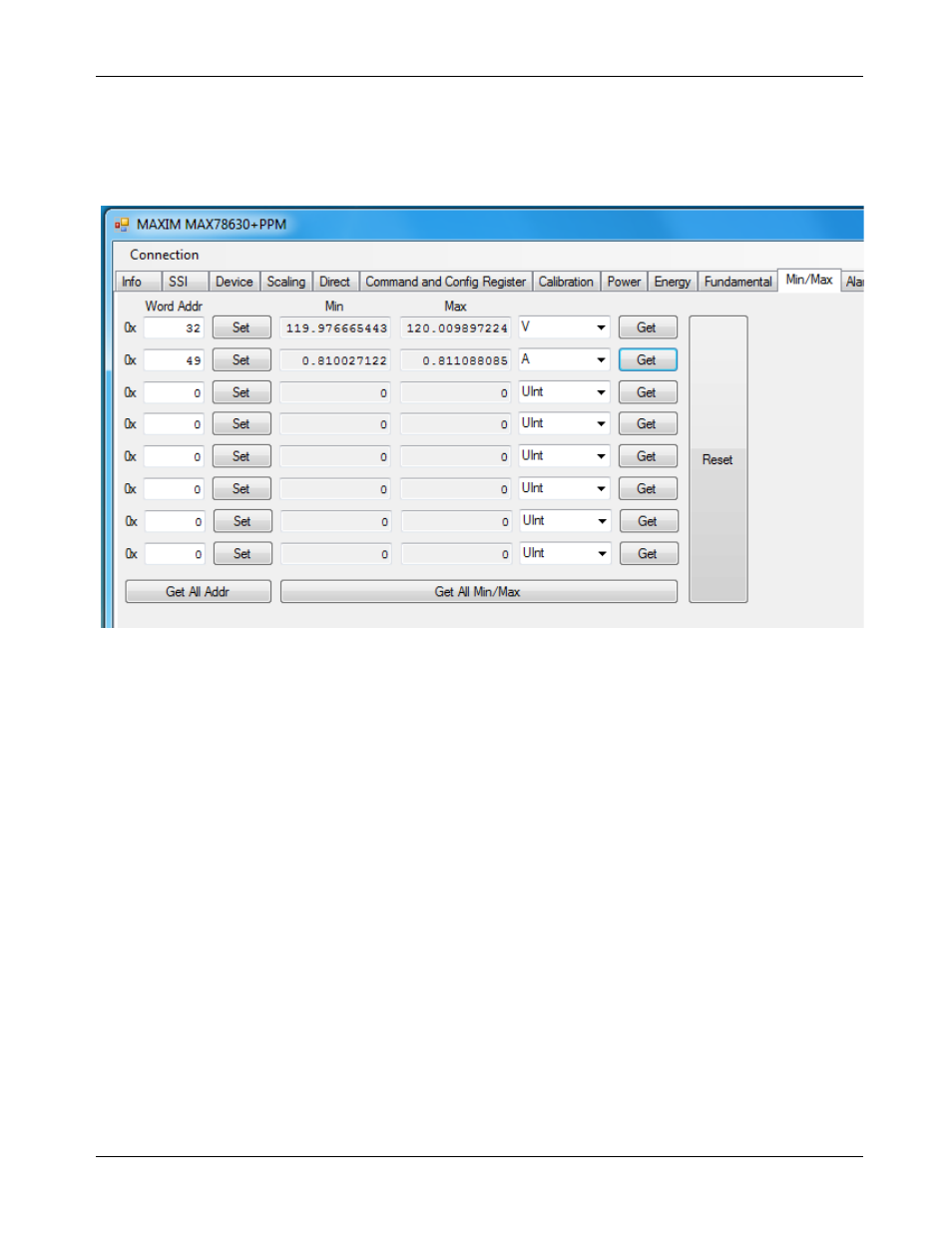

4.1.10 Min/Max Tab

The Min/Max tab is used to display the minimum and maximum measurements for the parameters selected in
the Word Addr column. The units can be selected with the provided pull-down menu and the most recent
measurements are updated using the get buttons. All the measurements are reset with the reset button.
