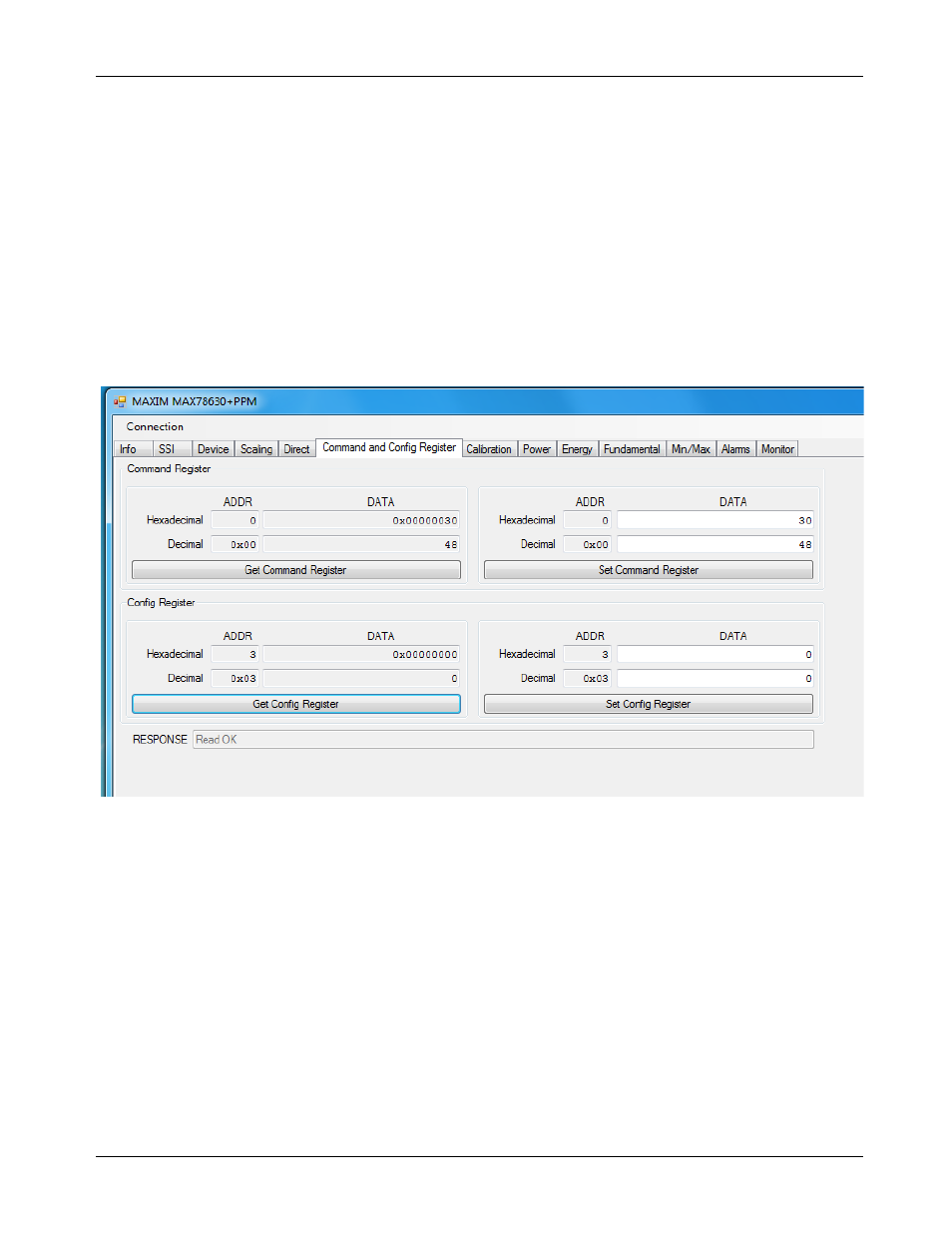

4.1.5 Command and Configuration Tab
The Command and Config tab controls two frequently used registers:
• Get and Set Command Register: These buttons essentially do the same thing as the direct register
reads and writes, but specifically for the command register while the Direct tab is for any pother
registers that need to be accessed. Hex and decimal formats are supported.
•
Get and Set Configuration Register: These buttons are used to set up the measurement configurations
for the MAX78630+PPM. Refer to the IC data sheet Section 2.19 for details on how this is used. The
configuration must be configured before the MAX78630+PPM is used by getting the default
configuration and setting it. Once this is done it can be saved to NV RAM for future use, or
programmed to a user-defined configuration and saved. See the Calibration tab for saving the
settings.
