MAX78630+PPM Evaluation Kit User Manual

12

Rev 0

2.3.3 Neutral Current Measurement Considerations

It is possible, in certain Wye configurations to measure the current in the neutral conductor via a shunt resistor,
therefore replacing the third phase current measurement. This function is enabled by setting jumper J15 to
position 2-3. The MAX78630+PPM EV board then connects the shunt voltage to input AIC of the MAX78630.
IC (J41) is not measured in this case.

V1

V2

V3

Nin

Nout

I1

J39

I2

J40

I3

J41

J5

J4

J3

J2

J1

J

13

J

19

J

42

J

15

J11

MAX78630EVAL V1

J14

J20

J43

CT1

CT2

LOAD

A

B

C

N

A

B

C

N

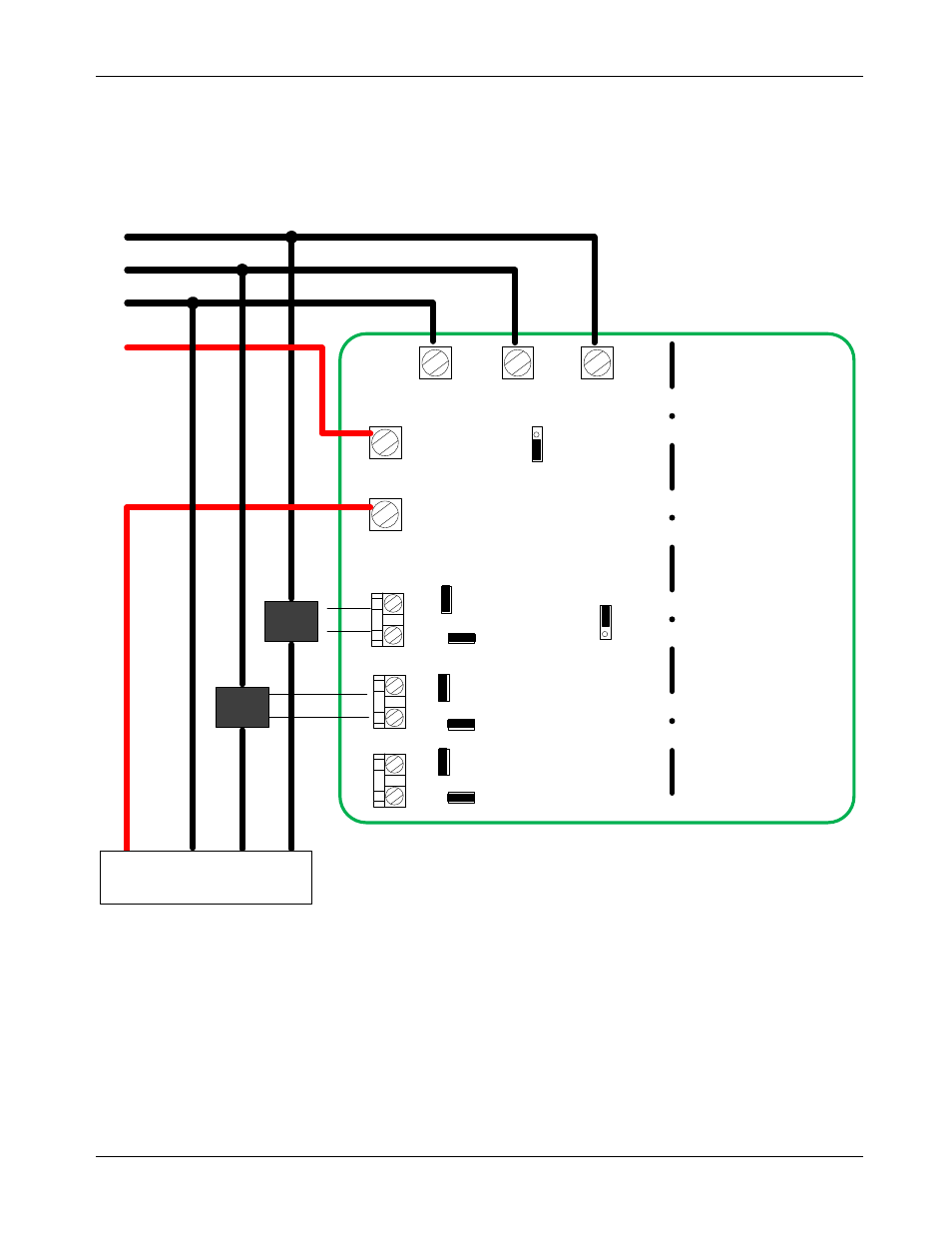

Figure 4: MAX78630+PPM EV Board Connections
