4.1.4 Direct Tab

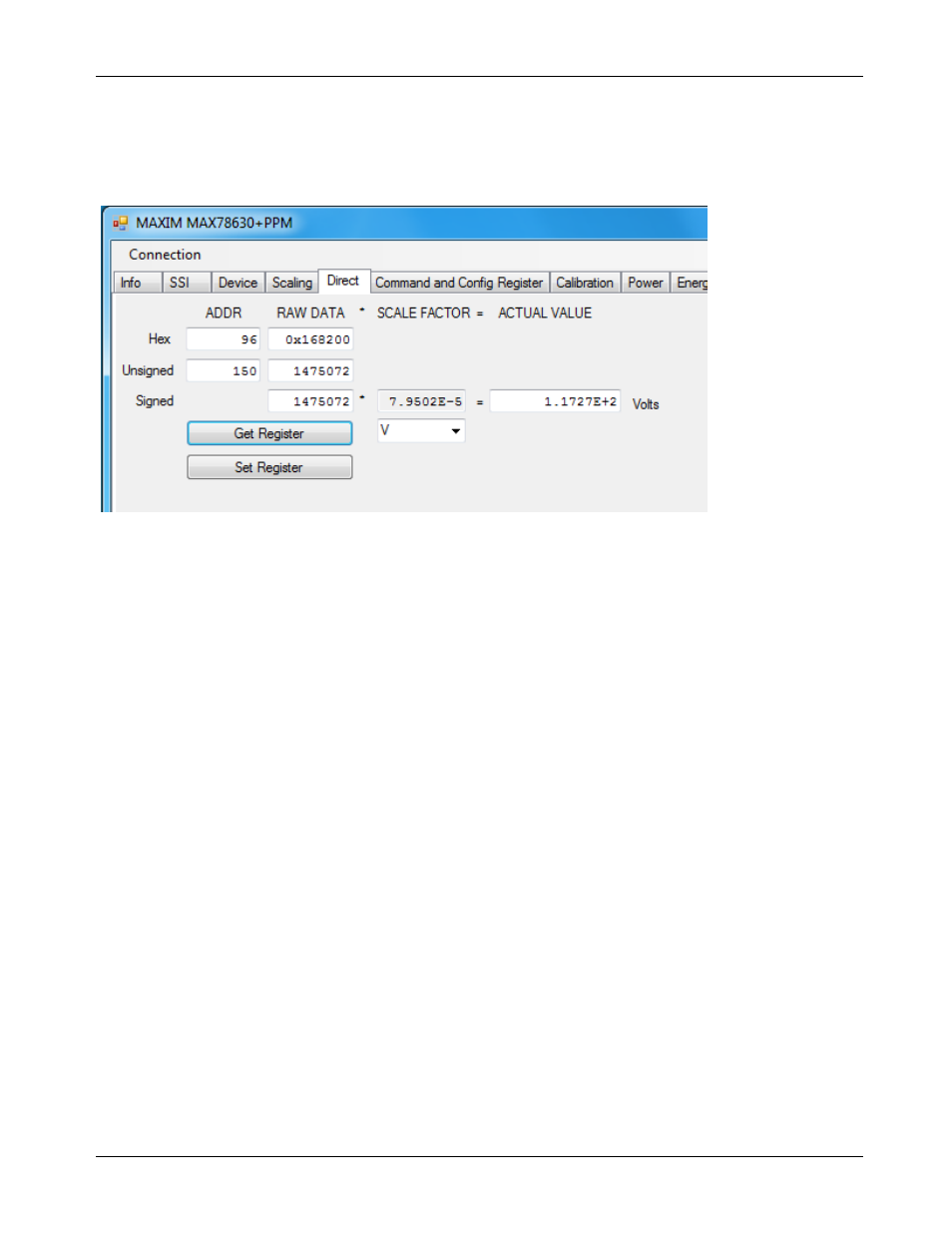

The Direct tab allows access to the all the registers and can both read and write to the registers. The data can
be displayed with the scale factor and units applied for convenience. In the example below, the voltage register
is being read, so the volts option is used to display the data.
