MAX78630+PPM Evaluation Kit User Manual
Rev 0 21
4.1.6 Calibration Tab

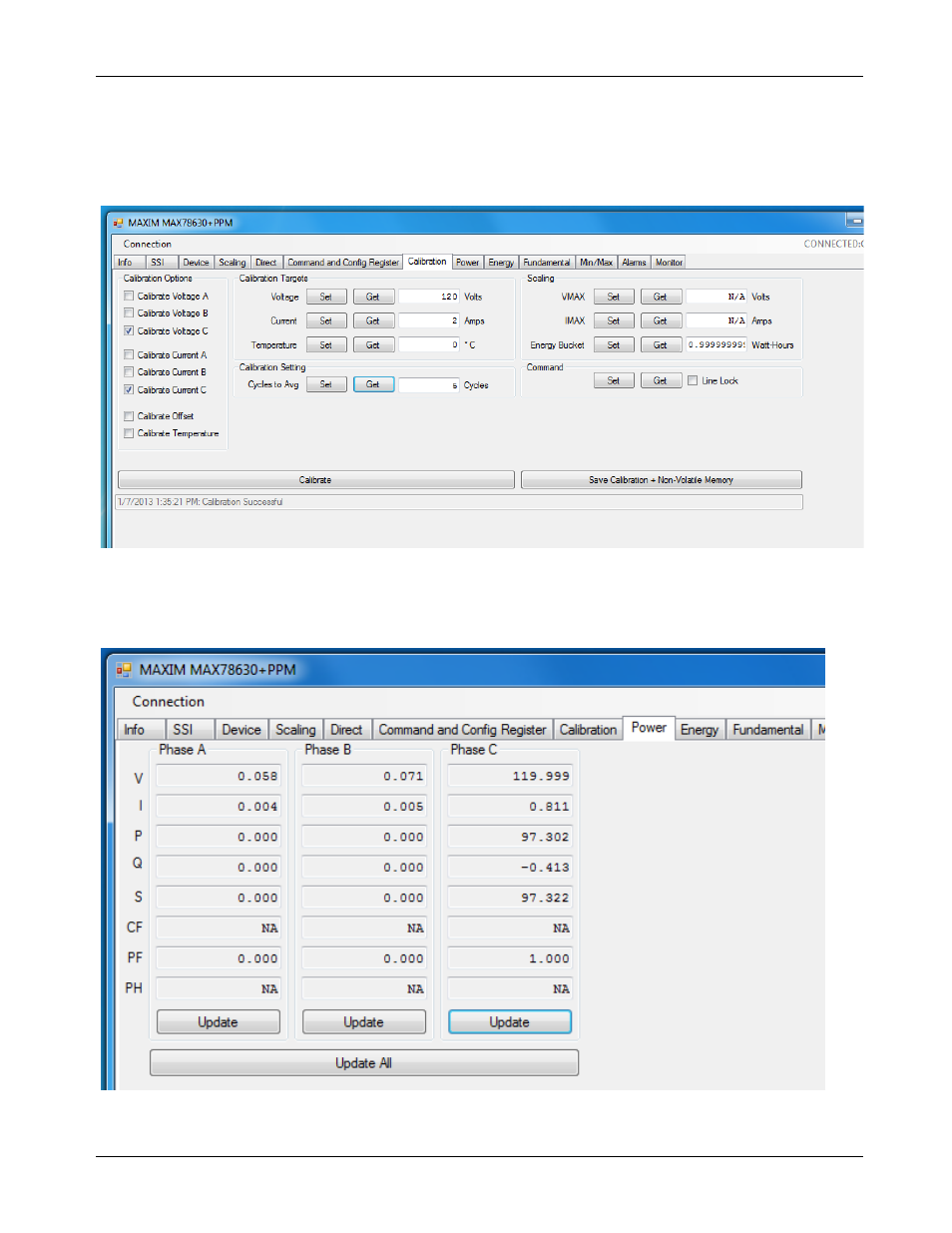

The Calibration tab is used to calibrate all the measurement channels. The calibration targets can be viewed
and changed and the scaling parameters are also displayed for convenience. Use the Calibration Options to
select the parameters to be calibrated. The calibration and NV RAM are also saved using the provided button.
4.1.7 Power Tab
The Power tab displays the current power being consumed by the loads. P (active power), Q (reactive power),
and S (apparent power) are displayed along with the voltage, current, crest factor, and power factor.
