MAX78630+PPM Evaluation Kit User Manual
Rev 0 17
4 Graphical User Interface (GUI)
A graphical user interface (GUI) is included on the MAX78630+PPM EV kit CD to facilitate quick evaluation of
the MAX78630+PPM energy measurement device. The GUI requires Microsoft.NET Framework 4 on the PC
for which the GUI is to execute on. Upon invoking the GUI executable file, an installation wizard may appear if
Microsoft.NET Framework 4 is not installed on the PC. Follow the installation wizard instructions, or download
Microsoft.NET Framework 4 from the Microsoft web site prior to launching the GUI.

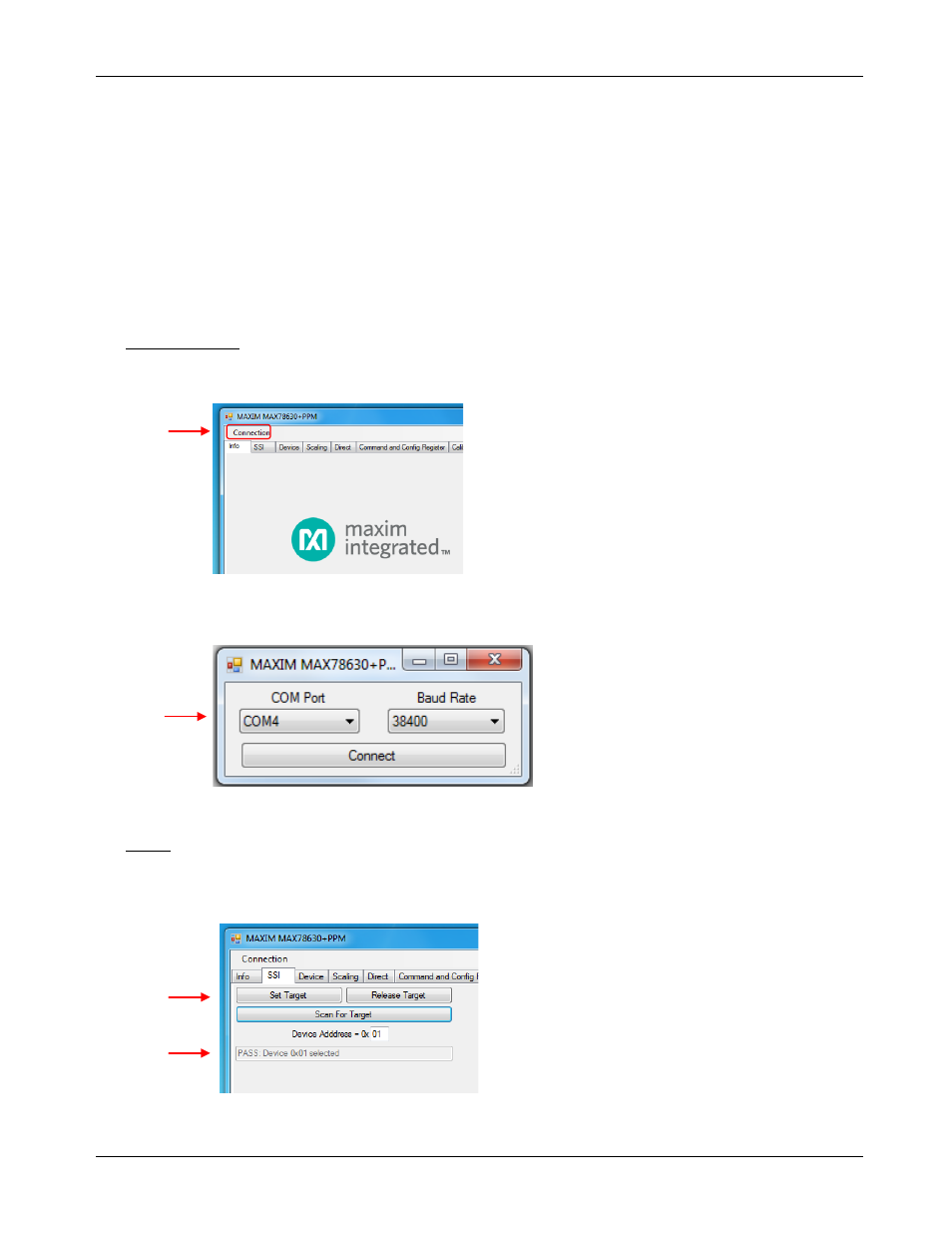

4.1 GUI Initialization
The GUI is self-explanatory when used with the MAX78630+PPM Data Sheet. The user, however, should note
the following about the EV kit hardware:
• Serial COM Port:
 Following the installation instructions in Section 2, launch the GUI executable. Click the
Connection pull-down menu and select Connect.
 The COM Port / Baud Rate box appears. Select the COM port assigned to the EV kit and
leave the baud rate set to 38400 (default). Click the Connect button.
4.1.1 SSI ID Tab
• SSI ID:
 Click the SSI tab. Use the SSI ID number set by DIP switch 5 (1 and 2 are closed by default)
and click Set Target. Upon successful communication with the EV kit, a message appears in
the message box.
