MAX78630+PPM Evaluation Kit User Manual
18 Rev 0

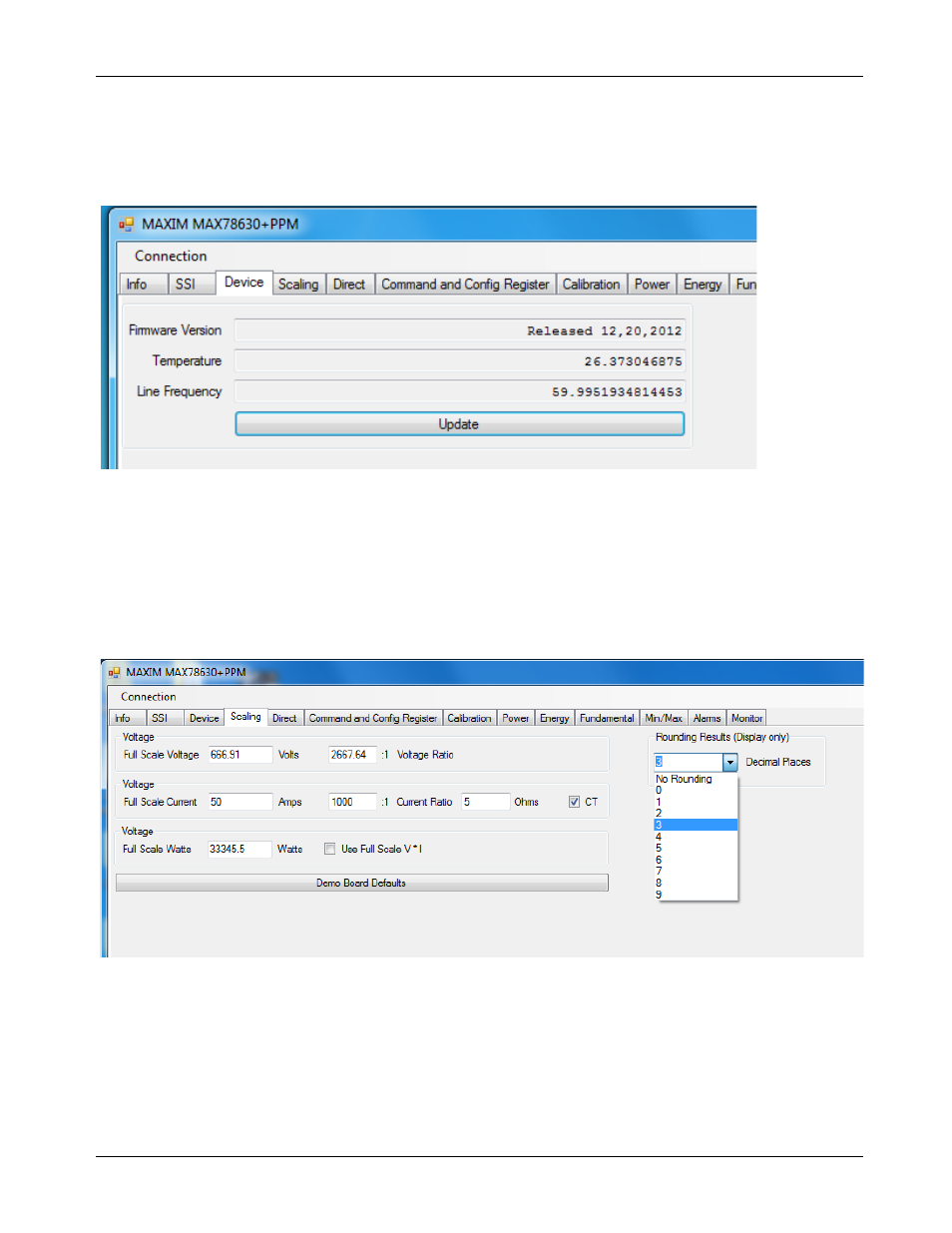

4.1.2 Device Tab
The Device tab shows to current firmware build as well as the temperature and line frequency being
measured.
4.1.3 Scaling Tab
The Scaling tab is used to set the scale factors for voltages, currents, and power results. They should be set
in accordance to the external circuitry that is being used. The scale factors are then used in the following result
tabs to convert numeric results obtained from the MAX78630+PPM device to real world values.
The user can also choose to round the results (Power, Energy, Fundamental/Harmonics, Frequency and
Temperature) to a specified number of decimal places.
