ENGLISH
Aurora Series: Introduction
8
DVR User’s Manual

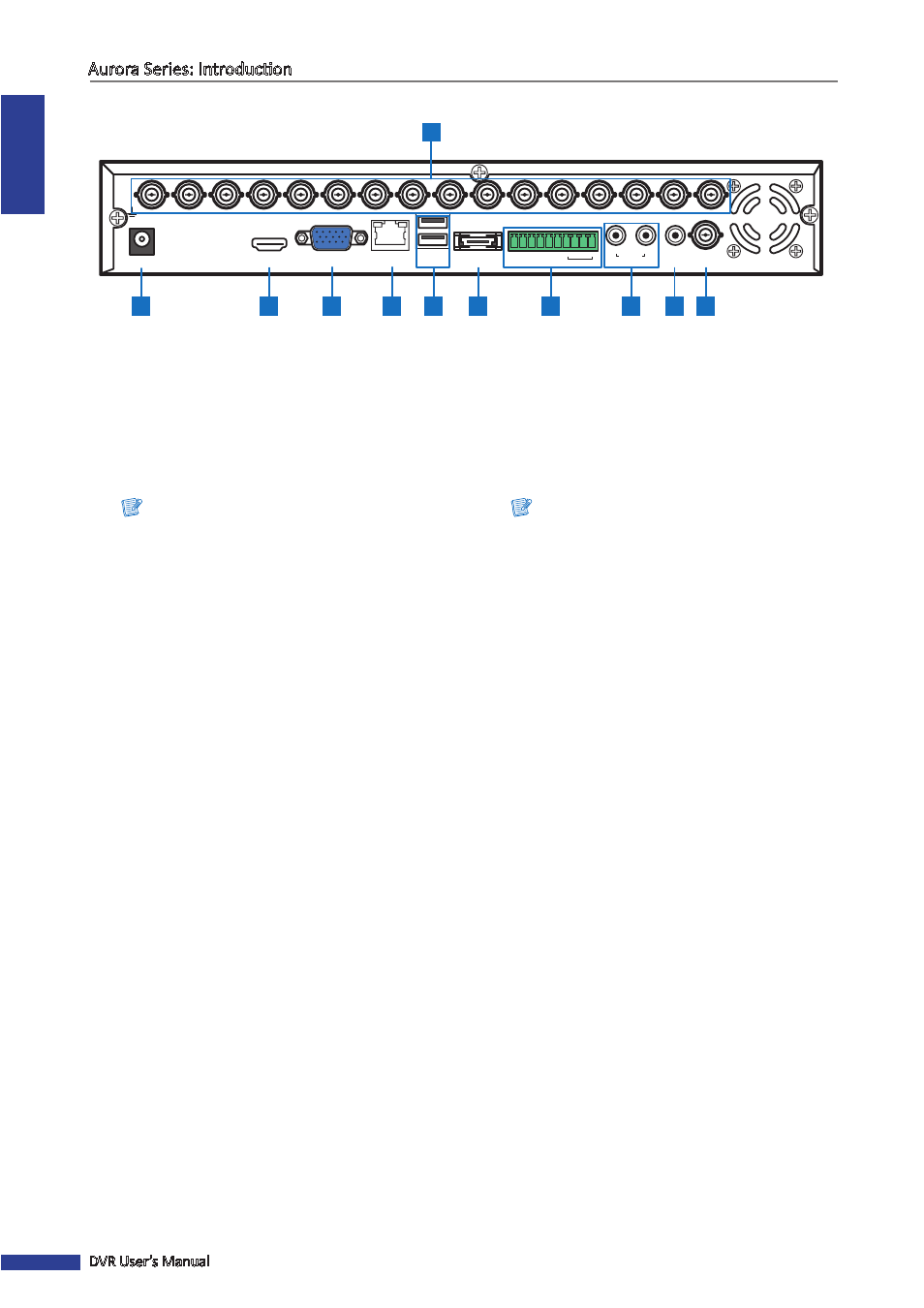

16-Channel DVR
VGA HDMI
DC+12V
IN USB E-SATA
AUDIO
OUT
CVBS
OUT RJ45
GND
ALM IN
NO
CO
M
GN
D
485A 485B GN
D 1 2 3 4 AUDIO
IN
1 2
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
VIDEO IN
9
2 4 6 5 12 11 10 7 8 1
1) Power Input: Connects to the power adapter. Use
only the supplied power adapter.
8) Video Output: Connects to a monitor or television
via BNC.
2) HDMI Output: Connects to a monitor via HDMI. For
best video quality, it is recommended to use this
connection.
Note:
For best possible displayed image, use a television
or monitor which can display 1920x 1080 or higher.
9) Video Input: Connects to a maximum of 4
(4-channel DVR), 8 (8-channel DVR), or 16
(16-channel DVR) CCTV cameras (BNC).
Note:
The label shown on the port is the same channel
number as it appears on the DVR interface.
3) RS485 (4/8-channel only): Connects to a Speed
dome camera via RS-485.
10) Audio Input: Connects to a maximum of 4
(4-channel DVR), 8 (8-channel DVR), or 2
(16-channel DVR) microphones via RCA.
4) VGA Output: Connects to a VGA monitor. 11) RS485 (16-channel only): Connects to a Speed
dome camera, sensor or alarm device via RS-485.
5) USB 2.0: Connects to a USB mouse or flash disk. 12) eSATA: Connects to an external hard drive.
6) LAN: Connects to a network via RJ-45.
7) Audio Output: Connects to a speaker via RCA.
