Juniper Systems ltra-Rugged Field PC Extended Caps User Manual
Page 13
7. Slide the extended cap onto
the Field PC and push the
sensor cable through the
incision you made so that
the cable exits out of the
top of the cable channel.
Note: The incision does
not affect the seal of the
Field PC.

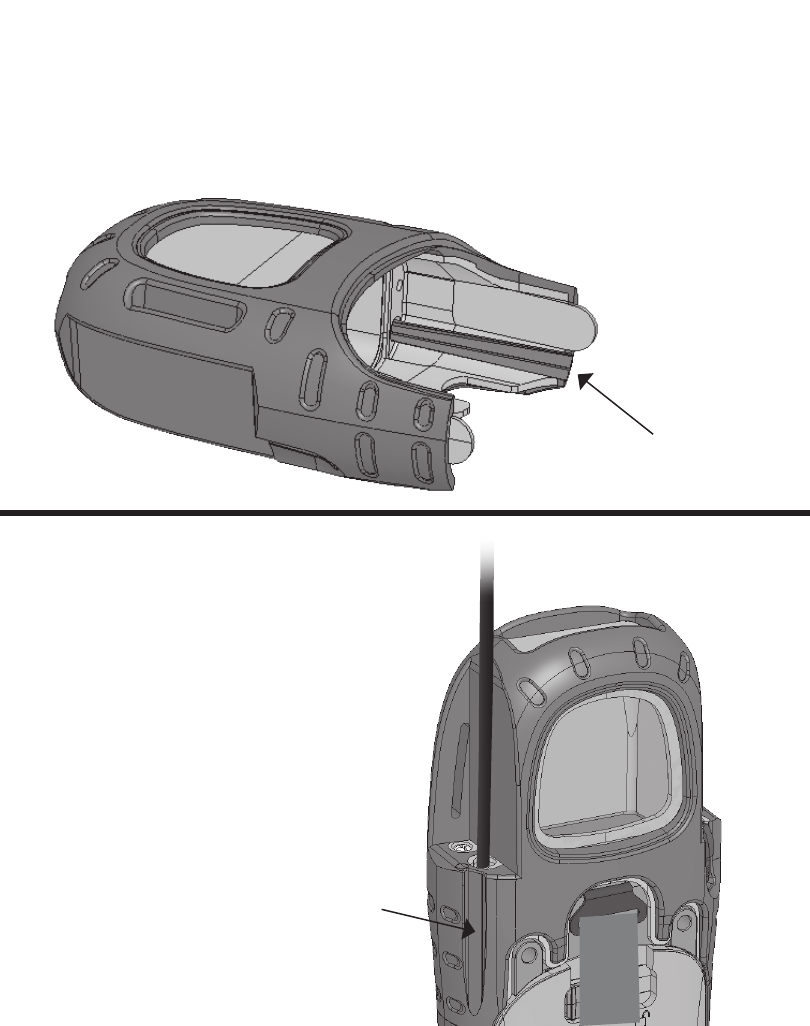

6. To give the cable an exit through the extended cap, cut
the thin rubber overmolding on the extended cap along
the entire scribe line using a razor blade or sharp knife.
make
cut here
13
incision
