Page 10

Mounting an External Device
Overview
The Field PC features a convenient cable channel that
hides cables attached to an external device you mount on
the Universal, Optical, or Data Acquisition Caps. External
devices might include an external RS-232 sensor (such as
a GPS receiver) or a USB device.
This section explains how to insert a cable in the cable
channel and how to mount the external device onto the
extended cap. These instructions assume you have already
installed your extended cap onto the Field PC.
10

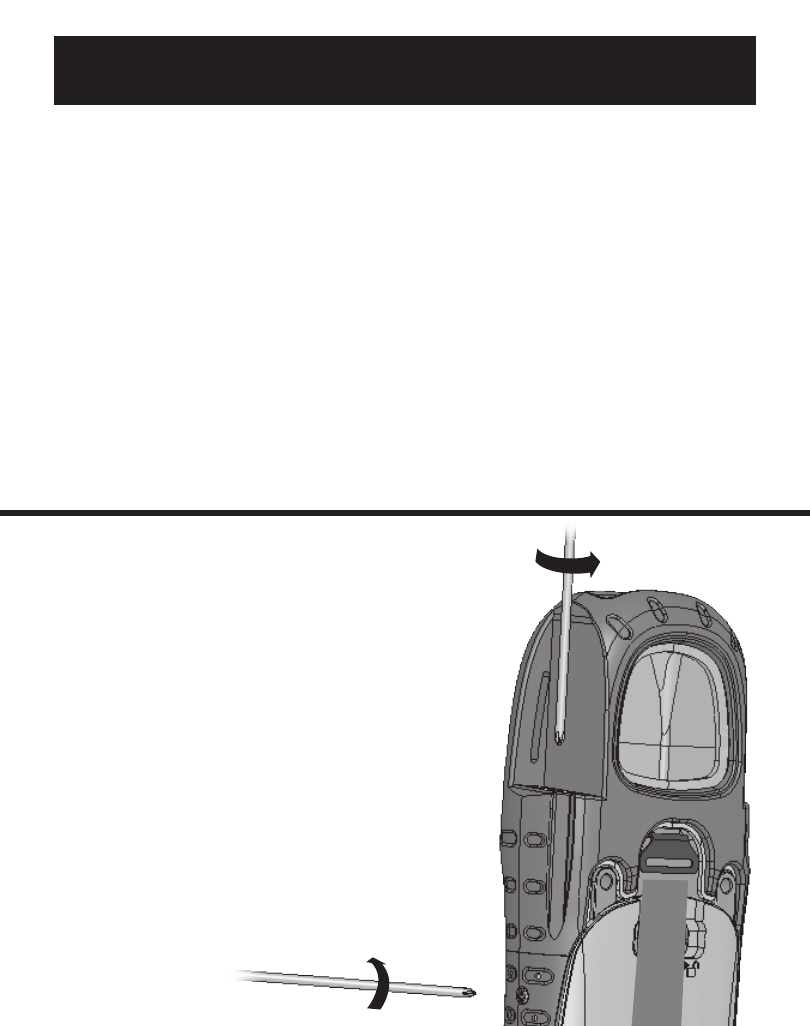

1. Turn off the Field PC and
remove the extended cap,
bottom hand strap latch, battery
door, and battery pack. Leave
the serial adapter plate in place.
Carefully remove the four side
screws on the body molding
and slide off the body molding
about one inch (2.5 cm).
