NX501/NZ501 59
English
English
Owner’
s Manual
26. INSTALLATION /WIRE
CONNECTION GUIDE
1. Before Starting
1.This set is exclusively for use in cars with a negative ground
12V power supply.
2.Read these instructions carefully.

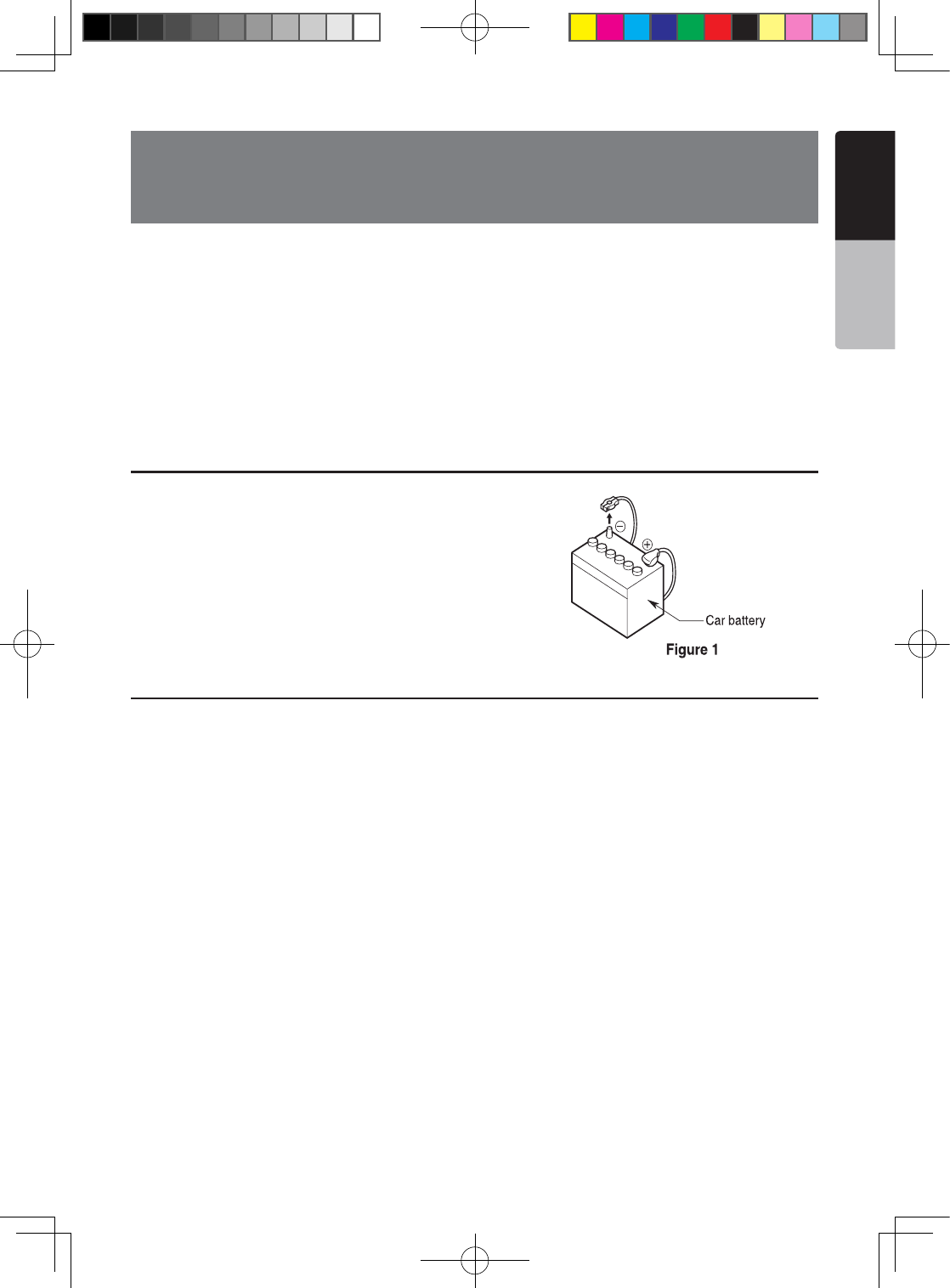

3.Be sure to disconnect the battery “-” terminal
before starting. This is to prevent short circuits during
installation. (Figure 1)
2. Package Contents
Main unit ................................................... 1
Wiring harness .......................................... 1
GPS antenna ............................................ 1
CLAMP for GPS antenna's cable ............. 3
DOUBLE FACE TAPE for GPS Antenna ... 1
Remote control unit .................................. 1
Battery (CR2025) ...................................... 1
(Installed in remote control)
Trim ring ................................................... 1
Cleaning cloth........................................... 1
Warranty Card .......................................... 1
Owner’s manual and
Installation manual.................................... 1
Electro tap ................................................ 2
2DIN trim ring 200mm wide
(NX501 only) ............................................. 1
Back Strap (NZ501 only) .......................... 1 Mounting Bracket key
(NZ501 only) ............................................. 2
Flush mount bolts
(NX501) ..................................................... 8
(NZ501) ..................................................... 4
Hexagon Head Screw
(NX501) ..................................................... 8
(NZ501) ..................................................... 5
AV cable ................................................... 1
Line out cable (NX501 only) ...................... 1
Rear Zone out cable (NX501 only) ............ 1
SWI cable (NX501 only) ............................ 1
SIRIUS cable (NX501 only) ....................... 1
HD Radio cable (NX501 only) ................... 1
External Microphone cable
(NX501 only) ............................................. 1
CONTENTS
1. Before Starting ..............................................................................................59
2. Package Contents .........................................................................................59
3. General Cautions...........................................................................................60
4. Cautions On Installation ................................................................................60
5. Installing The Main Unit .................................................................................61
6. Cautions On Wiring .......................................................................................63
7. Wire Connections ..........................................................................................64
