1.3 Live Interface

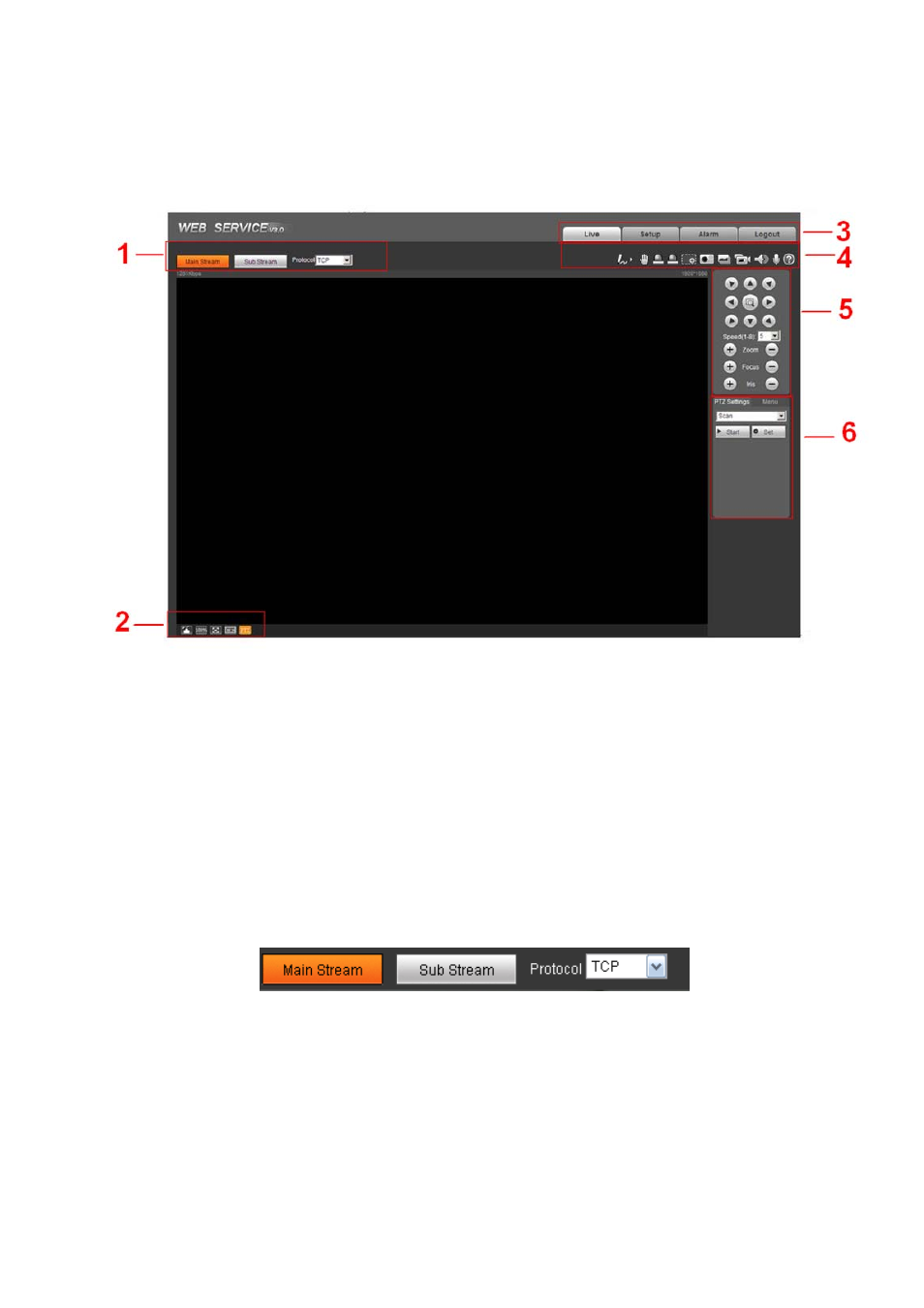

After you logged in, you can see the live monitor window. Now you can operate the speed dome via the
WEB. See Figure 1-4.
Figure 1-4
There are six sections:
z Section 1: Encode setup bar
z Section 2: Window adjust bar
z Section 3: System menu bar
z Section 4: Window function option bar
z Section 5: PTZ control
z Section 6: PTZ function
1.4 Encode Setup
The encode setup interface is shown as in Figure 1-5.
Figure 1-5
Please refer to the following sheet for detailed information.
