9 ptz setup/menu – IC Realtime 2 Megapixel Full HD 20x Optical Network PTZ Camera IP66 300 ft IR (ICIP2001HDIR) User Manual
Page 11
7
Before PTZ operation, please make sure you have properly set PTZ protocol. (Please go to Setup-
>System->PTZ to set.).

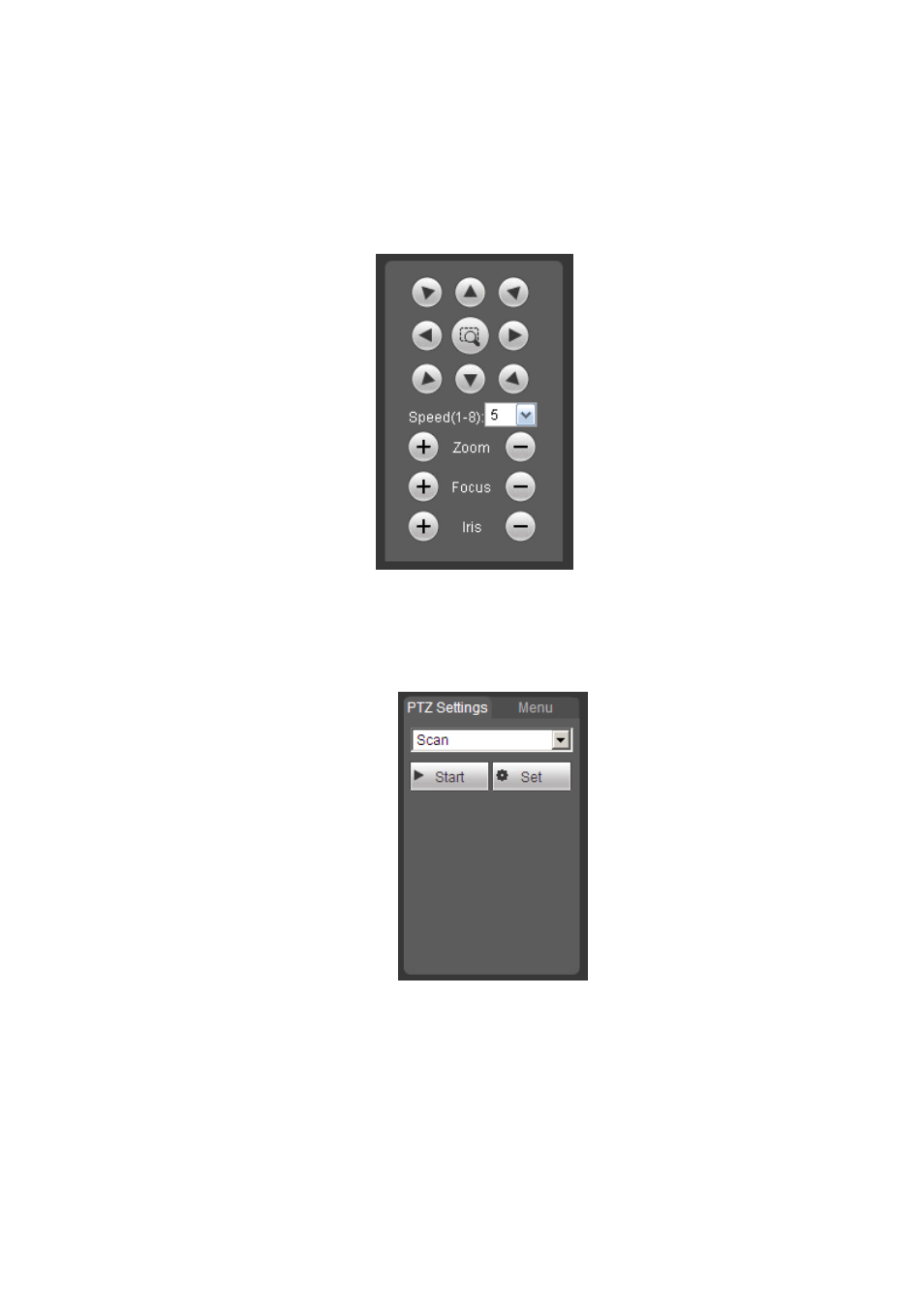

Here you can view direction keys, speed, zoom, focus, iris button. See Figure 1-10.
z PTZ direction: PTZ supports eight directions: left/right/up/down/upper left/upper right/bottom
left/bottom right/ fast positioning.
z Speed: The step 8 speed is faster than step 1.
Figure 1-10
1.9 PTZ Setup/Menu
The PTZ setup/Menu interface is shown as in Figure 1-11.
Figure 1-11
