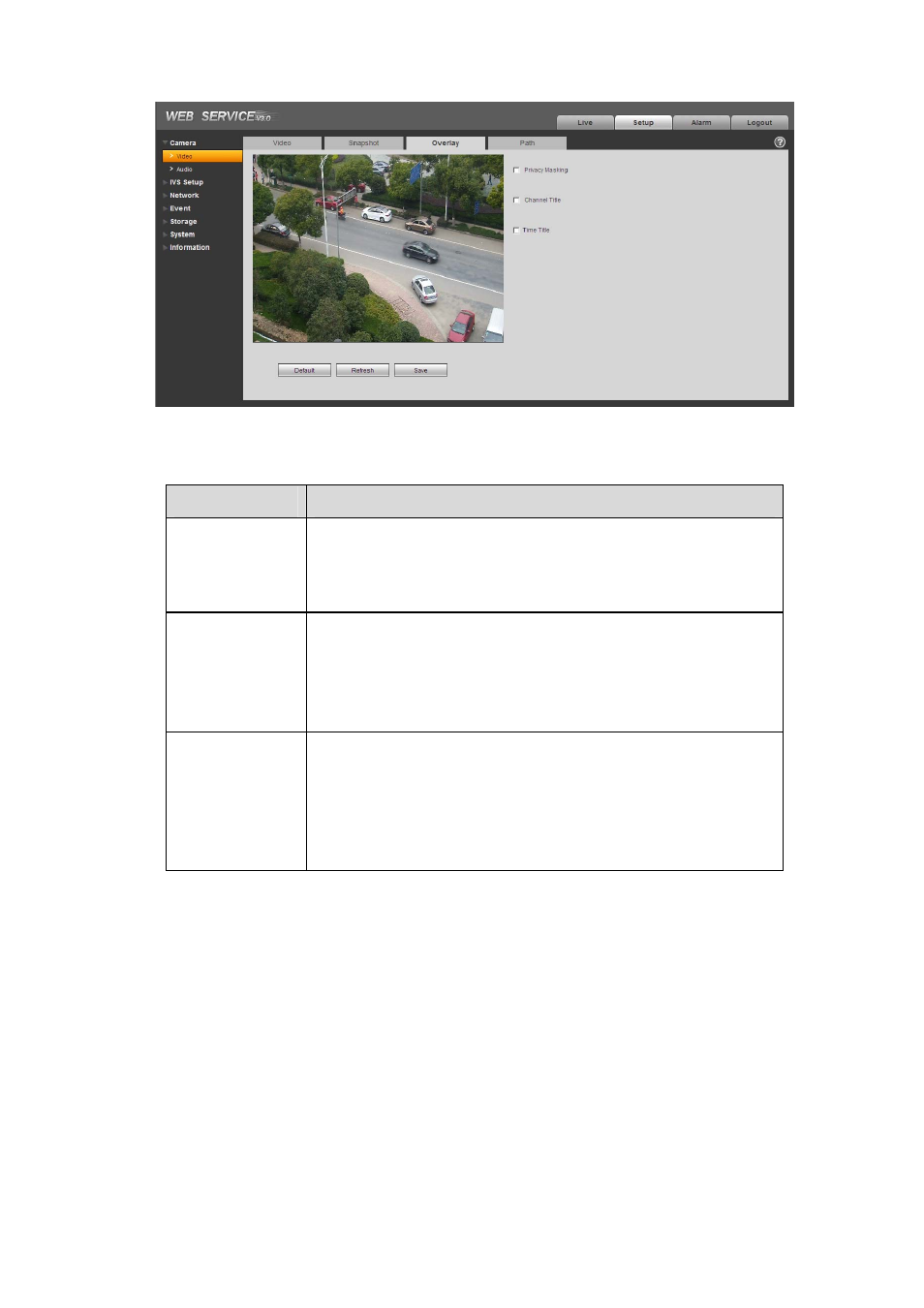

Figure 2-3
Please refer to the following sheet for detailed information.
Parameter
Function
Privacy mask
z
Here you can privacy mask the specified video in the monitor
video.
z
Click Setup button, you can set privacy mask region. System
max supports 4 privacy mask zones.
Time Title
z
You can enable this function so that system overlays time
information in video window.
z
There is no time title if you do not enable this function here.
z
Click Setup button, you can set time title display region. You
can use the mouse to drag the time tile position.
Channel Title
z
You can enable this function so that system overlays channel
information in video window.
z
There is no channel title if you do not enable this function
here.
z
Click Setup button, you can set channel title display region.
You can use the mouse to drag the channel tile position.
2.1.1.4 Path
The storage path interface is shown as in Figure 2-4.
