IC Realtime 2 Megapixel Full HD 20x Optical Network PTZ Camera IP66 300 ft IR (ICIP2001HDIR) User Manual
Page 46
42

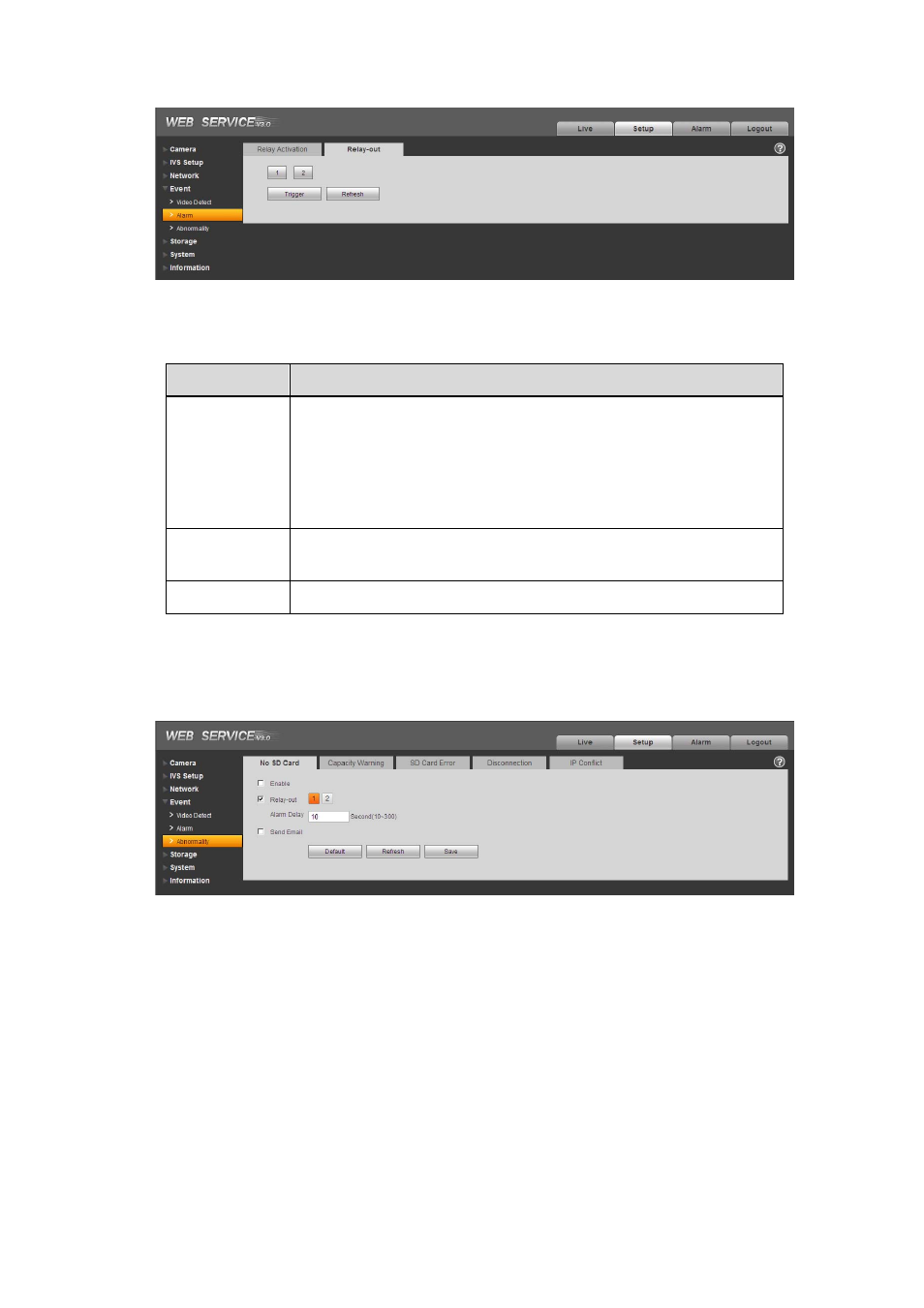

Figure 2-32
Please refer to the following sheet for detailed information.
Parameter
Function
Alarm output
There are two output channels. Please click the corresponding
button. If you want to enable the alarm activation output function,
please press the corresponding button and then trigger.
Please note the interface here is for reference only. The
alarm output number may vary due to different series
products.
Trigger
When the alarm output channel is open, the output port can
immediately output an alarm once it occurred.
Refresh
Refresh alarm output status.
2.4.3 Abnormality
It includes five statuses: No SD card, capacity warning, SD card error, and disconnection and IP conflict.
There are two interfaces for you reference. See Figure 2-33 through Figure 2-37.
