IC Realtime H.264E Hybrid DVRs 4/8/16-CH Analog + 4/8/16-CH IP User Manual
Page 89

79

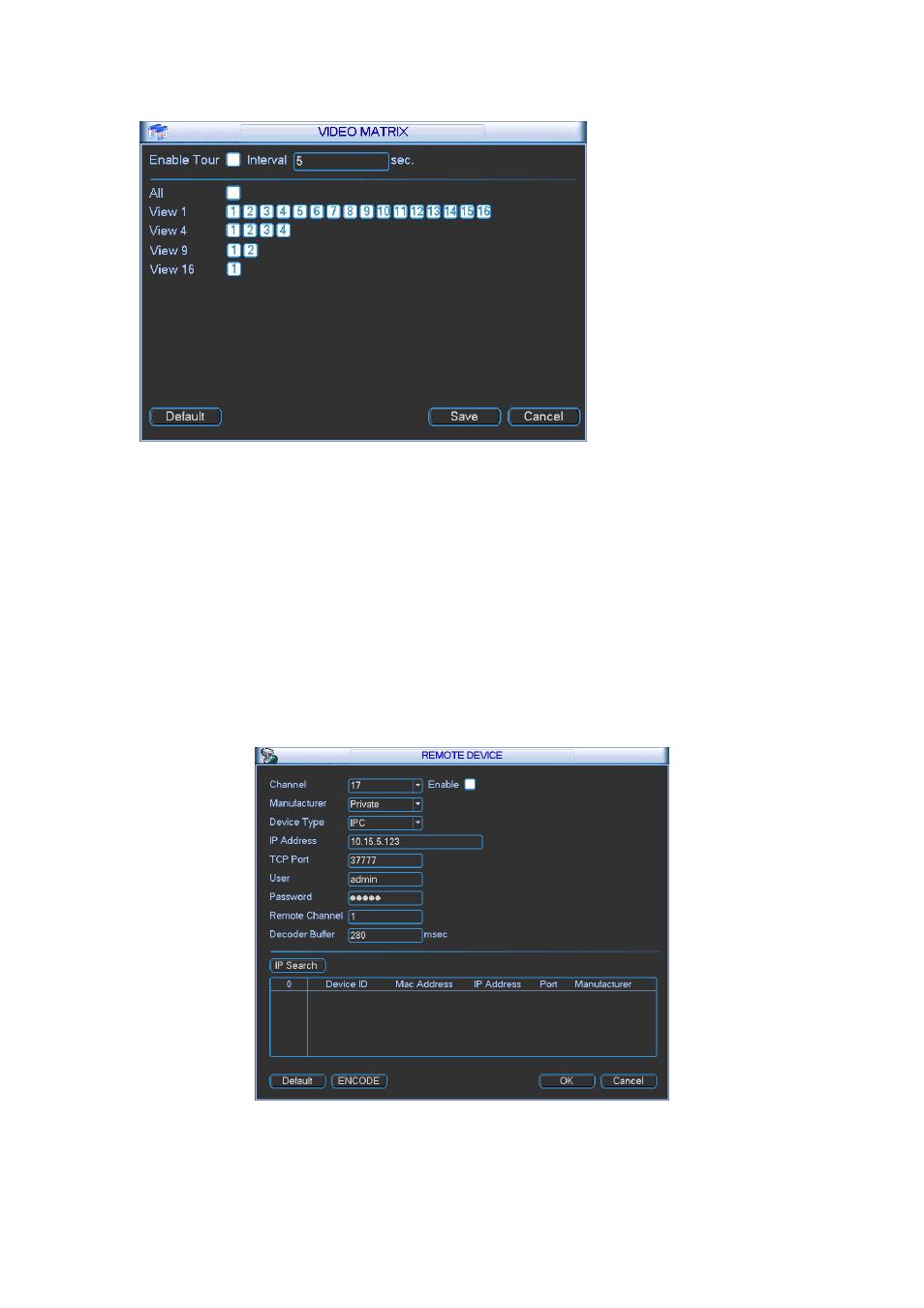

Figure 5-44
5.5.9 Remote Device
The remote device interface is shown as in Figure 5-45. Here you can set IPC IP
address, port, remote device channel number, user name and its password.
IPC port number is 37777; remote device channel number is 1 by default. IPC user
name is admin and password is admin.
The 4-ch device max. supports 4-ch D1 IPC or 2-ch 720P IPC or 1-ch 1080P IPC.
The 8-ch device max. supports 8-ch D1 IPC or 4-ch 720P IPC or 2-ch 1080P IPC.
The 16-ch device max. supports 16-ch D1 IPC or 8-ch 720P IPC or 4-ch 1080P IPC.
Figure 5-45
