101

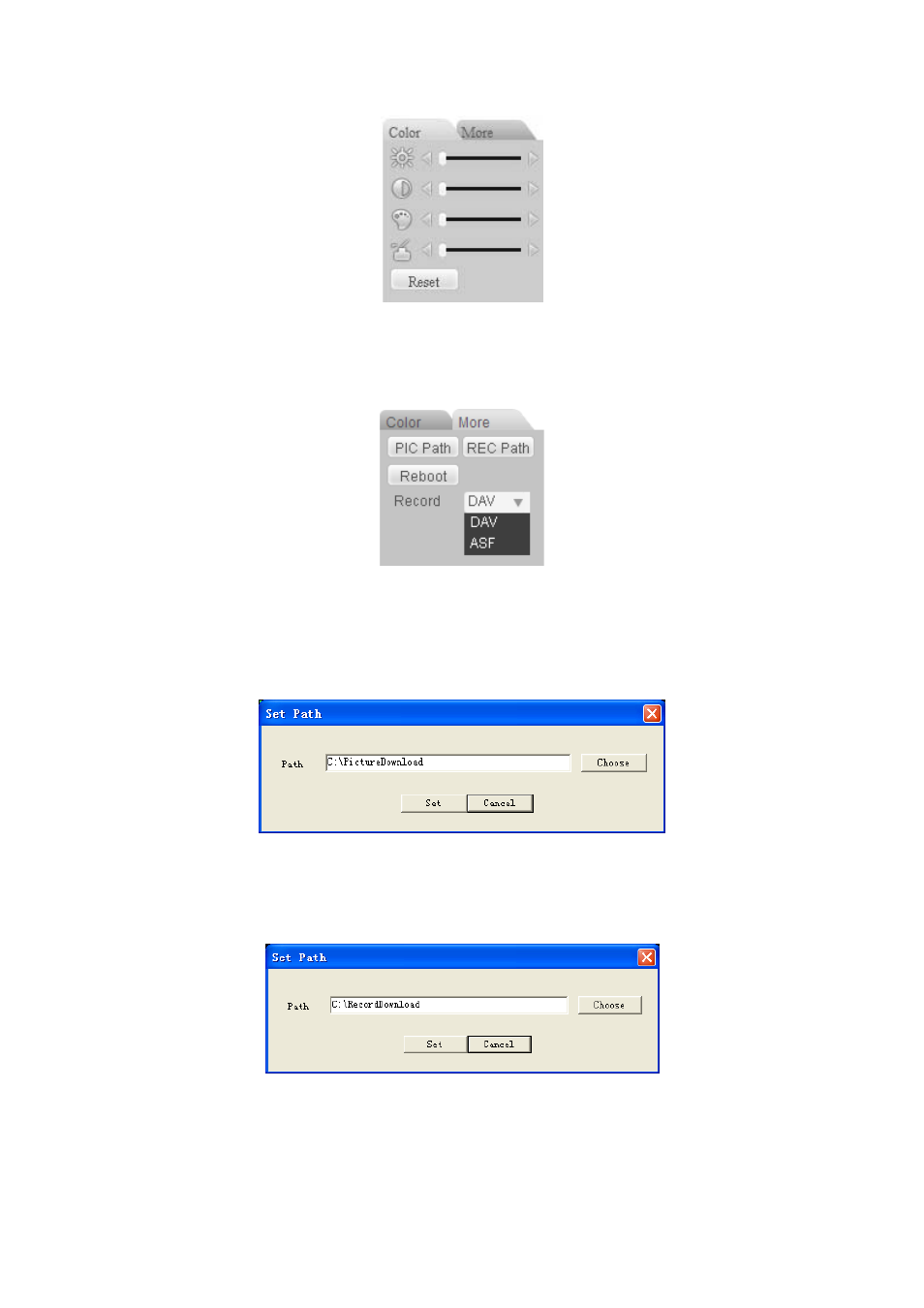

Figure 7-14

7.2.4 Picture Path and Record Path

Click more button in

X445H445H445H

Figure 7-14

X

, you can see an interface is shown as in

X446H446H446H

Figure 7-15

X

.

Figure 7-15

Click the record item; you can see there are two options: DAV/ASF.
Click picture path button, you can see an interface is shown as in

X447H447H447H

Figure 7-16

X

.

Please click choose button to modify path.

Figure 7-16

Click record path button, you can see an interface is shown as in

X448H448H448H

Figure 7-17

X

.

Please click choose button to modify path.

Figure 7-17

Click reboot button, system pops up the following dialogue box. See Figure 7-18,
Please click OK to reboot.
