57

z

Data bit: You can select proper data bit. The value ranges from 5 to 8.

z

Stop bit: There are three values: 1/1.5/2.

z

Parity: there are five choices: none/odd/even/space mark.

System default setup is:
z

Function:

Console

z

Baud

rate:115200

z

Data

bit:8

z

Stop

bit:1

z

Parity:

None

After completing all the setups please click save button, system goes back to the previous
menu.

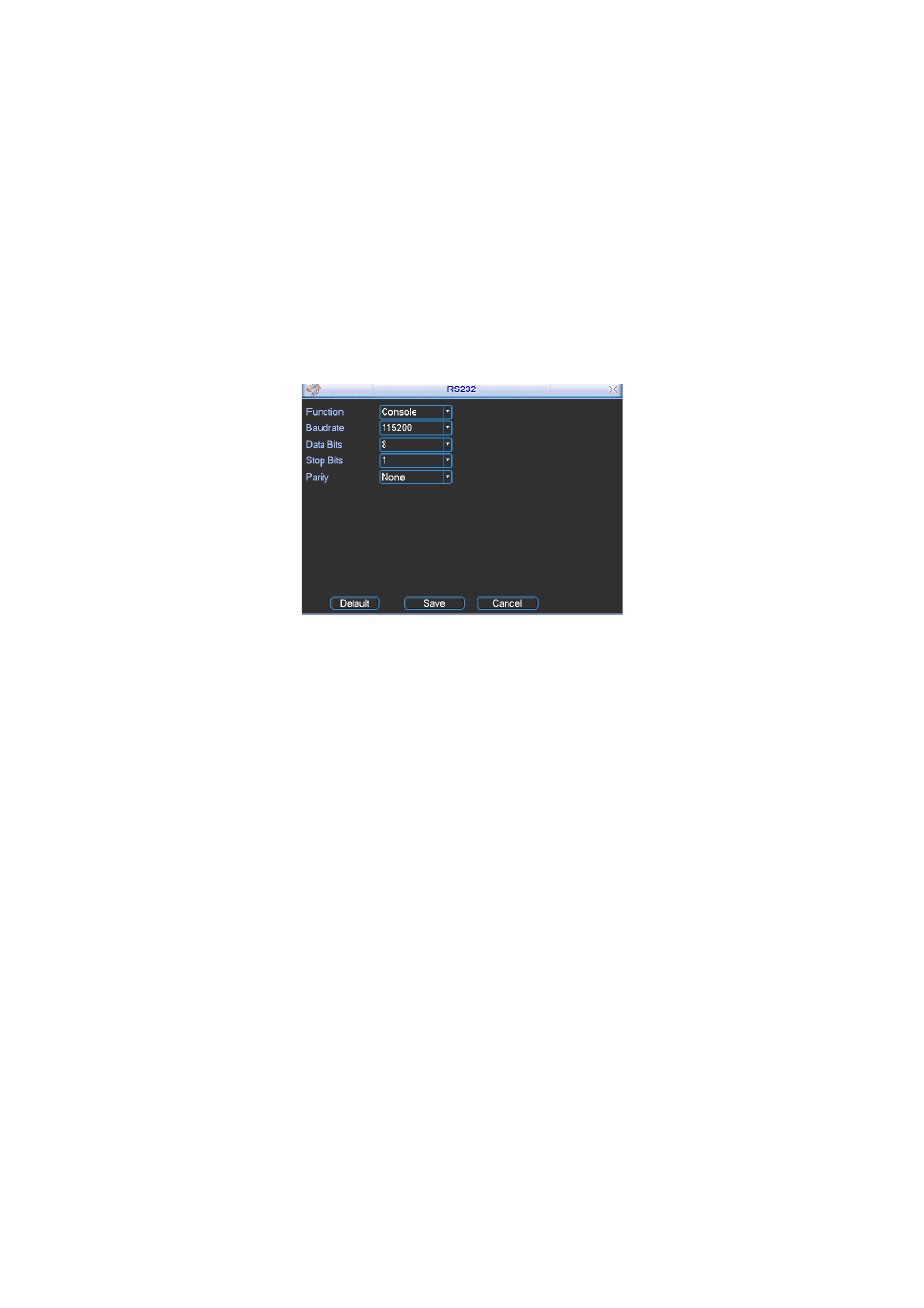

Figure 5-8

5.3.5 Network

Here is for you to input network information. See Figure 5-9.
z

IP address: Here you can input IP address.

z

DHCP: It is to auto search IP. When enable DHCP function, you can not modify

IP/Subnet mask /Gateway. These values are from DHCP function. If you have not
enabled DHCP function, IP/Subnet mask/Gateway display as zero. You need to
disable DHCP function to view current IP information. Besides, when PPPoE is
operating, you can not modify IP/Subnet mask /Gateway.

z

TCP port: Default value is 37777.

z

UDP port: Default value is 37778.

z

HTTP port: Default value is 80.

z

RTSP port: Default value is 554.

z

Max connection: system support maximal 20 users. 0 means there is no connection

limit.

z

Preferred DNS server: DNS server IP address.

z

Alternate DNS server: DNS server alternate address.

z

Transfer mode: Here you can select the priority between fluency/video qualities.

z

LAN download: System can process the downloaded data first if you enable this

function. The download speed is 1.5X or 2.0X of the normal speed.

After completing all the setups please click save button, system goes back to the previous
