7.3.3.6 Snapshot

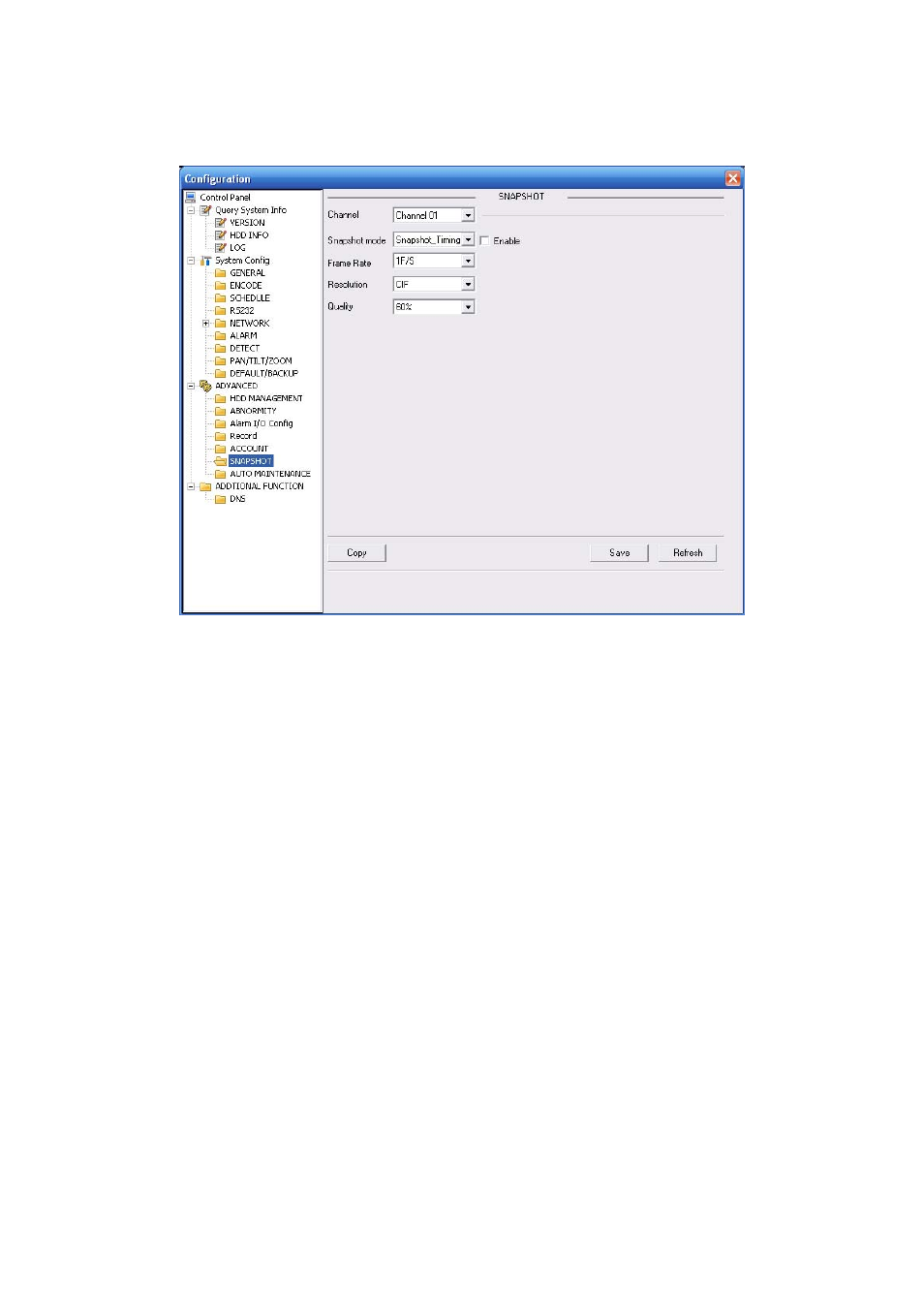

Snapshot interface is shown as in Figure 7-51.
Figure 7-51
Please refer to the following sheet for detailed information.
Parameter
Function
Channel
It is the monitor channel.
Snapshot mode
There are two modes: Timing and activation.
Frame rate
You can select from the dropdown list. The value ranges from
1f/s to 7f/s.
Resolution
different choices for different models.
Quality
You can select from the dropdown list. Here is for you to set
video quality.
There are six options: 10%, 30%, 50%, 60%, 80%, 100%.
100% is the best quality.
7.3.3.7 Abnormity
The abnormity interface is shown as below. See Figure 7-52.
