26

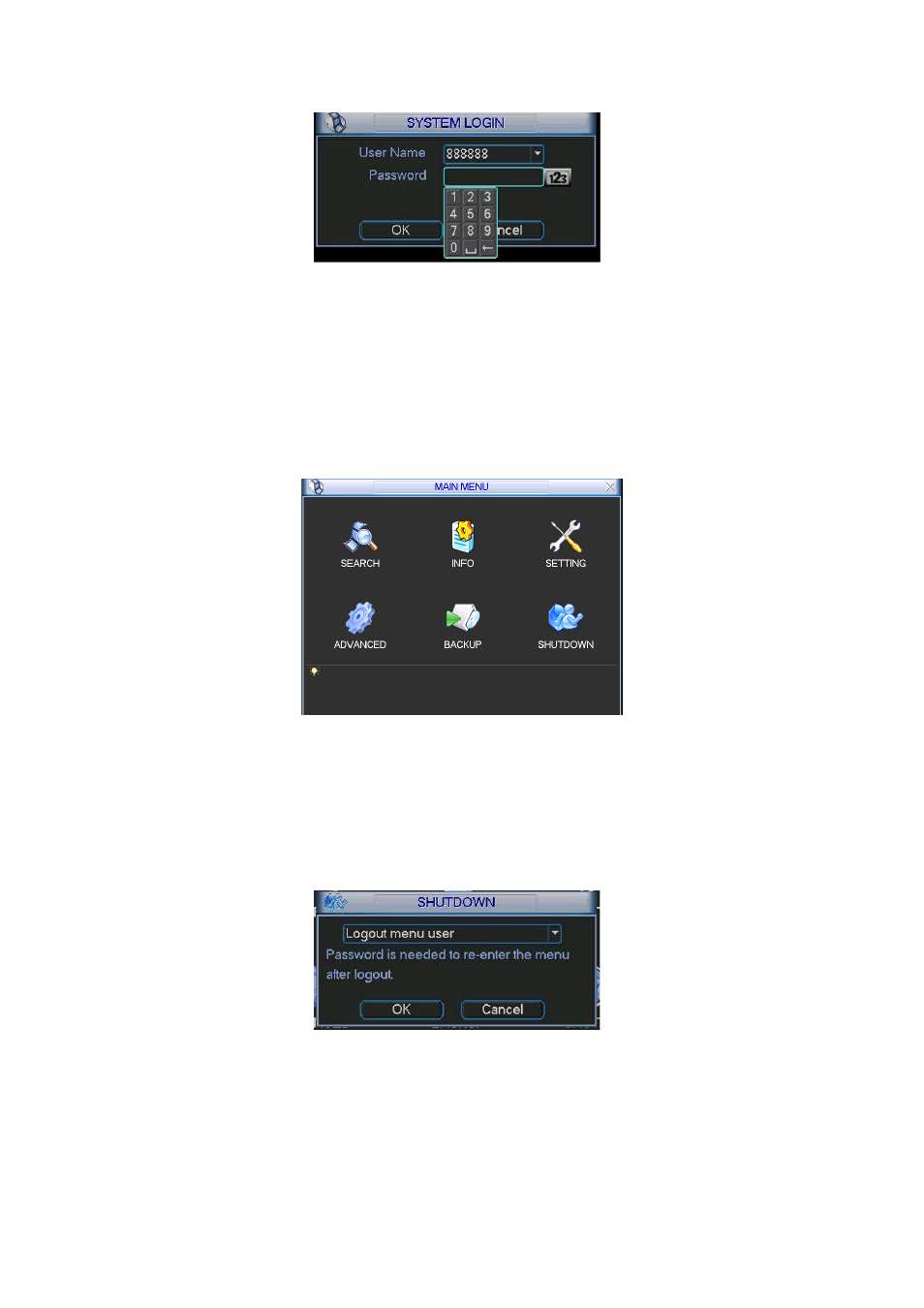

Figure 4-2

4.1.2 Main Menu

After you logged in, the system main menu is shown as below. See Figure 4-3.
There are total six icons: search, information, setting, backup, advanced and
shutdown.
You can move the cursor to highlight the icon, and then double click mouse to enter
the sub-menu.

Figure 4-3

4.1.3 Logout

There are two ways for you to log out.
One is from menu option:
In the main menu, click shutdown button, you can see an interface is shown as below.
See Figure 4-4.

Figure 4-4

There are several options for you. See Figure 4-5.
