7

2 Overview and Controls

This section provides information about front panel and rear panel. When you install this
series DVR for the first time, please refer to this part first.

2.1 Front Panel

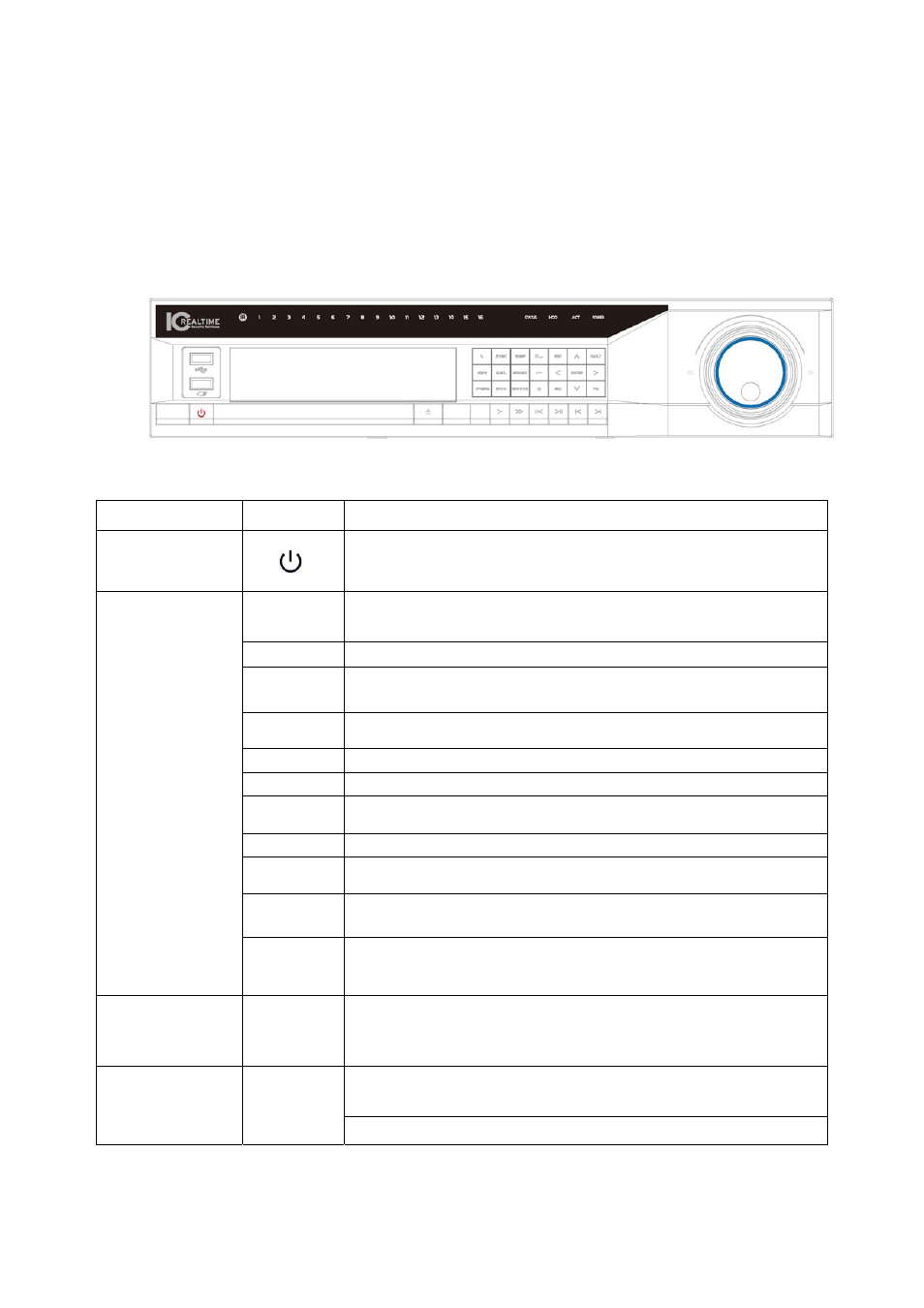

This series products’ front panel is shown as below. See Figure 2-1.

Figure 2-1

Please refer to the following sheet for front panel button information.

Name Icon

Function

Power button

Power button, press this button for three seconds to boot up
or shut down DVR.

0

In text mode, input number 0.
It is the space button.

1,.

In text mode, input number 1 and denotation.

2ABC

In text mode, input number 2(English character A/B/C)

3DEF

In text mode, input number 3(English character D/E/F)

4GHI

In text mode, input number 4 (English character G/H/I)

5JKL

In text mode, input number 5(English character J/K/L).

6MNO

In text mode, input number 6 (English character M/N/O)

7PQRS

In text mode, input number 7 (English character P/Q/R/S).

8TUV

In text mode, input number 8 (English character T/U/V).

9WXYZ

In text mode, input number 9 (English character W/X/Y/Z)

Number and
Character

-/--

If you want to input a number more than 10, please click this
button and then input.

Shift

…

In textbox, click this button to switch between numeral,
English(Small/Capitalized),donation and etc.

Activate current control, modify setup, and then move up and
down.

Up
Down

S、T

Increase/decrease numeral.
