IC Realtime H.264E Hybrid DVRs 4/8/16-CH Analog + 4/8/16-CH IP User Manual
Page 129

119

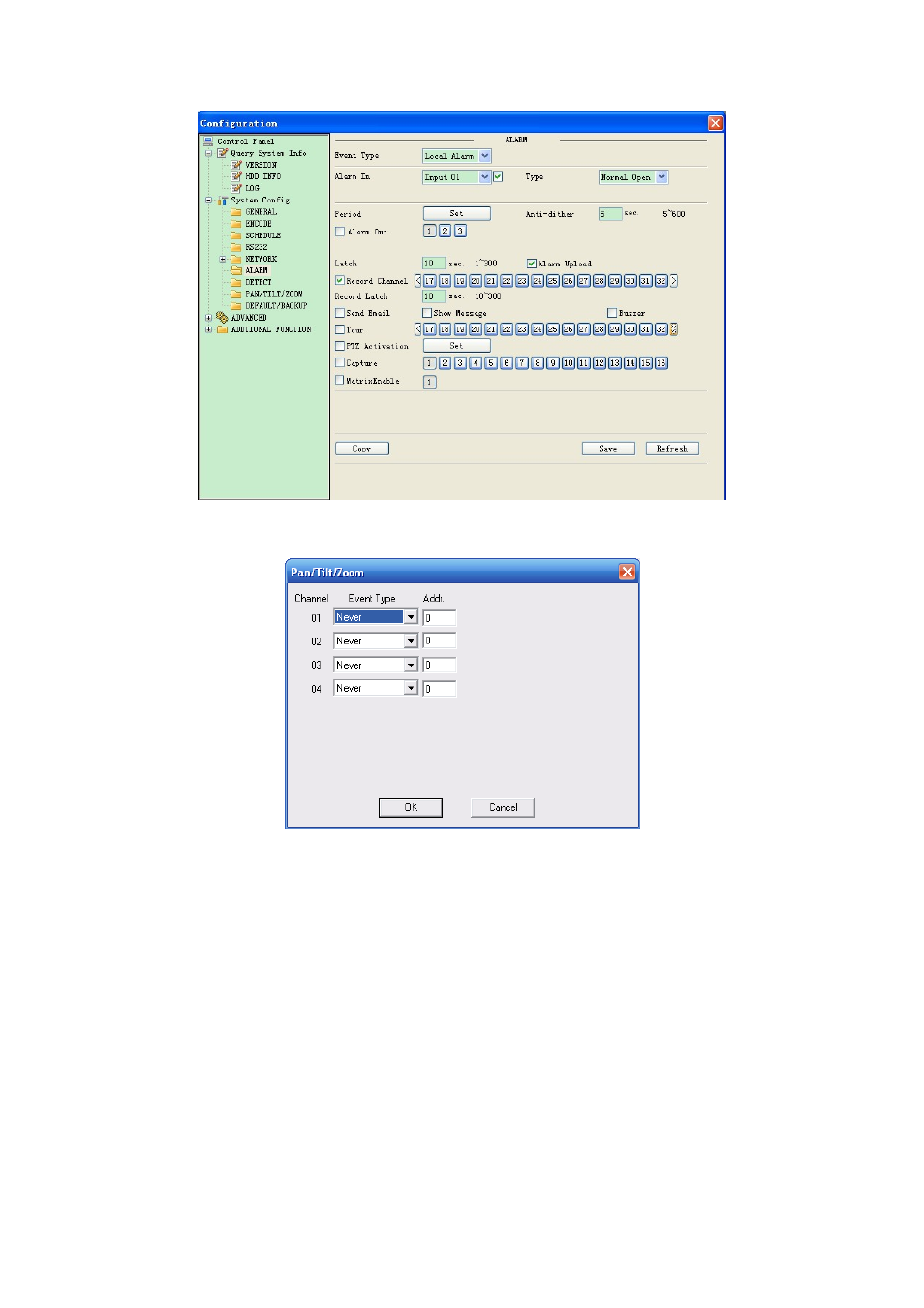

Figure 7-40
Figure 7-41
Please refer to the following sheet for detailed information.
Parameter Function
Event
Type
It includes local alarm/network alarm.
Local alarm: Device detects alarm from input port.
Network: Device detects alarm from network.
Alarm in
Select corresponding alarm channel.
Enable
You need to draw a circle here so that system can detect the alarm
signal.
Type
There are two options: normal open and normal close. NO becomes
activated in low voltage, NC becomes activated in high voltage.
Period
Alarm record function becomes activated in the specified periods.
