91

In

X415H415H415H

Figure 6-5

X

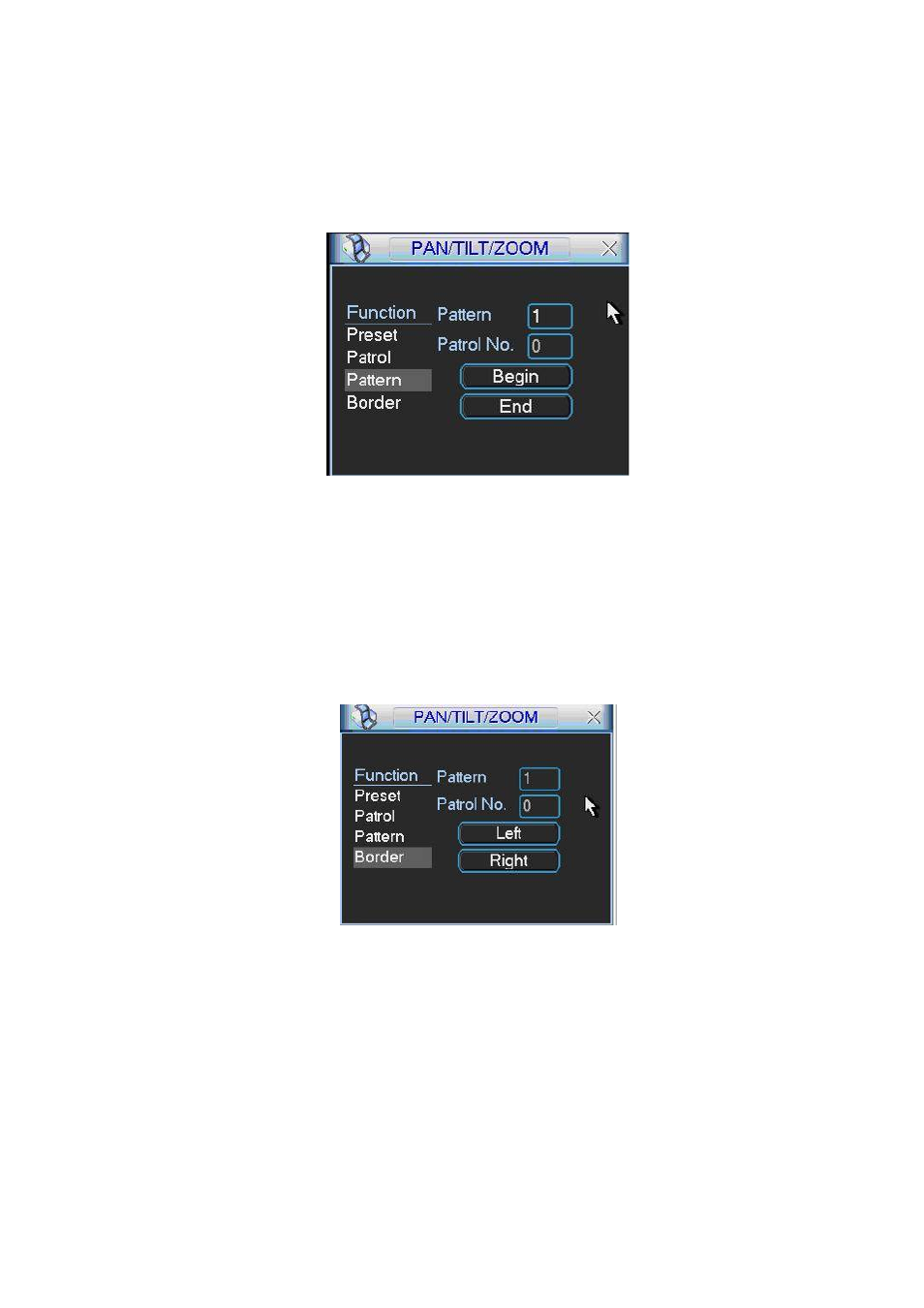

, click pattern button and then click begin button. The interface shows like

X416H416H416H

Figure 6-9

X

.

Please go to

X417H417H417H

Figure 6-2

X

to modify zoom, focus, and iris. Go back to

X418H418H418H

Figure 6-9

X

and click

end button.
You can memorize all these setups as pattern 1.

Figure 6-9

6.2.6 Activate Pattern Function

In

X419H419H419H

Figure 6-6

X

input mode value in the No. blank, and click pattern button.

6.2.7 Border Setup

In

X420H420H420H

Figure 6-5

X

, click border button. The interface is shown as in

X421H421H421H

Figure 6-10

X

.

Please go to

X422H422H422H

Figure 6-2

X

, use direction arrows to select camera left limit, and then please

go to

X423H423H423H

Figure 6-10

X

and click left limit button

Repeat the above procedures to set right limit.

Figure 6-10

6.2.8 Activate Border Function

In

X424H424H424H

Figure 6-6

X

, click auto scan button, the system begins auto scan. Correspondingly, the

auto scan button changes to stop button.
Click stop button to terminate scan operation.

6.2.9 Flip

In

X425H425H425H

Figure 6-6

X

, click page switch button, you can see an interface is shown as below. See

X426H426H426H

Figure 6-11

X

. Here you can set auxiliary function.
