9

USB port

To connect USB storage device, USB mouse.

Status
indication
light

Status

If there is Fn indication light, current status indication light is
null.

HDD
abnormal
i di ti

HDD

HDD error occurs or HDD capacity is below specified
threshold value, the light becomes red to alert you.

Remote
control
indication
light

ACT

Remote control indication light

Power
indication
light

Power

Power indication light

Record light

1-16

System is recording or not. It becomes on when system is
recording.

IR Receiver

IR

It is to receive the signal from the remote control.

Shuttle(outer
ring)

In real-time monitor mode it works as left/right direction key.
Playback mode, counter clockwise to forward and clock wise
to backward.

Jog(inner
dial)

Up/down direction key.
Playback mode, turn the inner dial to realized frame by frame
playback. (Only applies to some special versions.)

CD-ROM
button

Pop-up or insert the CD.

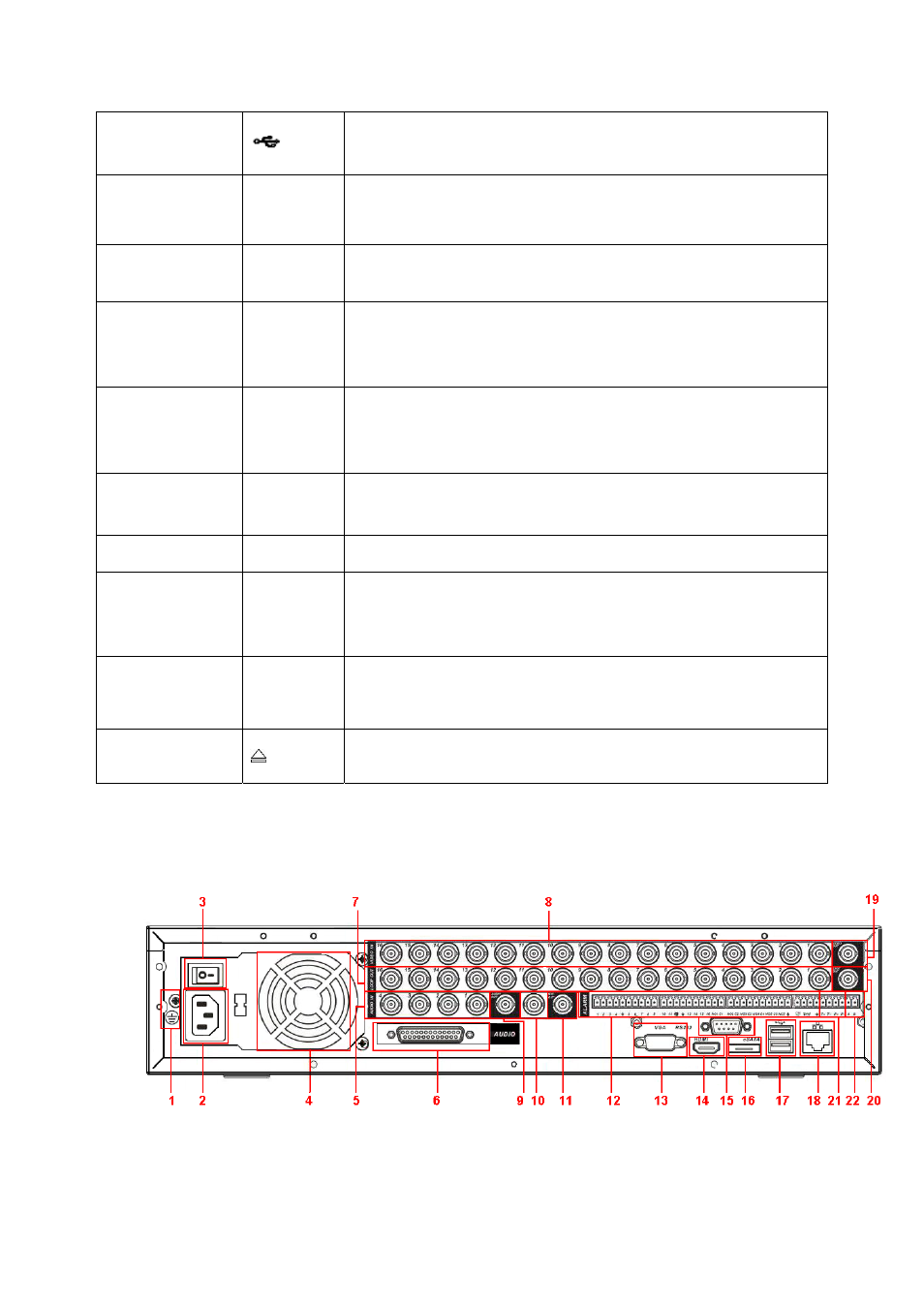

2.2 Rear Panel

This series products’ rear panel is shown as below. See Figure 2-2.

Figure 2-2

Please refer to the following sheet for detailed information.
