109

Parameter

Function

Save

You can click save button after you complete setup for one channel, or
you can complete the whole setups and then click save button.

Refresh

Click this button to get device latest configuration information.

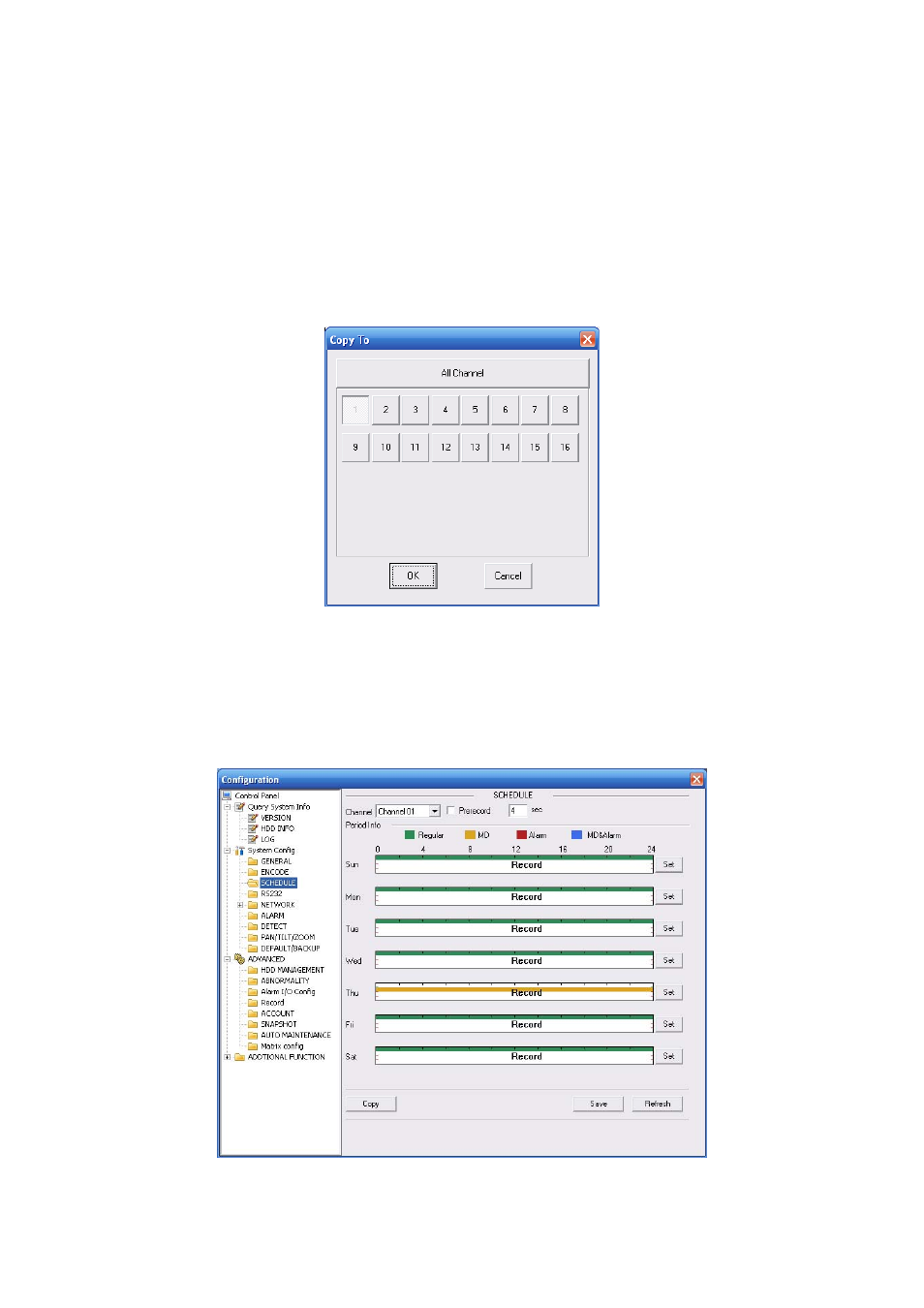

Click copy interface, the interface is shown as in

X456H456H456H

Figure 7-28

X

.

If you have completed the setup for channel 1, you can click 3 to copy current setup to
channel 3. Or you can click 2, 3, and 4 to copy current setup to channel 2, channel 3 and
channel 4.

Figure 7-28

7.3.2.3 Schedule

Here you can set different periods for various days. There are max six periods in one day.
See

X457H457H457H

Figure 7-29

X
