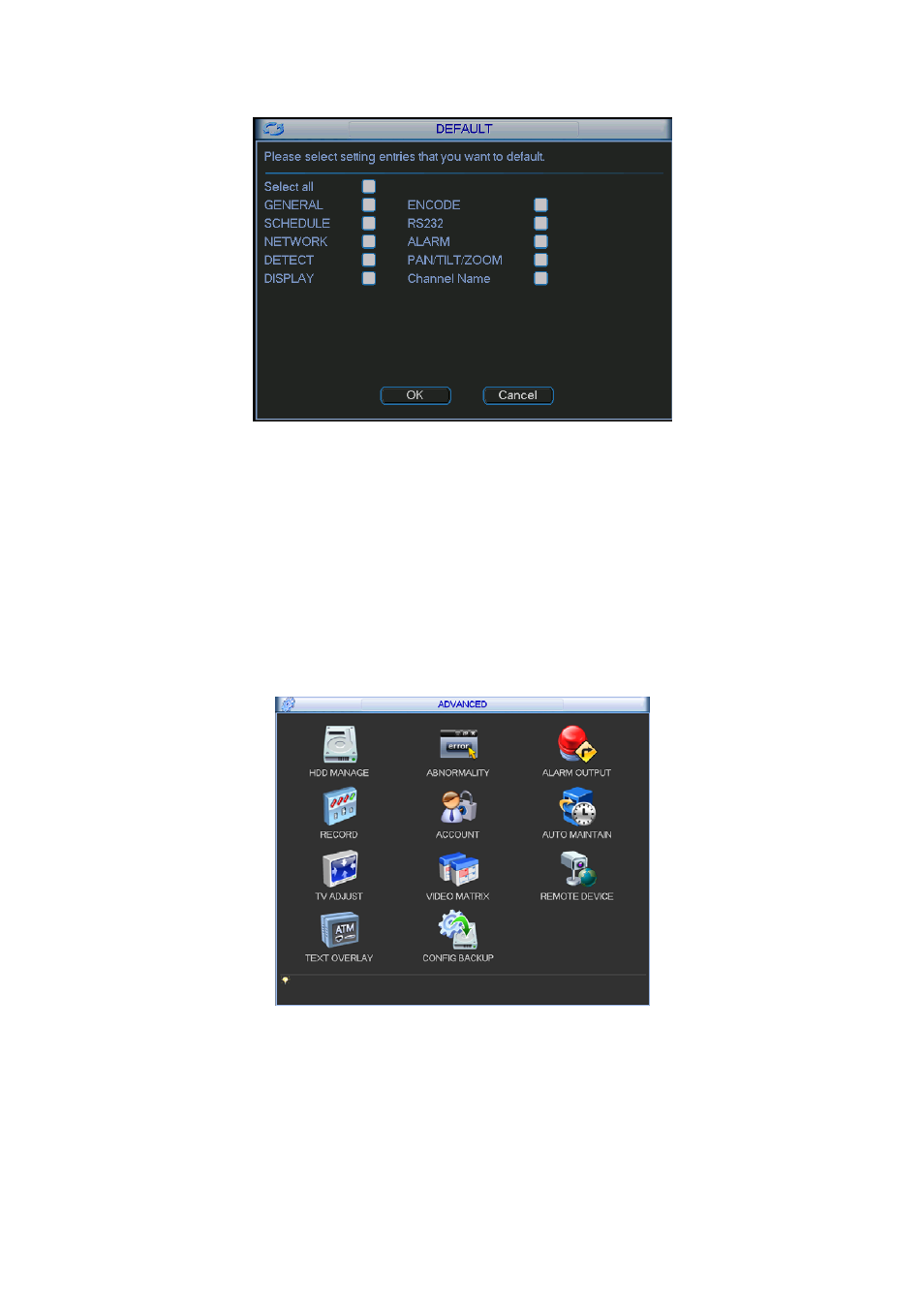

Figure 5-28

5.4 Search

Please refer to chapter 4.3 Search.

5.5 Advanced

Double click advanced icon in the main window, the interface is shown as below. See
Figure 5-29.There are total eight function keys: HDD management, alarm output,
abnormity, manual record, account, auto maintenance, TV adjust and video matrix.

Figure 5-29

5.5.1 HDD Management

Here is for you to view and implement hard disk management. See Figure 5-30.
You can see current HDD type, status, capacity and record time. When HDD is working
properly, system is shown as O. When HDD error occurred, system is shown as X.
