19

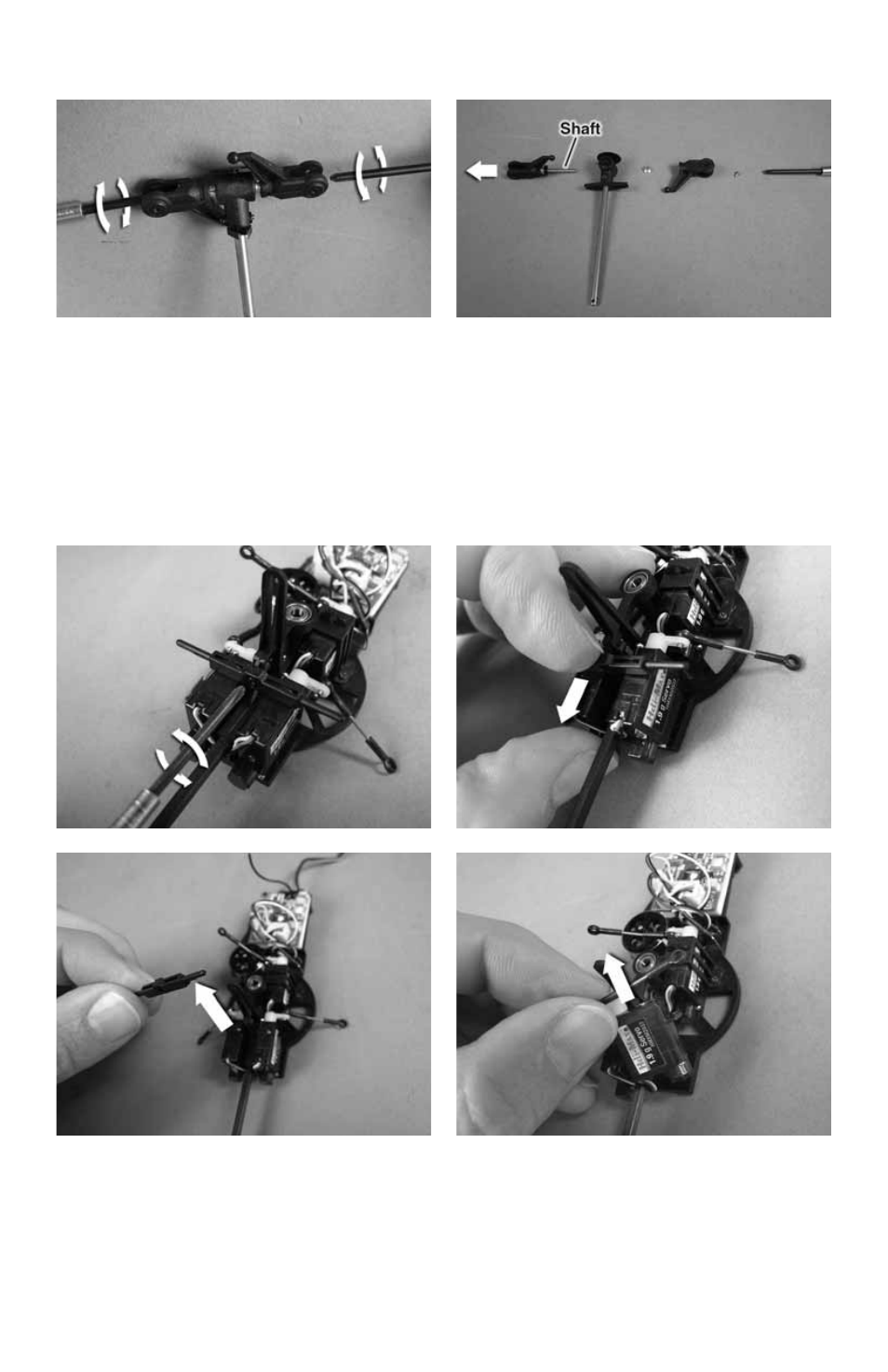

REMOVING THE FEATHERING SHAFT
NOTE: You will have to provide a second small phillips screwdriver for this step.
Remove the blades from the blade grips as described above. Place a screw
driver in the end of each blade grip and engage the screws. Unscrew the screws
and one of the two will remove. Slide the blade grips off, being very careful to
not lose any parts. Note the direction of the silver spacer washers.
REPLACING AN AFT SERVO
Remove the canopy. Remove the link from the swashplate. Unscrew the screw
from the attachment bar. Carefully place pressure on the bar back, and then
slide off the servo tabs.
Snake the wire out of the loom and then unplug the servo.
