18

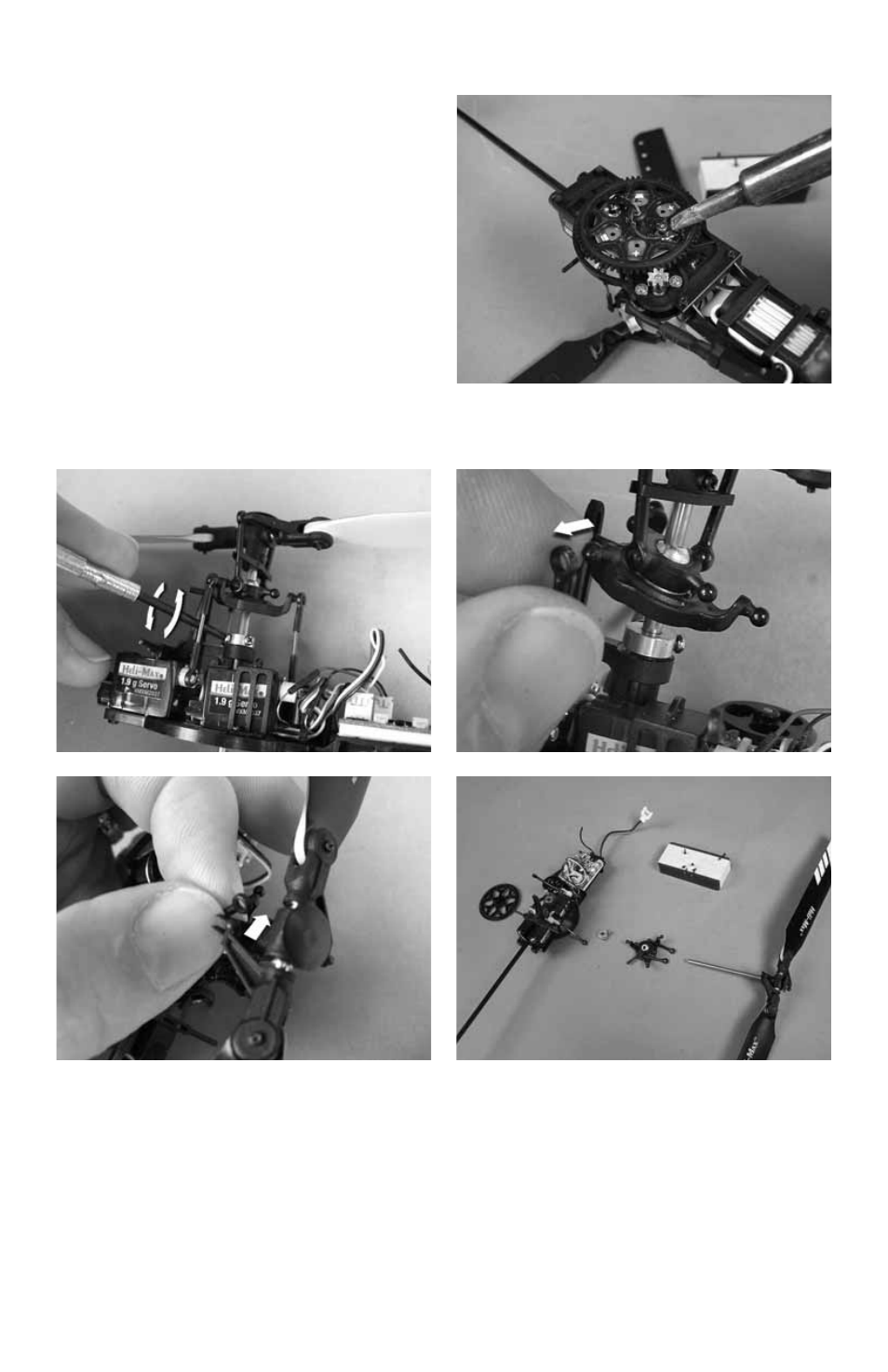

REMOVING THE MAIN GEAR AXE SSL
After removing the landing gear, scrape
away any adhesive holding the wires to
the solder lugs. Unsolder the two wires
from the gear contact posts. Using the
supplied screwdriver, remove the screw
that holds the main gear in place. Slide
the main gear away, carefully snaking
the two wires though the center hole.
REMOVING THE MAIN SHAFT
Remove the landing gear, and remove the main gear. Using the supplied
screwdriver loosen the two screws on the lock collar. Remove the ball links that
attach the servo pushrods to the swashplate. Remove the links from the blade
grips. Slide the main shaft and head from the helicopter and remove the screw
from the head block. Slide the main shaft away. NOTE: When reassembling,
it’s important to set the shaft lash using the lock collar so as not to be too loose
or too tight.
