1-4 Optional Accessories
Item Part number
GPS Antenna AEG002
Y cable LE033
B45 Transducer (Bronze Thru-Hull
600 W 200/50 kHz) TD002
P79 Transducer (In Hull 600 W
200/50 kHz) TD001
2 GETTING STARTED

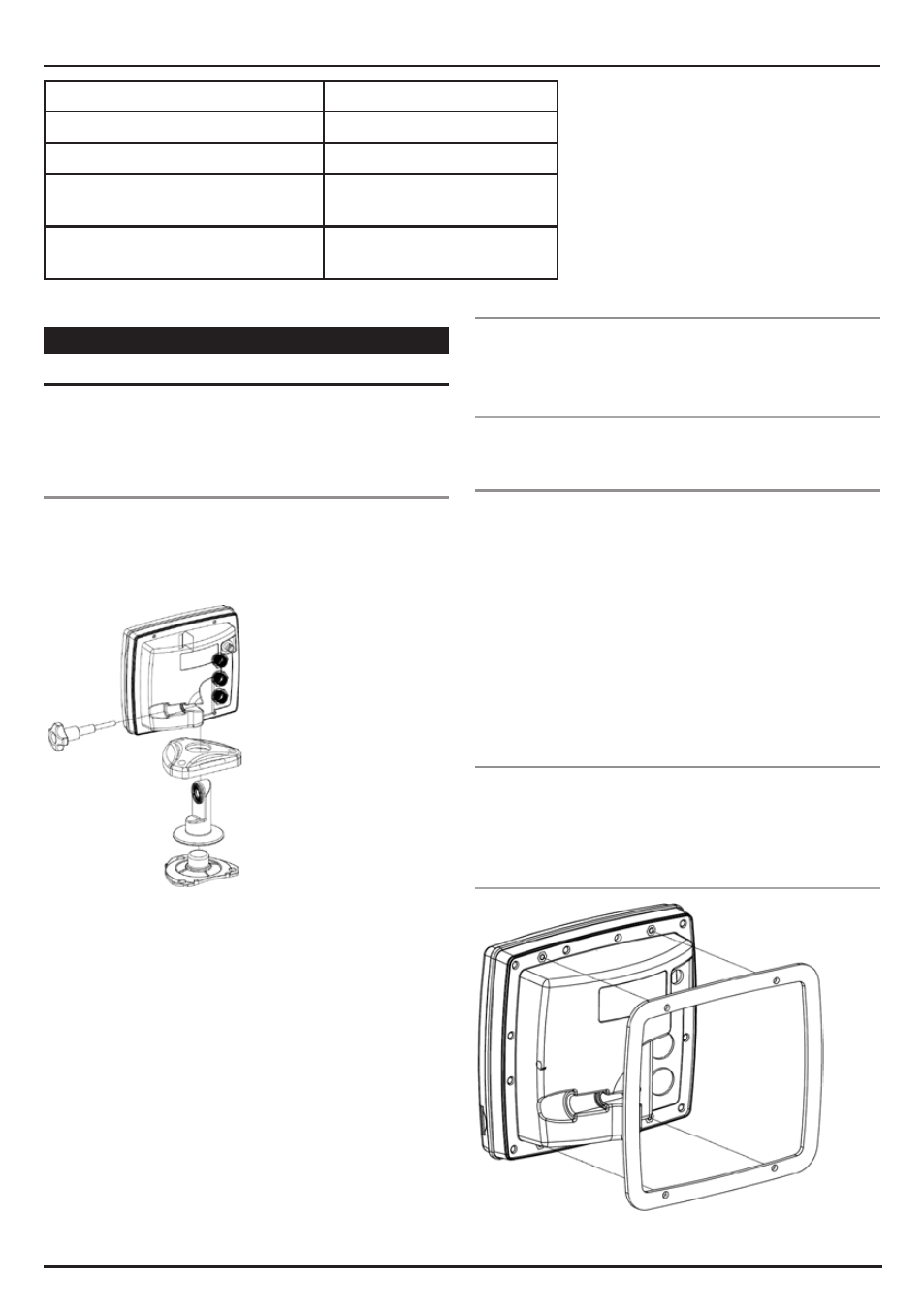

2-1 Mounting the Unit
The chartplotter is supplied with a bracket and flush
mounting kit. You can choose a method of installation
according to your preference.
2-1-1 Bracket Mounting
Before installing ensure the area the bracket is mounted to is
strong enough to support the weight of the GPS chartplotter.
After the location is found, attach the mounting base to the
area using the supplied hardware.
Mounting the display Unit:
1 Hold display and find mounting groove on back of display.
2 Gently push display onto bracket ensuring groove on back
of display slides onto bracket.
3. Turn knob clockwise to lock.
Removing the display unit:
1. Turn the unit off
2. Turn the knob counter clockwise
3. Pull the display unit off bracket.
Note: The G142C/G142CFD with an internal GPS antenna is
designed to be bracket mounted or flush mounted. However,
if you flush mount inside of your boat, GPS performance can
be reduced.
2-1-2 Flush Mounting
1 Find a suitable location for flush mounting, tape flush
mount template to location.
2 Drill a hole in the area of the cutout.
3 Cut out area with a jig saw.
4 Drill four holes as marked for mounting studs.
5 Install the mounting studs on the chartplotter and insert
them into the mounting holes.
6 Attach the chartplotter to the mounting location by
attaching the supplied hardware to the mounting studs.
Note:
1 If you flush mount, you will need an optional
external GPS antenna.
2 Before Drilling holes make sure there is enough space to
mount the chartplotter and that there are no obstructions.
