Page 44

12 mm drill

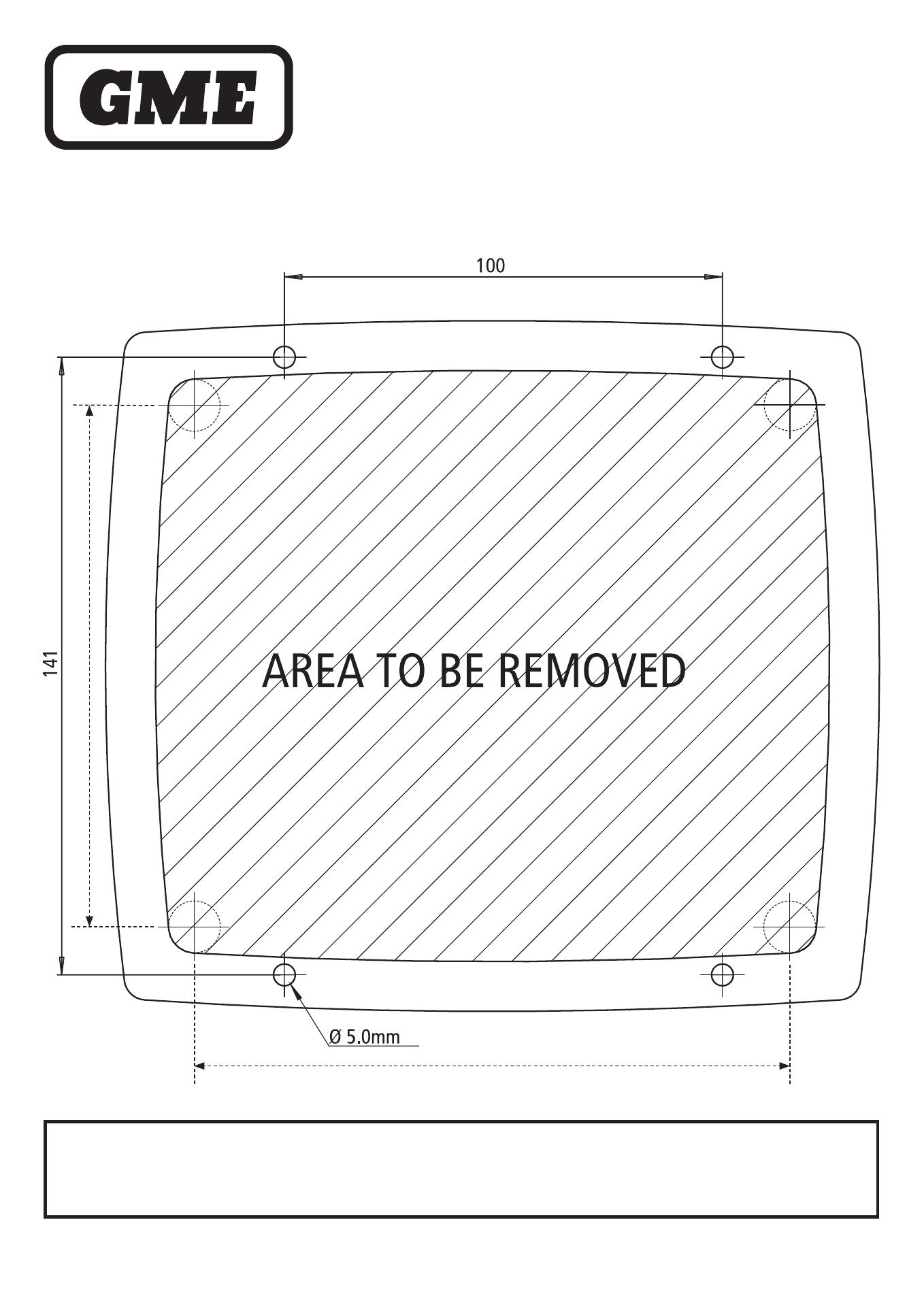

Flush Mount Template

G•Plot G142C, G•Fish G142FD & G•Combo G142CFD

(IMPORTANT : Position template this side up before making holes)

12 mm drill

136 mm

Part Number: 310513 Drawing Number: 45327-1

12 mm drill

119 mm

To keep this original template accurate,

ensure that you print at 100% size and check measurements after printing.

FRONT VIEW

TOP

BOTTOM
