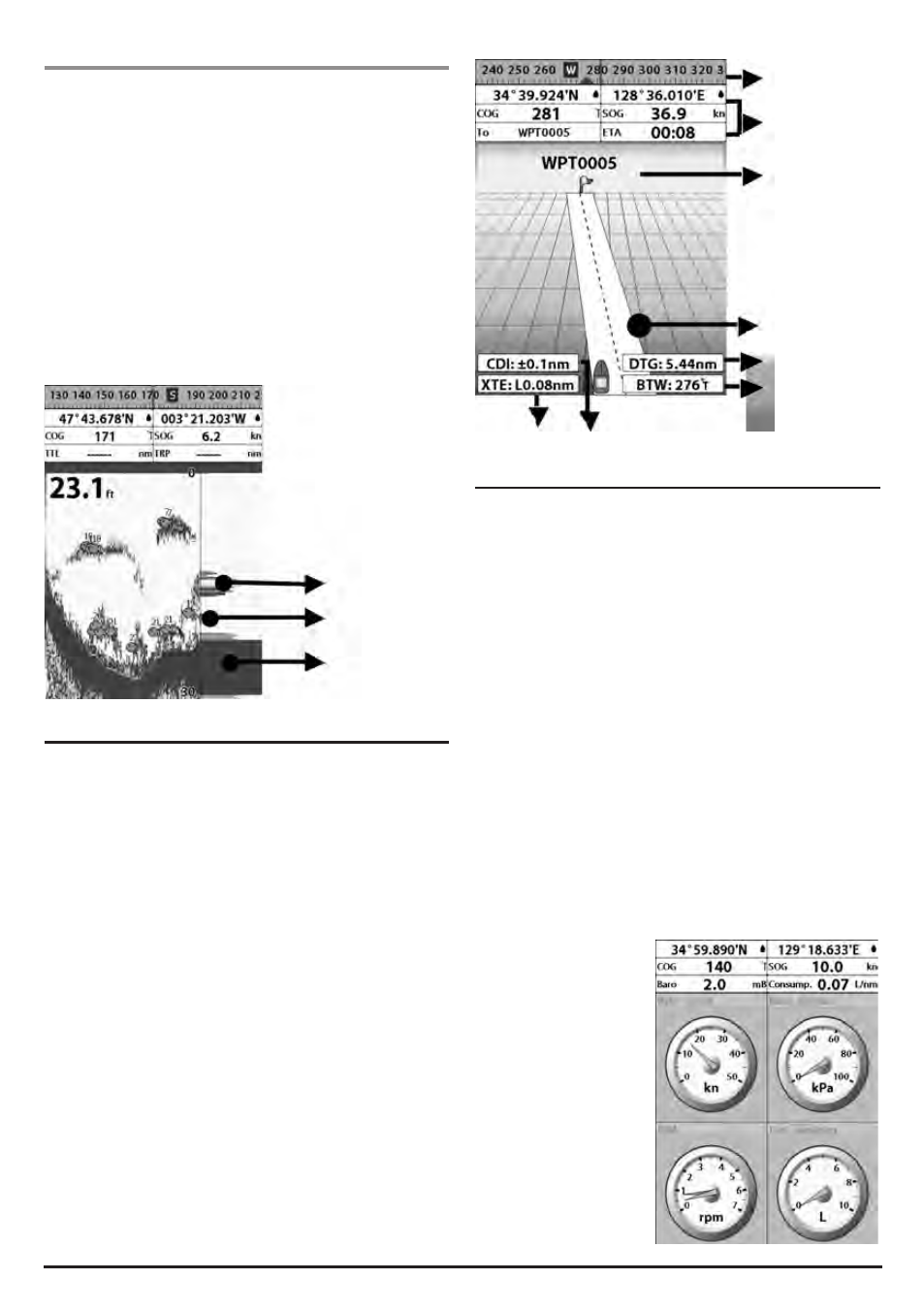

3-5-11 Split A-Scope
This display shows echoes at each transmission with
amplitudes and colours proportional to their intensities; the
right of the screen is useful for estimating the kind of fish
schools and bottom nature.
Echo strength colour code varies from weakest (blue) to
strongest (red).
1 Echoes from fish and the bottom
2 Unwanted noise echoes.
3 The strongest echo, usually from the bottom.
3-6 Highway
The Highway window shows a 3D view of the vessel traveling
through the water when navigating to a destination point.
To go to the Highway window, press PAGE and select
Highway icon.
The Highway window shows:
1 Compass.
2 Data bar.
3 Destination waypoint.
4 Boat’s plotted course to destination.
5 DTG scale (Distance To Go).
6 BTW scale (Bearing to waypoint).
7 CDI (Course Deviation Indicator).
8 XTE scale (Cross Track Error).
3-7 Gauges
The Gauges window displays all the information you
need during navigation such as water, engine, fuel related
information, etc.
To select the Gauges window, press PAGE and select Data
icon.
Selecting a Gauges layout
The Gauges window can show one of seven gauge layouts.
To select a layout from the Gauges window:
1 Press MENU and select Gauge Layout.
2 Select one layout.
1 Press MENU and select
Gauge Setup then the
upper left side gauge
will be highlighted.
2 Select the gauge you
want to change and
press ENT.
3 Select the data type
you want to display by
pressing ENT.
4 Press ESC to save
changes.
1
1
2
2
3
3
4
5
6
7 8
To change a gauge displayed in a layout in
Data display:
