4WS Mixes
4WS) S-MIX
(Preparation)
Since this function is used by switching the type of 4WS with
a switch, the switch used by the function select switch func-
tion (page 88) is set.
1
(4WS type selection)
Operate the (JOG) button up and down and select the set-
ting item "MODE". Select the type by pressing the (+) or (-)
button.
"OFF"
:Function OFF (front only)
"2TYP" :Front side only, reverse phase switching
"3TYP" :Front side only, reverse phase and same phase switching
"4TYP" :Front side only, reverse phase, same phase, and rear side only switching
4WS mixing adjustment

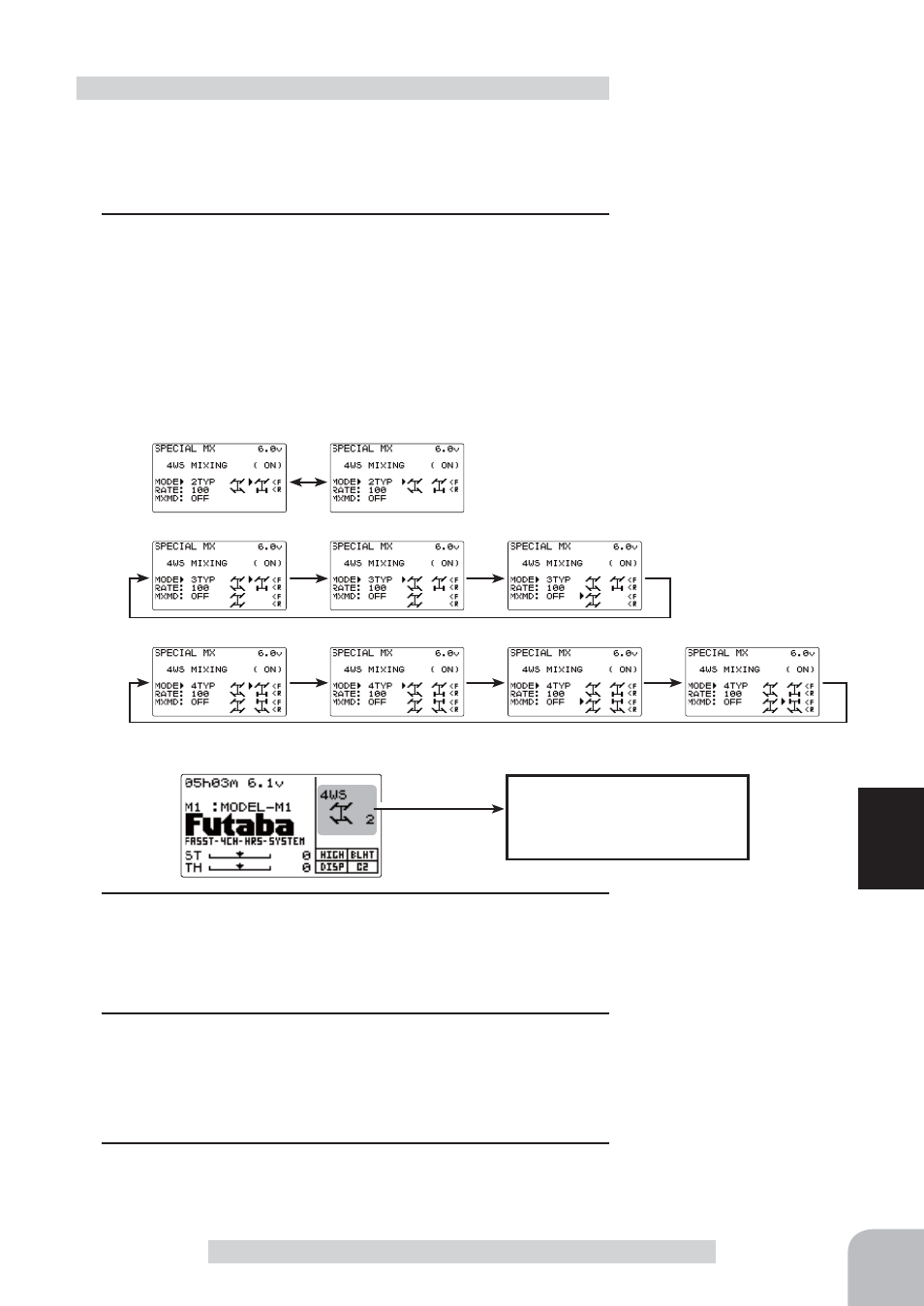

"Switched in the order shown in the figure below by set SW
2
(Rear side travel adjustment)
Operate the (JOG) button up and down and select setting
item "RATE". Adjust the rear side travel with the (+) or (-) but-
ton.
3
(Mix mode setting)
Operate the (JOG) button up and down and select the setting
item "MXMD". Set the mix mode with the (+) or (-) button.
"OFF" The EXP function of the 1st CH and other settings are not mixed.
"MIX" The EXP function o the 1st CH and other settings are mixed.
4
To end setting, return to the opening screen by pressing the
(END) button twice (for direct selection, press the (END) but-
ton once)
When the set SW is operated in
the opening screen state, the 4WS
mode is displayed here for about 2
seconds.
Function ON/OFF (MODE)
OFF, 2TYP, 3TYP, 4TYP
Mixing mode (MXMD)
OFF, MIX
Initial value: OFF
Rear rate (RATE)
0 ~ 100
Initial value:100
"2TYP" Front side only and reverse phase switching
"3TYP" Front side only, reverse phase, and same phase switching
"4TYP"
Front side only, reverse phase, same phase, and rear side only switching
