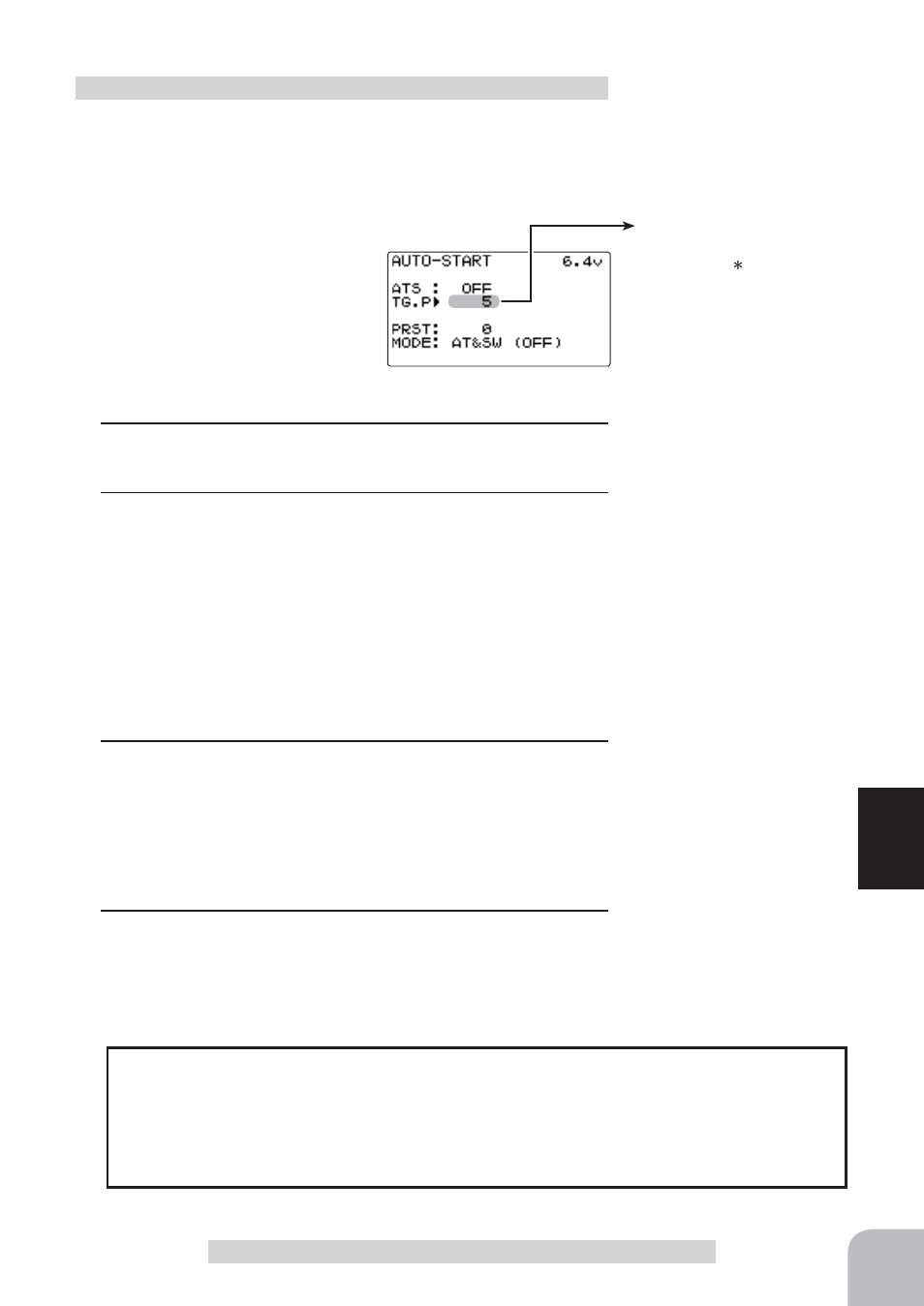

background image

Setup item selection
- Select by (JOG) button up or down operation.

Setup items
ATS

: READY setting

TG.P :

Throttle

position

PRST

: Preset position

MODE : Function selection

67

Fu
n

c

tio

n

-If the throttle trigger is moved to the set position while "READY" is flashing, the
throttle servo will move to the set position. The throttle operation wait state is reset
when the throttle trigger is returned.

-When using the Start function, always set the function by performing step 3 above
each time.

Start Function, Engine Cut "START"

(Preparation)

- Select the setting item "MODE" by (JOG) button up or down

operation. Press the (+) or (-) button and select "AT&SW".

- Select setup item "TG.P" and make the following adjustments.

1

(Throttle position setup)

Set the throttle position by pressing the (+) or (-) button.

2

(Preset position setup)

Select the setting item "PRST" by (JOG) button up or down

operation, and use the (+) and (-) buttons to set the preset

position of the throttlle servo.

"B100" ~ "B1" :Brake side
"0" :neutral
"F1" ~ "F100" :Forward side

Setting Example: (When ESC used with an electric car)

Set the preset position to F75% at EPA100%.

3

("READY" setting)

Select the setting item "ATS" by (JOG) button up or down op-

eration, and press the (+) and (-) buttons simultaneously for

about 1 second. "READY" blinks on the screen and the sys-

tem enters the READY state. Throttle trigger operation starts

the function.

4

When ending setting, return to the initial screen by pressing

the (END) button twice (for function menu screen, press the

(END) button once).

Start function adjustment

Adjust button
- Adjust with the (+) and (-) but-

tons.

- Return to the initial value by

pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).

Setup item selection
- Select by (JOG) button up or

down operation.

READY setting (ATS)
OFF

: off state

READY : Ready state
ACT

: on state

Preset position (PRST)
B100 ~ B1, 0, F1 ~ F100
Initial value: 0

Trigger position (TG.P)
5 ~ 95
Initial value: 5

When the trigger is moved to the

HI side, and the trigger position
is exceeded, " " is displayed in
front of the number.
