Function

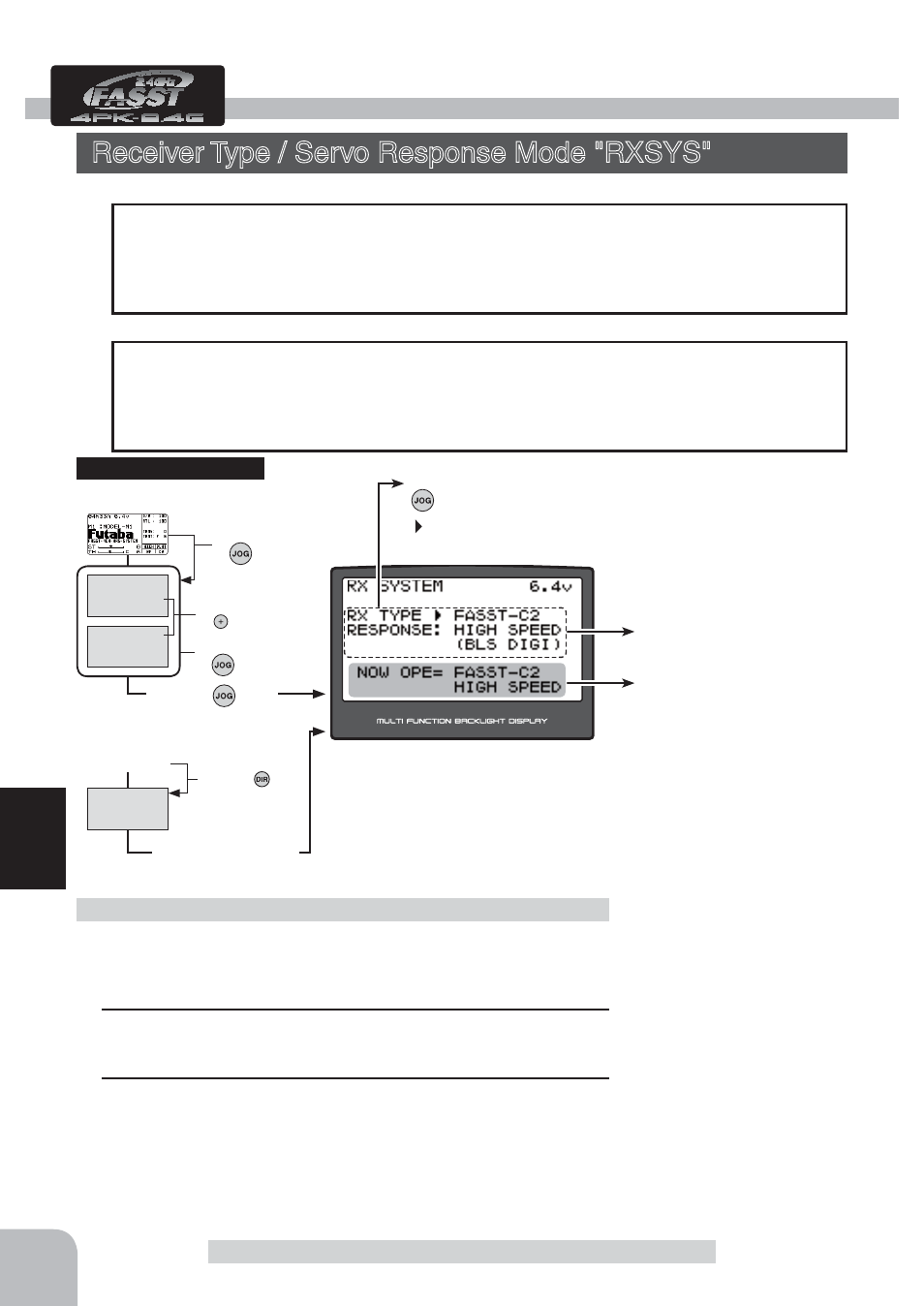

Receiver Type / Servo Response Mode "RXSYS"
Receiver Type/Servo Response Mode RXSYS
Receiver
There are two types of Futaba 2.4GHz receivers for cars depending on the system dif-
ferences: C1 type and C2 type. The R603FS and 603FF are C1 type and the R614FF
supplied with the 4PKS set as standard is C2 type. For the R603FS and R603FF set RX
TYPE to
" FASST-C1 ". For the R614FF and R604FS/FSE set RX TYPE to " FASST-C2 " .
When the receiver type and servo response are changed
and when is model of a different receiver type and servo
response was selected, turn the transmitter power off
and on. Radio waves are output by the type set at that
point.
RX TYPE
FASST-C1, FASST-C2
RESPONSE
HIGH SPEED (BLS DIGI)
NORMAL (GENERAL)
(Preparation)
Select the item to be set by (JOG) button up or down opera-
tion.
1
(Writing to memory)
Press the (+) or (-) button and set the RX TYPE or RESPONSE.
2
In order for the change to occur you need to cycle the power
switch (off/on) to make the change complete.
Rx type / Servo response mode selection
RX TYPE / RESPONSE selecrion
- Select by (JOG) button left or
right operation.
Select button
- Select with the (+) or (-) but-
tons.
HIGH SPEED or NORMAL servo response mode can be selected. However, the HIGH
SPEED mode is for Futaba digital servos (including BLS Series brushless servos) use
only. When using other servos, select the NORMAL mode. All servos, including digi-
tal servos, can be used in the NORMAL mode.
Servos
Mode currently operating.
Mode currently set in memory.
