Communication port (interior left side)
Cover
DSC cord for T4PK (option)
Use the optional Adaptor cord and con-
nect both the DSC cord and the power
SW to B/C or connect the power switch
to a vacant channel of the R614FF.
125
Refer
e
nce
DSC cord
When the T4PKS transmitter and R614FF, R604FS or R603FS/FF receiver are connect-
ed with the DSC cord, the servos can be operated without emitting radio waves. (DSC
function)

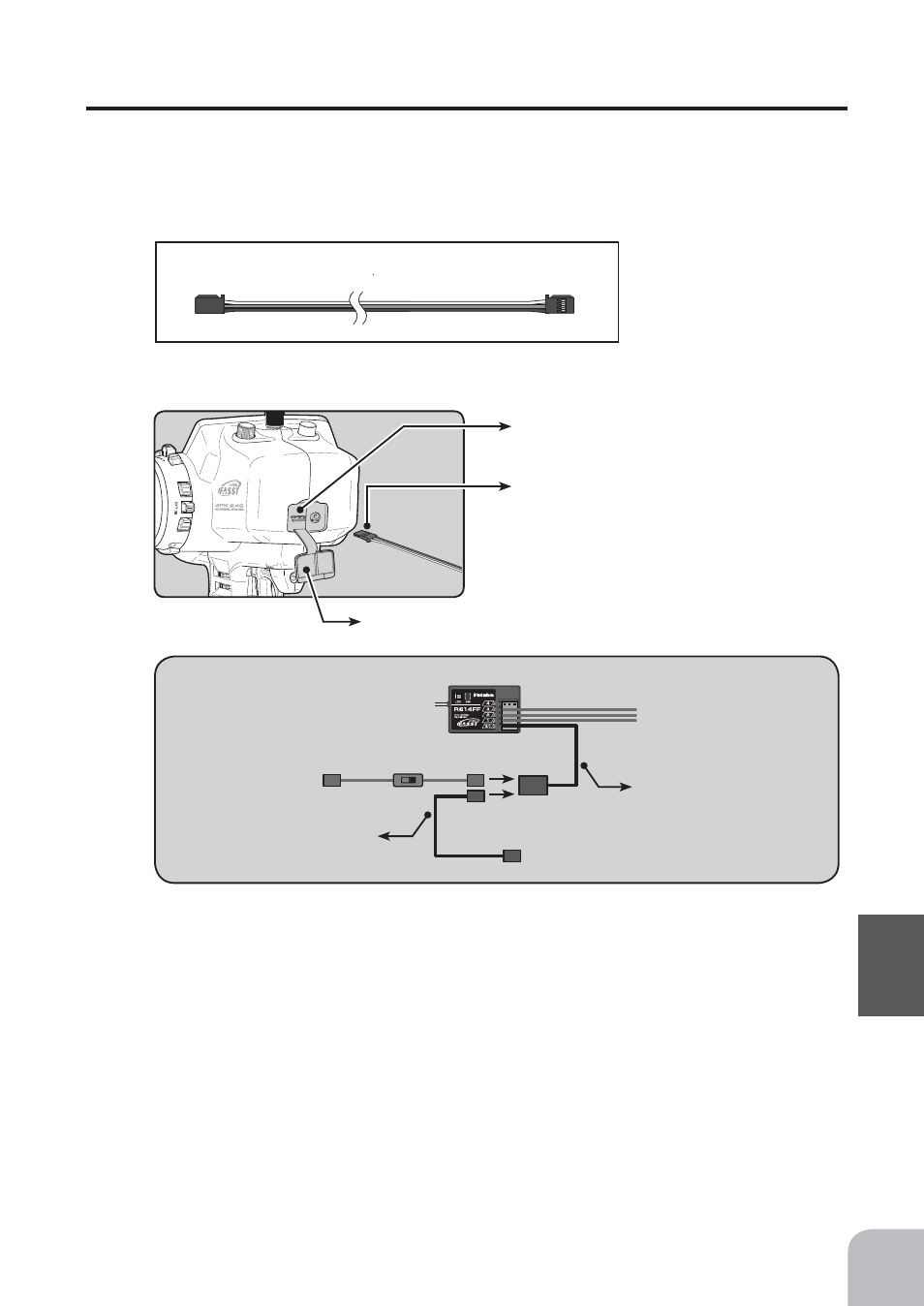

Part name
DSC cord for T4PK
Connection
To servos
To transmitter Communication port
DSC cord
Y-Adaptor cord
Connect the T4PKS and receiver using the DSC cord, after turning off the T4PKS and
receiver power switches.
Turn on the display switch of the T4PKS and then turn on the receiver power. If this se-
quence is not followed, a malfunction could occur.
You can check the servo operation without emitting radio waves.
After checking the servo operation, disconnect the DSC cord and then cycle power of
the receiver before operating the T4PKS. If this sequence is not followed, a malfunction
could occur.
