Fire Rated Enclosure
Installation Technique and Design
Advisory Manual

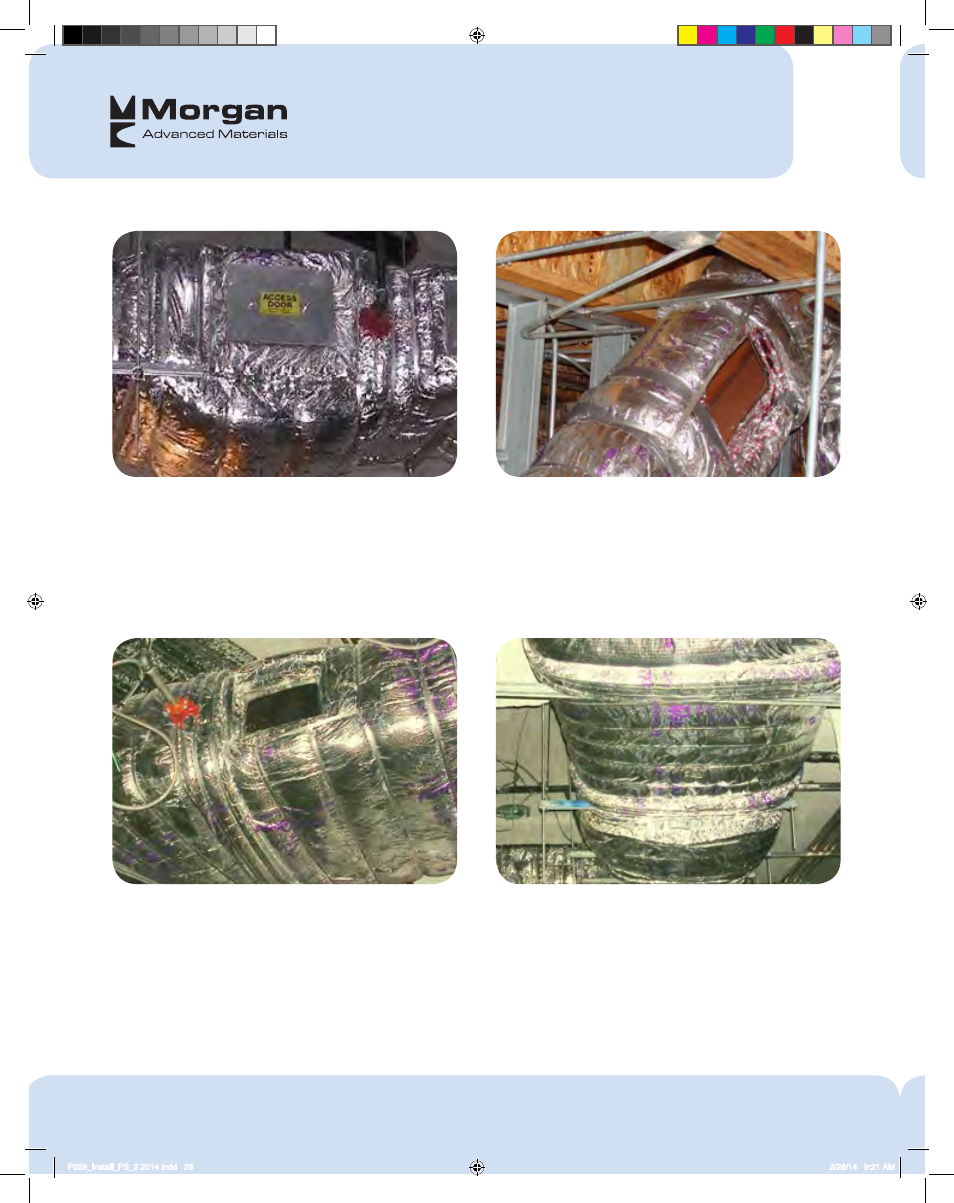

Good Installation Examples
• Two layers of insulation tight against duct
• ½” Stainless steel bands on proper spacing
• Hangers dropped outside insulation
• Firestop caulk used to seal penetrations
• FastDoor™ XL system for access doors
• Two layers of insulation tight against duct
• ¾” SS Bands on proper spacing
• Insulation properly cut for FastDoor XL
installation, tape sealed edges
• Firestop caulk used to seal penetrations
• Two layers of insulation tight against duct
• Installed with zero clearance to wood frame
• Insulation properly cut for FastDoor XL
installation, tape sealed edges
• Single layer for HVAC duct shown
• 6” collars centered over joints, with two bands
1-1/2” from each edge
• Proper hangers, supports, spacing
• Shown using 48” blanket to minimize joints
