Fire Rated Enclosure
Installation Technique and Design
Advisory Manual
> 24" (610)
The integrity of the Morgan Thermal Ceramics duct systems is limited to the quality of the installation.
Minimum 12 gage (3) steel insulation pins
XL004-3
CENTERS
10 1/2" (267)
LEGEND
1
VARIES
BOTTOM VIEW
6" (152)
To Prevent Blanket Sag
FOR DUCT SPANS > 24" (610) WIDE

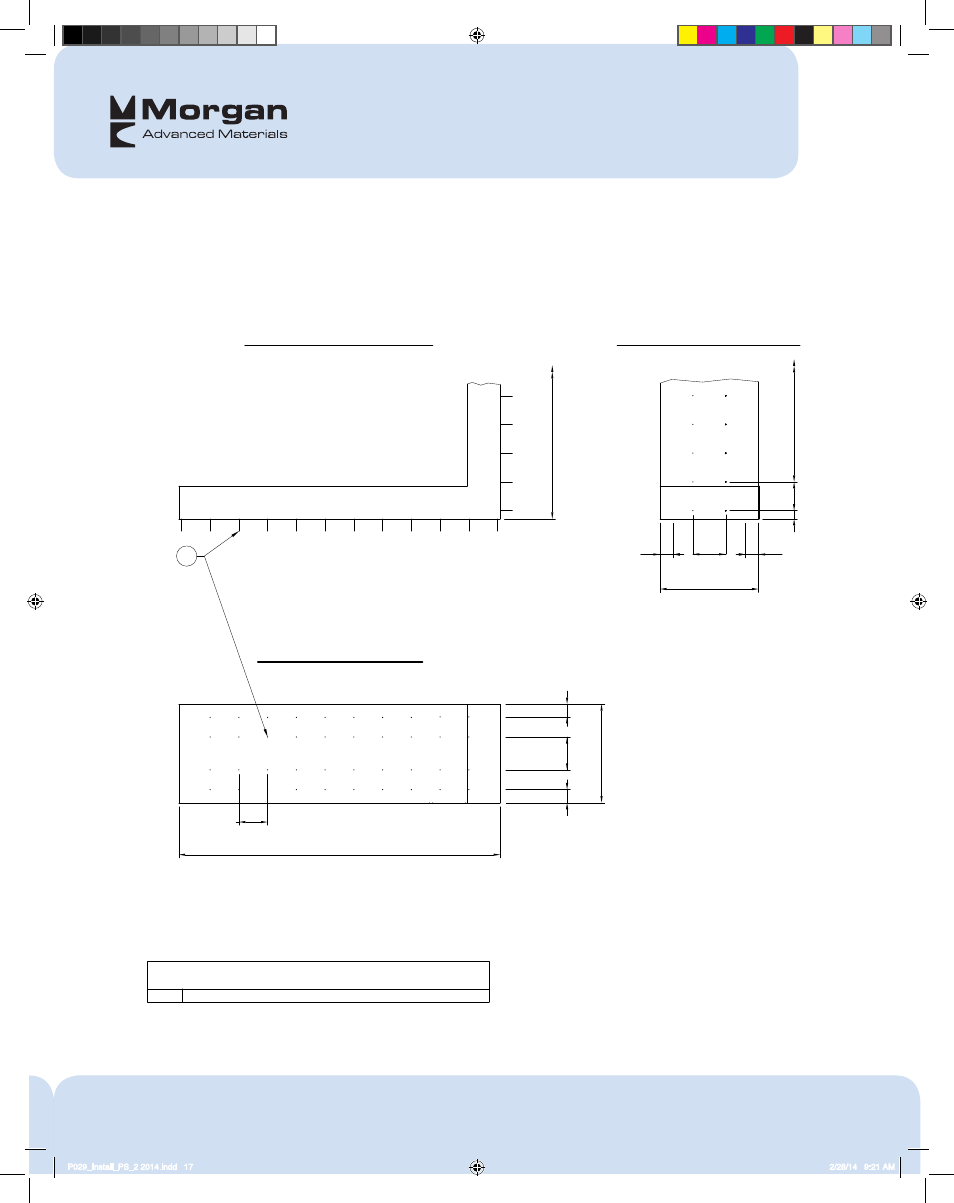

TYPICAL INSULATION PIN LAYOUT
SIDE ELEVATION
> 24" (610)
12" (305)
END ELEVATION
6" (152)
6" (152)
VARIES
CENTERS
(TYP
.)
3" (75)
VARIES
10 1/2" (267)
FROM
EDGE
6" (152)
FROM
EDGE
FROM EDGE
FROM EDGE
12" (305) CENTERS
CENTERS
1
