FloAire Pyroscat Enclosure - Manual (Page 23)

www.morganthermalceramics.com
Page 22 P029_02:2014
Fire Rated Enclosure
Installation Technique and Design
Advisory Manual
8
8
XL014-1
1
4
6 7
2
7 6
5

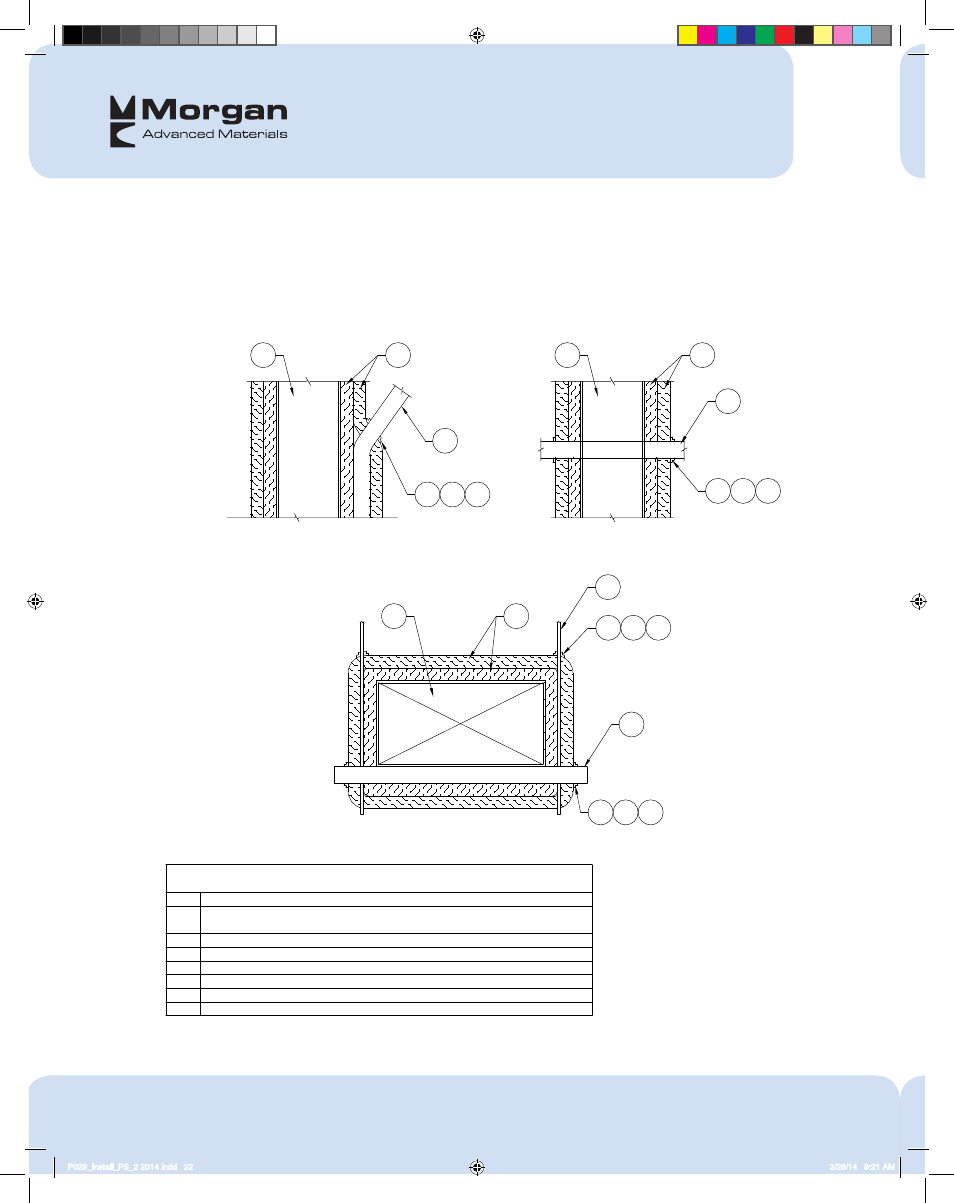

Approved through-penetration firestop system
One layer of XL Insulation for Air Ventilation Duct Enclosures
The integrity of the Thermal Ceramics duct systems is limited to the quality of the installation.
LEGEND
Non-Combustible Conduit or Pipe 3
Aluminum tape
Support hanger brackets
Filament tape
7
8
4
6
Duct 1
2
Commercial Kitchen Grease Duct Enclosure System
Air Ventilation Duct Enclosure System
1 2
7 6 8
3
6 8 7
3
1 2
Two layers of XL Insulation for Grease Duct Enclosures
Support hanger rods (min. 3/8") 5
Suggested Installation For Pipe, Conduit, Or Support Hanger
Penetration Of Wrap
