www.morganthermalceramics.com

Page 9

P029_02:2014

Fire Rated Enclosure

Installation Technique and Design

Advisory Manual

MINIMUM 16 GAGE STEEL TIE WIRE ON 8 INCH CENTERS

UL LISTED THROUGH

PENETRATION FIRESTOP

SEALANT PER F-C-7055

OR FRD V-28

MINIMUM 1 INCH COMPRESSION OR OVERLAP JOINT

MAXIMUM 1-HOUR RATED

FLOOR/CEILING ASSEMBLY

MINIMUM 1 INCH COMPRESSION

OR OVERLAP JOINT

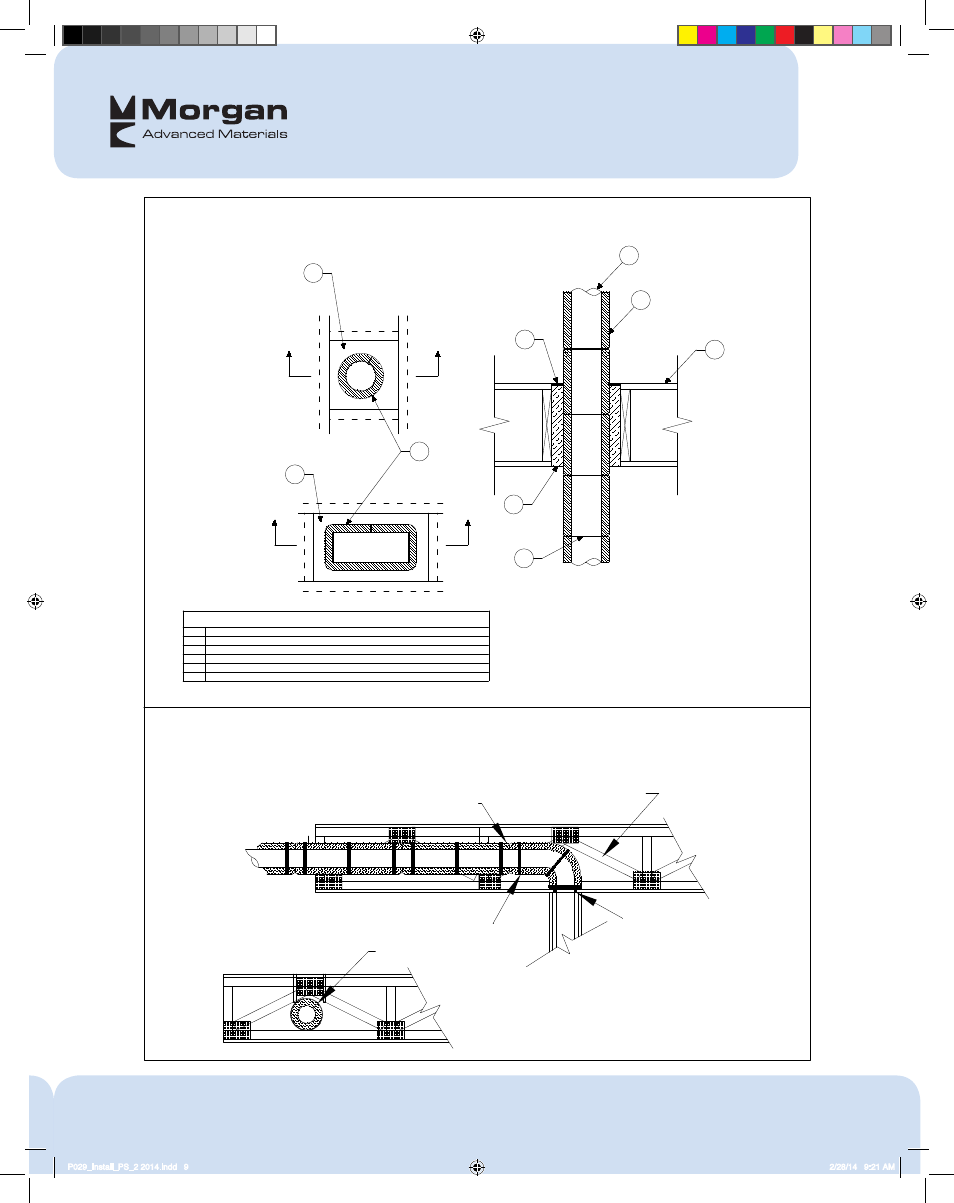

DRYERWRAP FOR 1-HOUR ENCLOSURE OF DRYER VENTS

The integrity of FireMaster duct systems is limited to the quality of the installation.

Minimum 16 Gage galvanized steel tie-wire installed on maximum 8" centers

FireMaster blanket (foil removed) packed into annular space (25% min. compression)

1-Hour UL Listed Floor/Ceiling Assembly

LEGEND

1

3B

4A

3A

2

FireMaster DryerWrap with 1" longitudinal and transverse compression or overlap joints

Firestop sealant per F-C-7055 (FireMaster Putty or approved alternative)

Maximum 4" Diameter, 30 Gage or Maximum 7" Diameter or 10x4" Rect, 26 Gage Duct

4B

UL Listings F-C-7055

ULC Listings FRD 28

UL Listings HNLJ.V-29

TESTED ASSEMBLY; EQUIVALENT TO 1-HR F AND T-RATING

A

A

SECTION A-A

1

4B

2

3A

3B

3A

4B

A

A

4B

4A
