Fire Rated Enclosure
Installation Technique and Design
Advisory Manual
The integrity of the duct wrap insulation product is limited to the quality of the installation
LEGEND
XL002-4

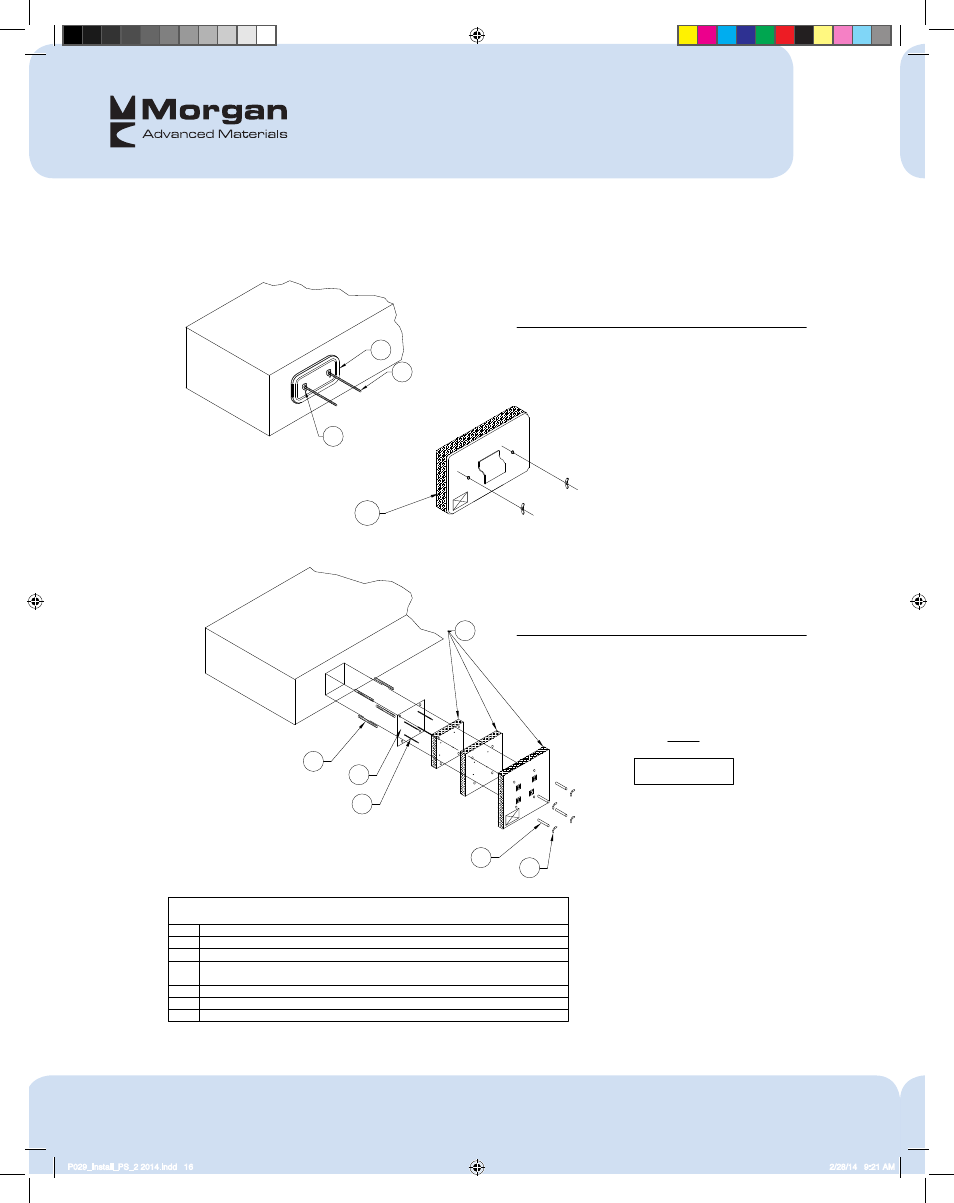

Access Door Systems
Commercial Kitchen Grease Duct Enclosure System
FastDoor XL Insulation Cover
NOTE: Available from Thermal Ceramics
FireMaster Distributors.
Spool Pieces for Threaded Rods 5
6
2
3
4
1 Factory Door by DuctMate (F2); or CHG (Hi-Temp); or code compliant field built door
Installation Pins with Speed Clips.
FastDoor XL; Factory Built Single Layer Insulation Cover (UL Listing G18)
5/16" All Thread Rods.
Three Layers of FireMaster FastWrap XL Blanket with Minimum 1" (25) Overlaps
7
Wing Nuts and Washers
and All Edges Sealed with Aluminum Tape.
FireMaster Field Fabricated Door System
Note:
Label Required
"Access Door"
Do Not Obstruct
4
2
1
3
5
6
1
2
6
7
